Vaulted ceiling beams with laminate wood

November 9, 2021 | By Jenna Sue DIY Projects, Hacienda Hideaway

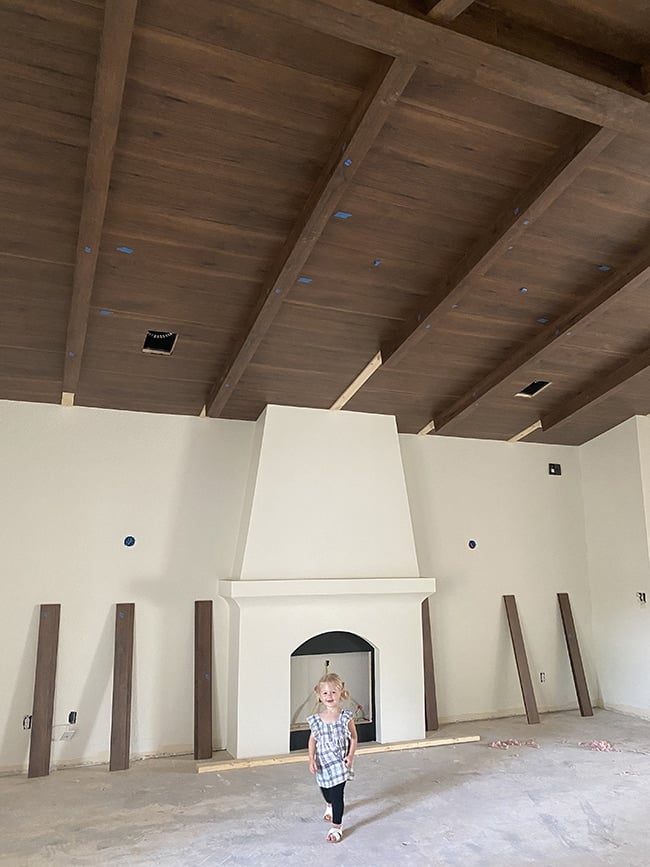

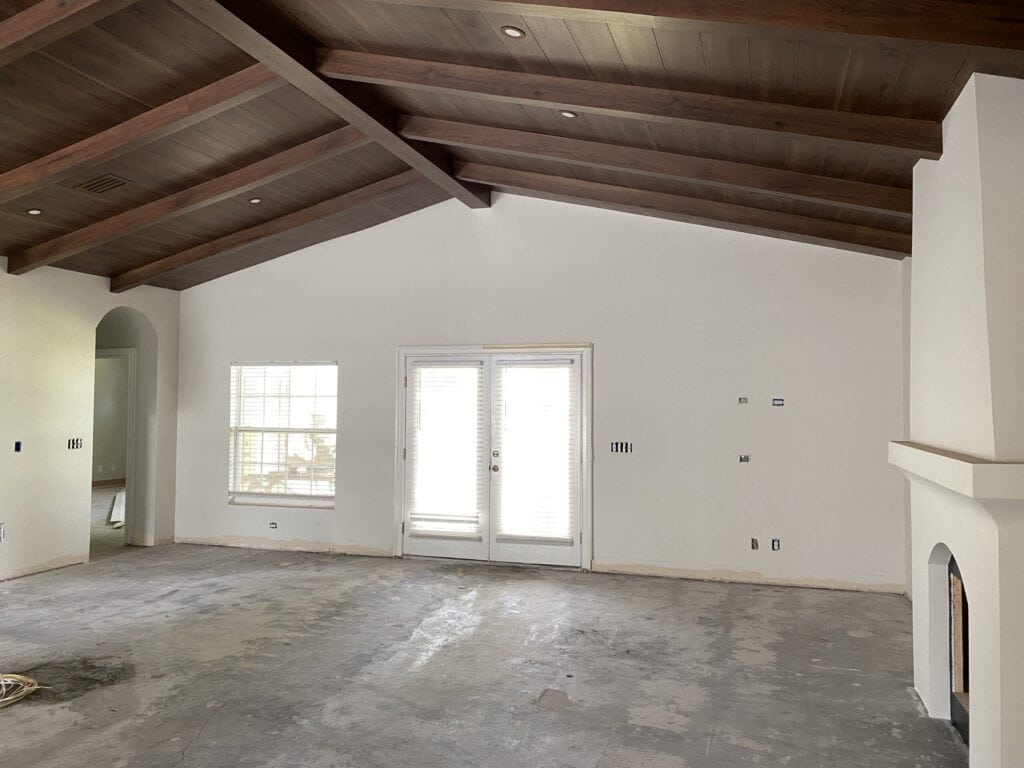

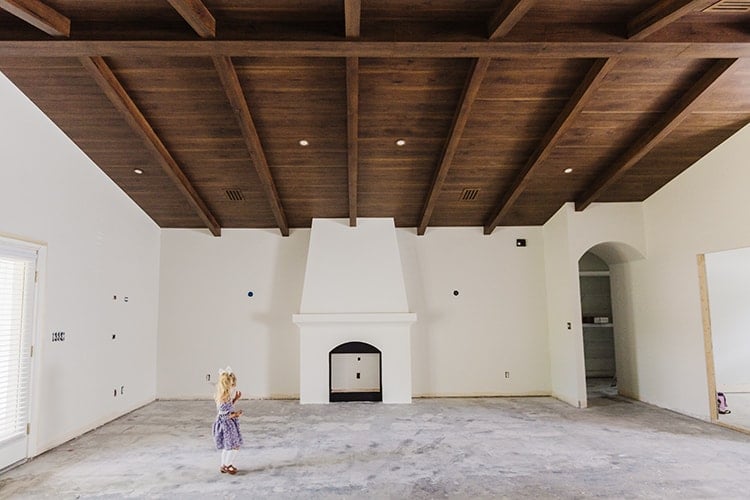

Still can’t believe we pulled off these DIY ceiling beams with laminate wood planks!

how to install a DIY beam ceiling with laminate planks

Before we jump into the details of our longest and most ambitious DIY of all time, here’s a few stats to help illustrate the scope of work involved:

  • 35 full days of physical labor
  • 5,000+ finish nails
  • 591 laminate floor boards
  • 480+ table saw rips
  • 510+ miter saw cuts
  • 20+ tubes of liquid nails
  • 1 exhausted, but proud DIYer

To be fair, we covered an entire vaulted great room ceiling the size of a small house. I’d recommend starting somewhere smaller, like a bathroom. This DIY isn’t for the faint of heart, but the payoff is immense.

Table of Contents

  • Materials
  • Tools
  • Why use laminate wood flooring?
  • Dark Wood Ceiling Beam Inspiration
  • Before photos
  • How to install wood beams on a vaulted ceiling
  • Step 1: Measure and Plan
  • Step 2: Build and install the center beam
  • Step 3: Add furring strips and 2×4 blocking
  • Step 4: Attach ceiling planks
  • Step 5: Build and attach the smaller beams
  • Step 6: Reinstall HVAC vents and lights
  • DIY Wood Beam Vaulted Ceiling Reveal

Materials

  • Laminate flooring
  • 2×4’s
  • Furring strips
  • Wood screws
  • Finish nails
  • Liquid nails
  • Drywall anchors
  • Wood glue
  • Stain touch up pens

Tools

  • Miter saw/chop saw
  • Table Saw
  • Nail gun (cordless will make your life a lot easier!)
  • Drill
  • Jigsaw or Dremel multi-max
  • Laser measure
  • Laser level (or a chalk line)
  • Orbital sander
  • Hand file
  • Stud finder
  • Angle finder
  • Clamps
  • Scaffolding (rent or buy)

I’ve grouped this DIY wood beam ceiling tutorial into several steps—click on any step to jump to that section:

How to install laminate wood beams on a vaulted ceiling:

  1. Measure and Plan

  2. Build and attach the large center beam

  3. Attach ceiling planks

  4. Build and install the small beams

  5. Reinstall HVAC vents and lights

Before + After photos

Total Cost

First, the most important question answered:

Why use laminate wood flooring?

I previously explained why we chose to use laminate flooring instead of wood or pre-fab beams in this post, but here’s a quick summary:

  • Laminate is significantly more affordable (ours was only $1.59/sf when we purchased)
  • Laminate is light weight and easy to work with
  • We found laminate in an 8″ width, which is the size we wanted for our largest beam
  • It’s pre-finished, so we skip the (huge) extra step of staining every board
laminate flooring ceiling beams

Custom pre-fabricated beams (or faux beams) would be the only way to avoid seams, and those are VERY pricey. Using the cheapest wood option, the beams alone would have cost us around $9500 from Architectural Depot—and then we’d STILL have to find matching wood for the planks, stain and install everything ourselves.

Using laminate was an unknown risk, but we had to take the chance and trust that it would turn out well. (Spoiler alert: it did!)

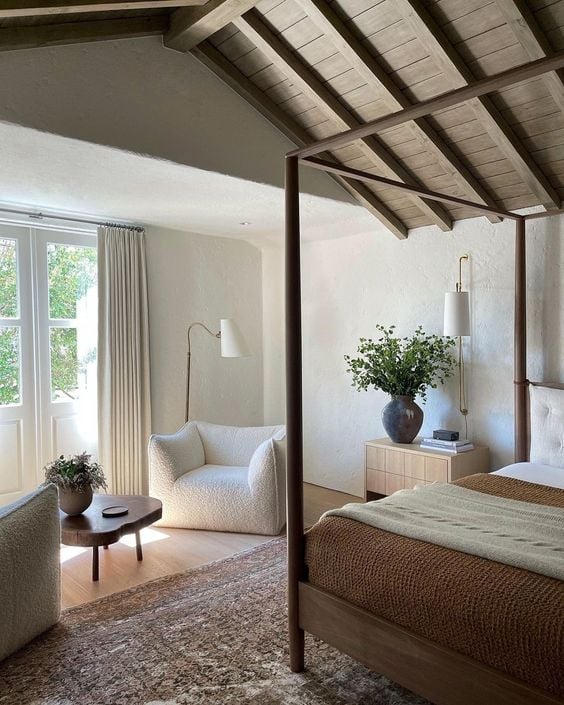

Dark Wood Ceiling Beam Inspiration

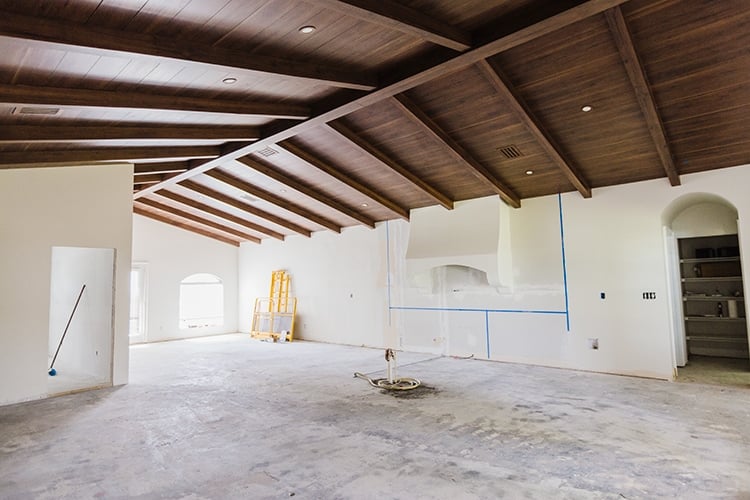

Traditional Spanish/Mediterranean style dark wood beam and plank ceiling (inspiration via Amber Interiors):

Before photos

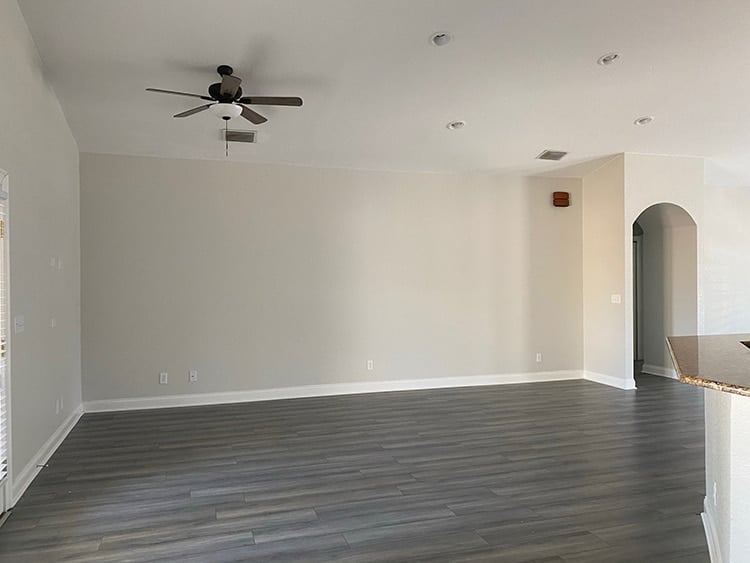

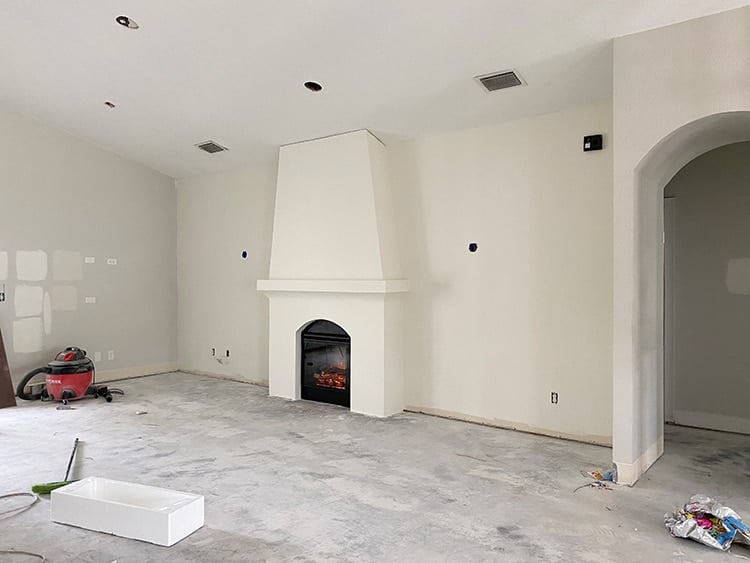

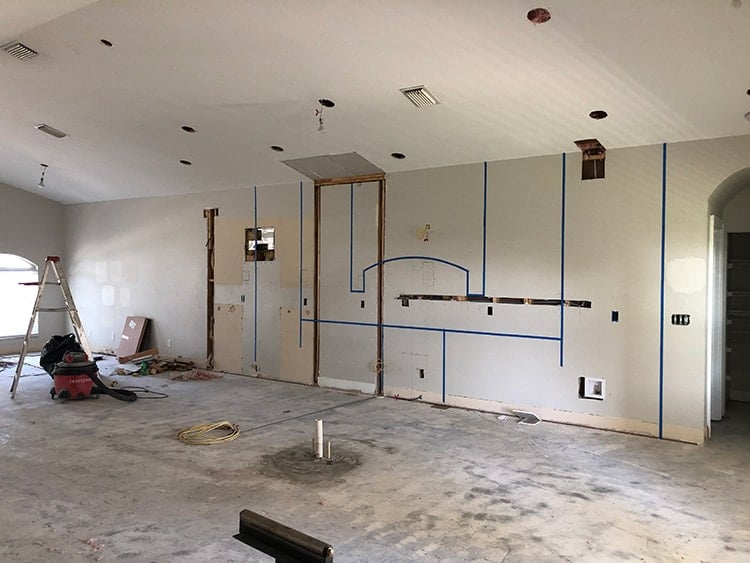

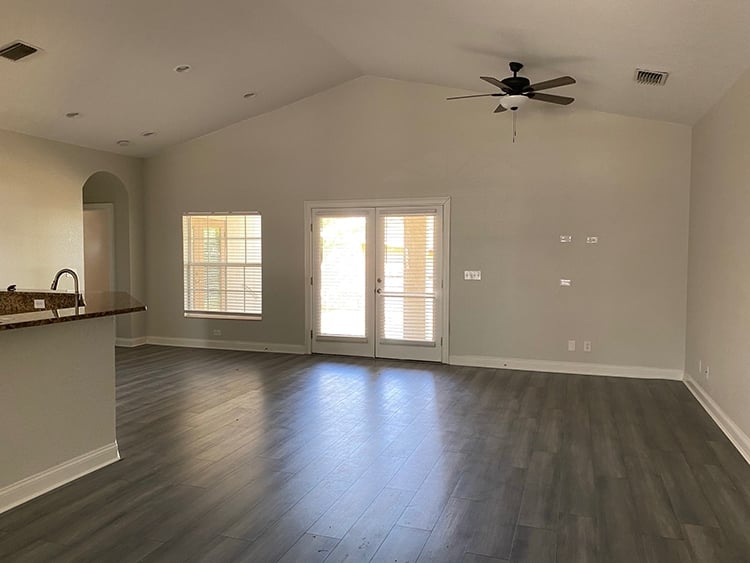

living room before

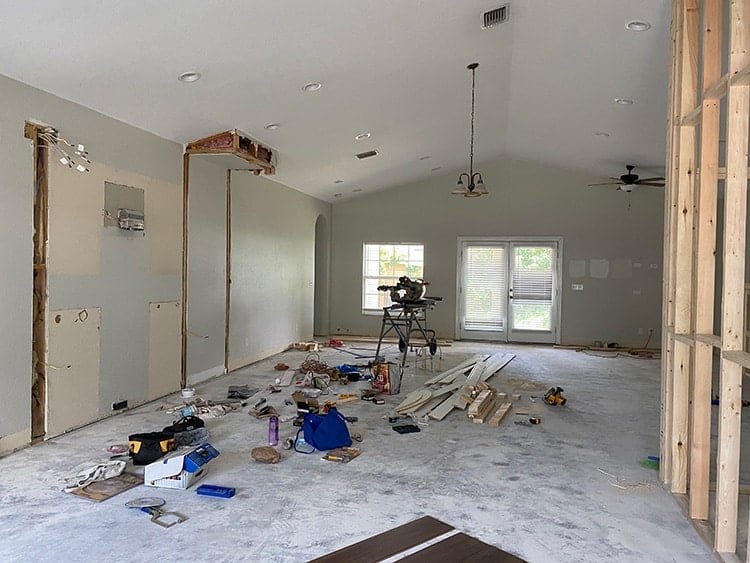

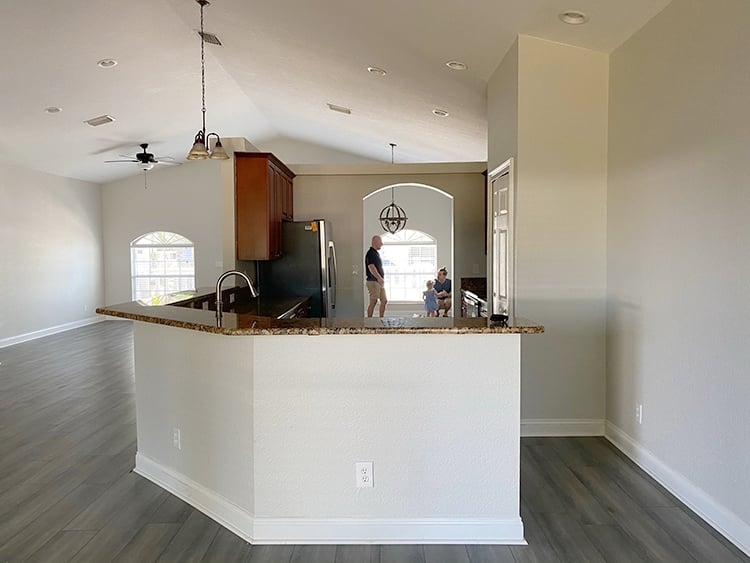

Our great room (dining room, kitchen, living room) is around 850 sq ft in total, but the vaulted ceiling adds more surface area. We ordered 1800 sq ft of laminate to be safe, and ended up with three unused boxes (plus several more unused boards).

living room with vaulted ceiling before

I’m missing a photo of the space after the bedroom addition and range hood was built, but here’s the future kitchen area:

kitchen with vaulted ceiling

How to install wood beams on a vaulted ceiling

Step 1: Measure and Plan

This is an important step you don’t want to rush through. We carefully measured (using our laser measurer) and mocked up the room in the free Homestyler program. This allowed us to get a good visual of the entire space.

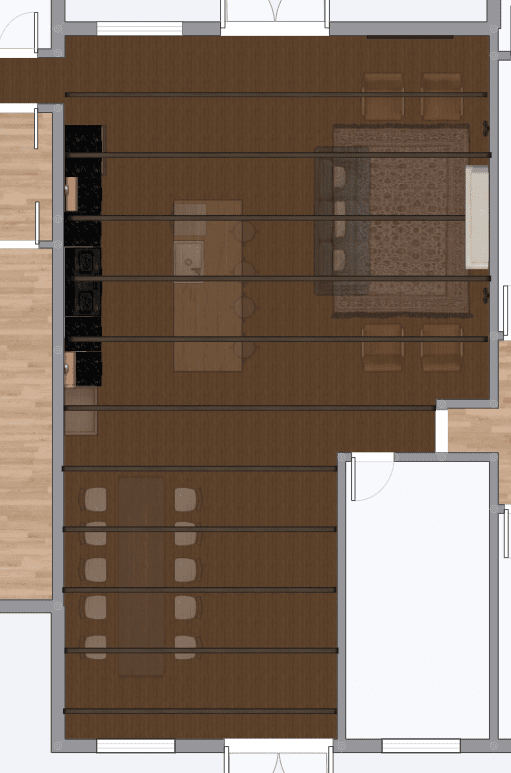

homestyler living room plan

There were two major considerations when planning the beam layout:

  • Location of the fireplace and range hood
  • Length of laminate boards

We wanted the beams to be centered on both the fireplace and the range hood which are on opposite walls and intersect different beams.

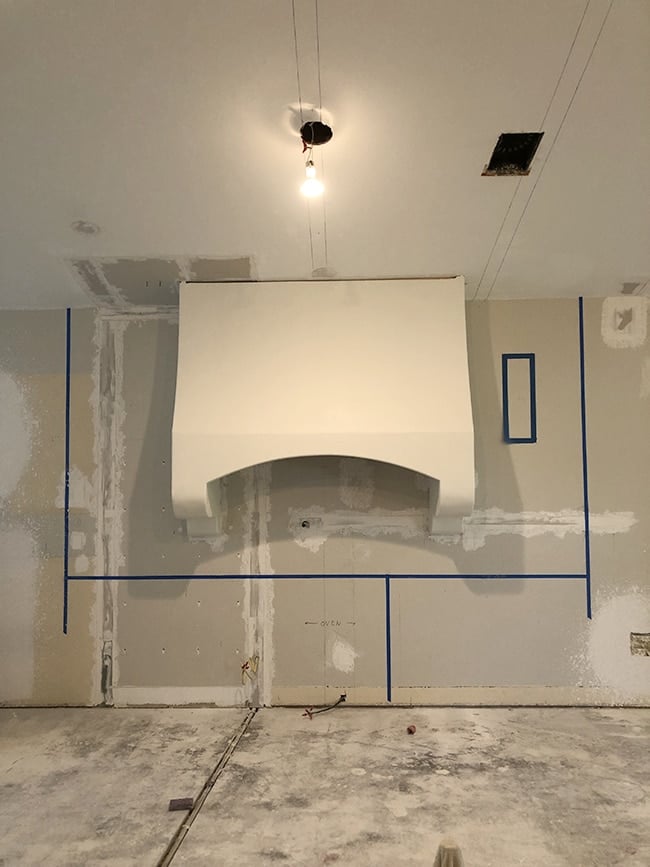

diy range hood kitchen
marking the beam locations

In order for both to be centered, the spacing between each beam would need to be 3’5″, which was right in line with the look we were going for. The laminate boards were only 4′ long, and we’d be using those for the planks, so the space between beams couldn’t be any more than 4′ anyway.

how to install wood beams on a vaulted ceiling

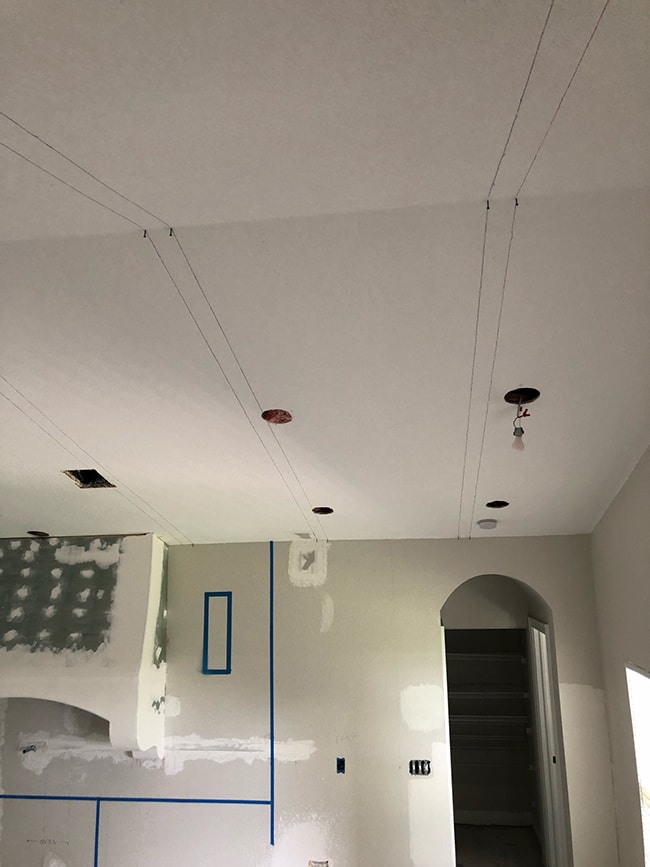

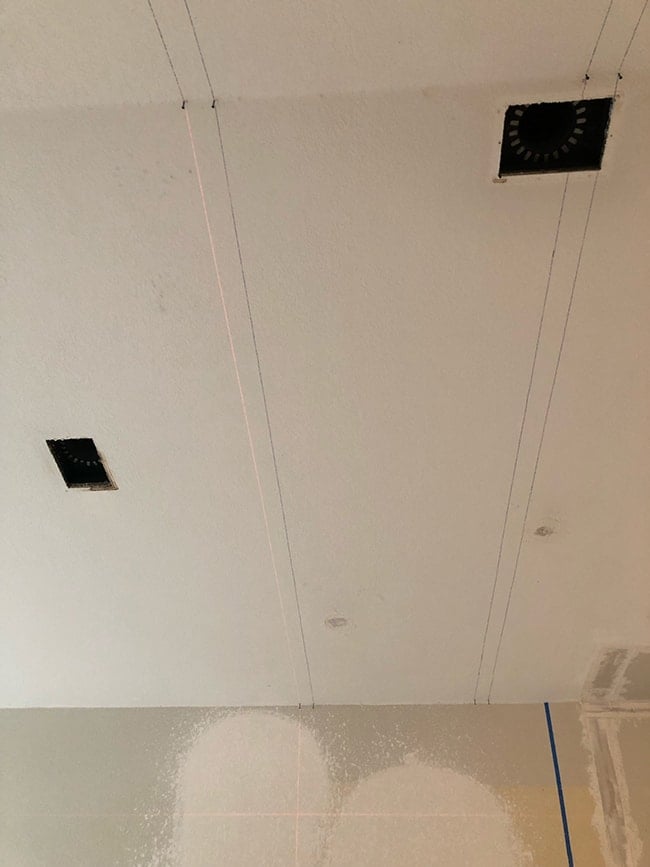

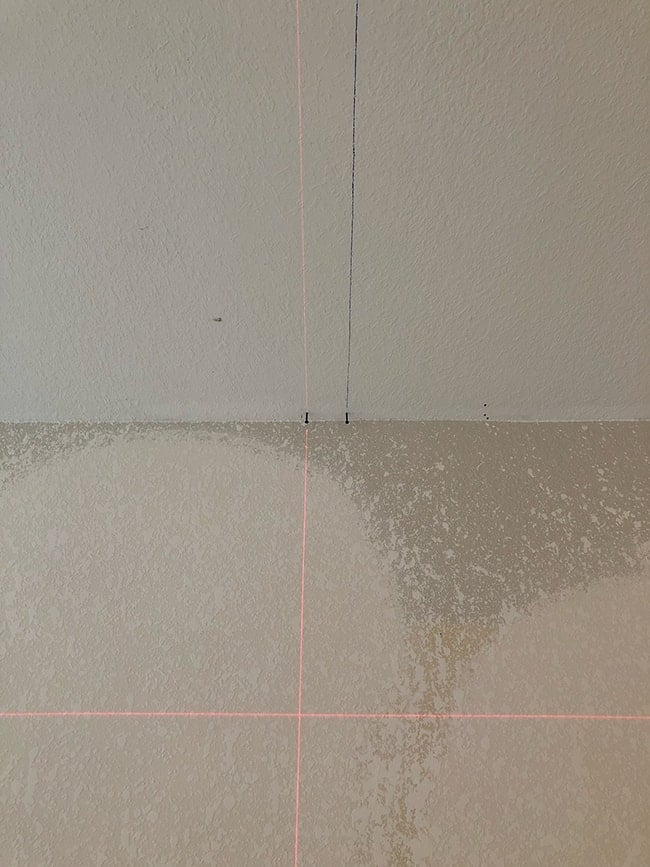

To mark the beam locations onto the ceiling, I attached a screw at both the intersection of the wall/ceiling and the apex of the ceiling at the exact same interval. I then used our laser level to connect the two and trace over it with a pen.

using a laser level to mark lines on a ceiling

This ensured the beam spacing stayed consistent and the beams would match up from one side of the room to the other.

using a laser level to mark lines on a ceiling

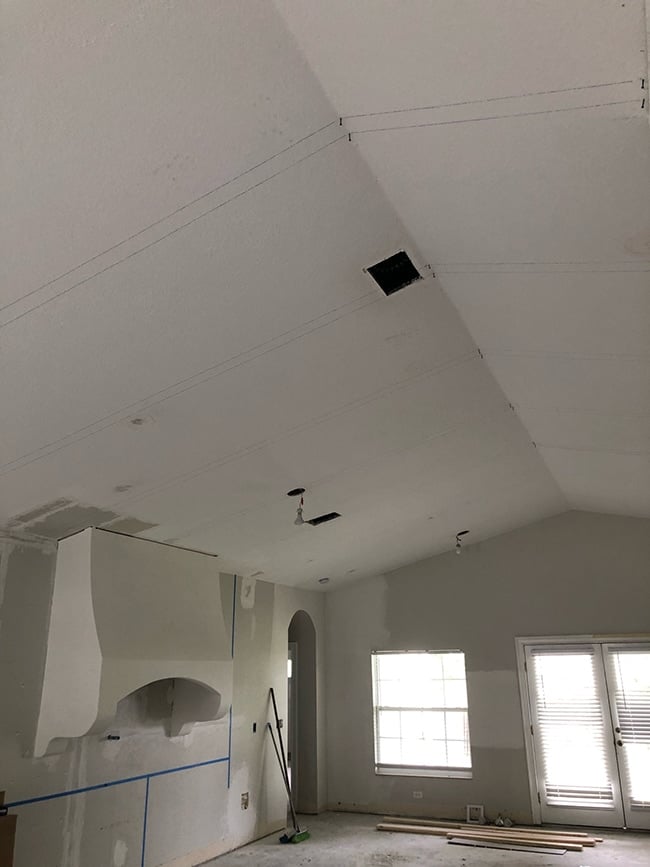

I used the same method to draw a straight line parallel to the peak of the ceiling, where the large center beam would be installed.

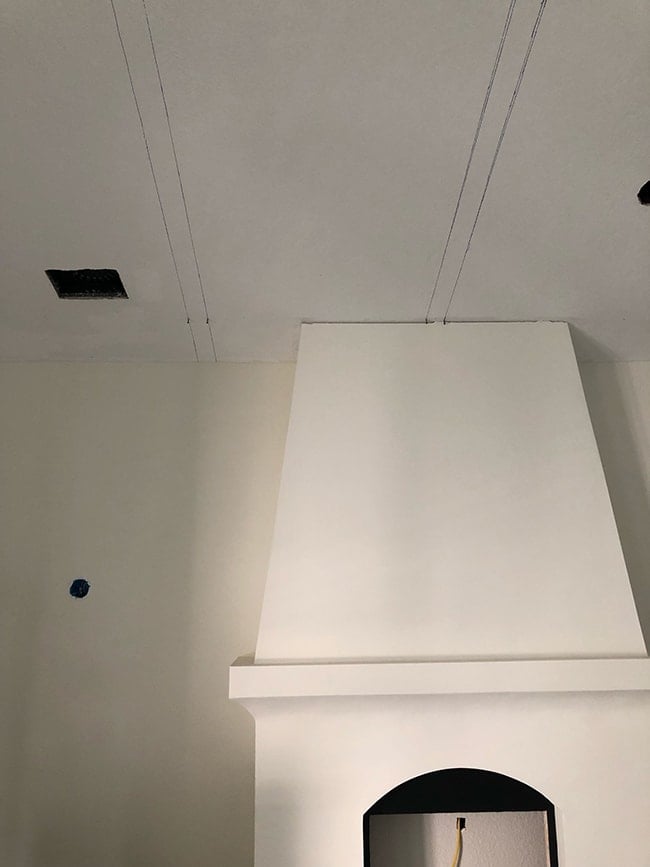

marking beam locations on a vaulted ceiling

Step 2: Build and install the center beam

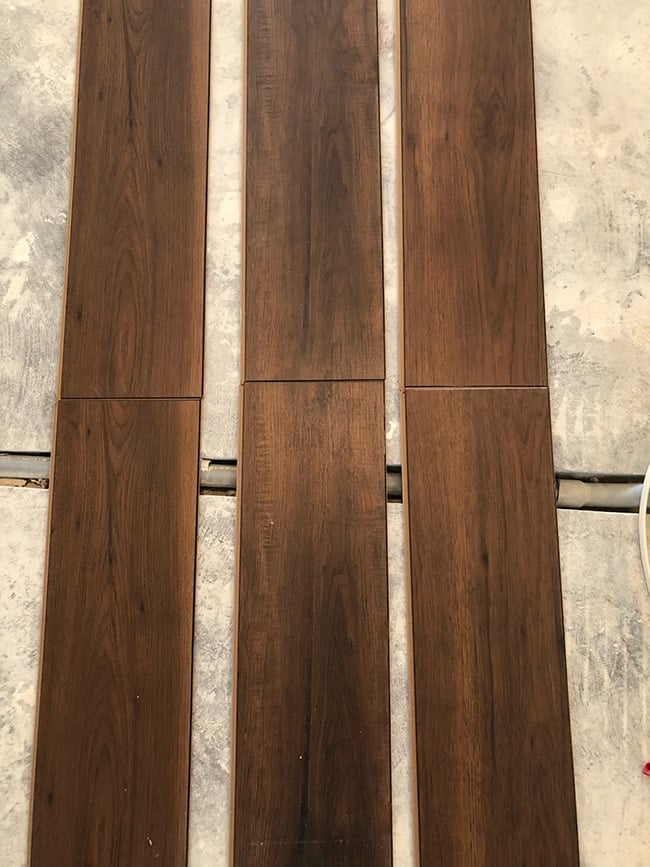

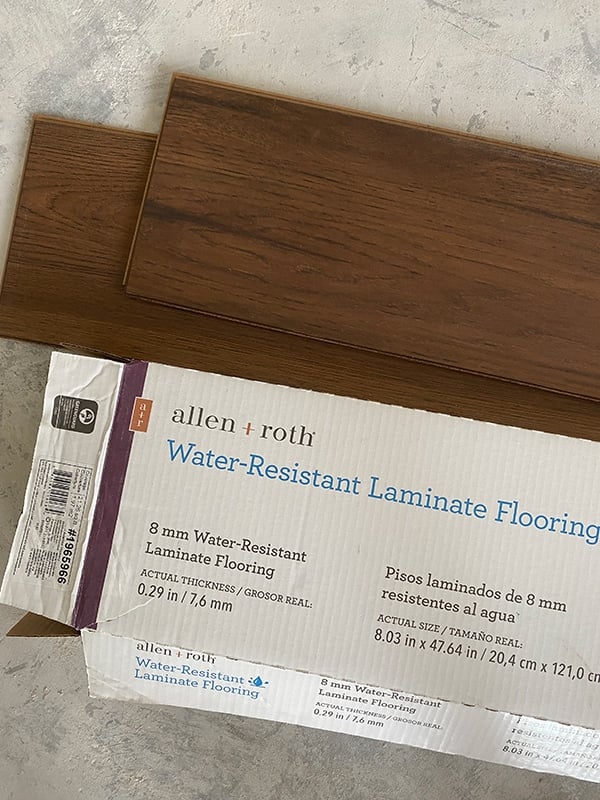

First, I sorted through several boxes of flooring to find pieces that matched up end to end. We were pleasantly surprised to discover that the grain matched up with other boards on most of the planks, which really helps them to look seamless once they’re installed.

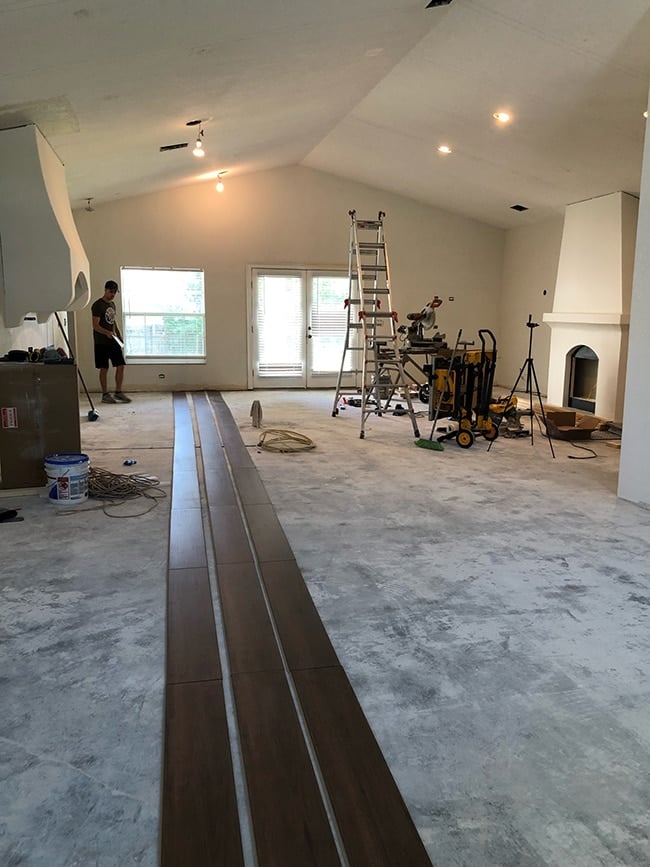

dark laminate wood planks
dark laminate wood planks in a vaulted living room

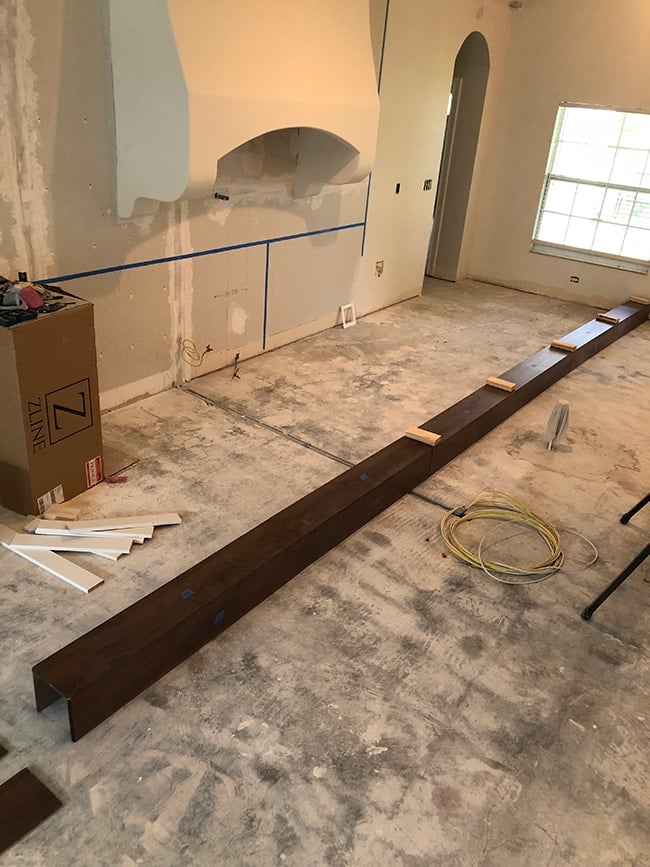

With the runs for all three sides laid out, it was time to build each 4′ section. I set our table saw to 45º to miter the bottom edges for a clean joint where each board would meet.

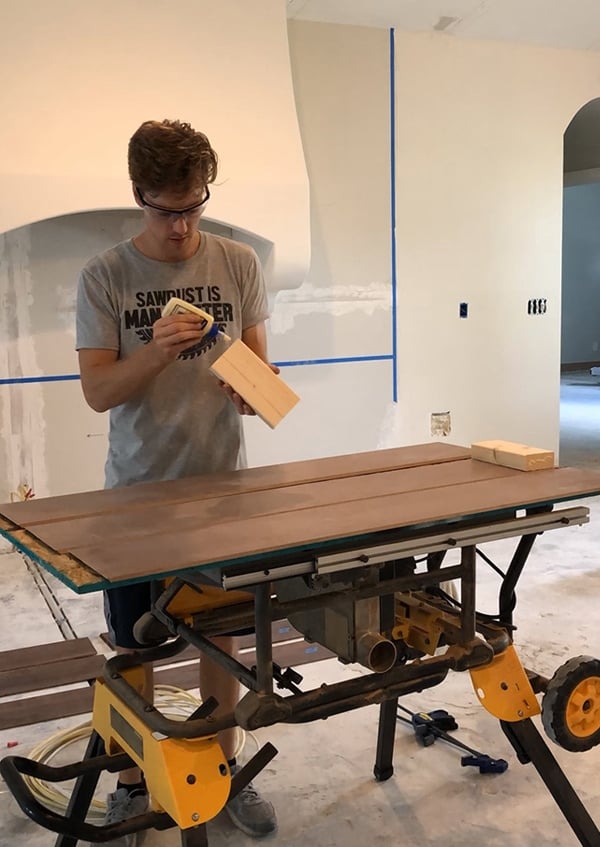

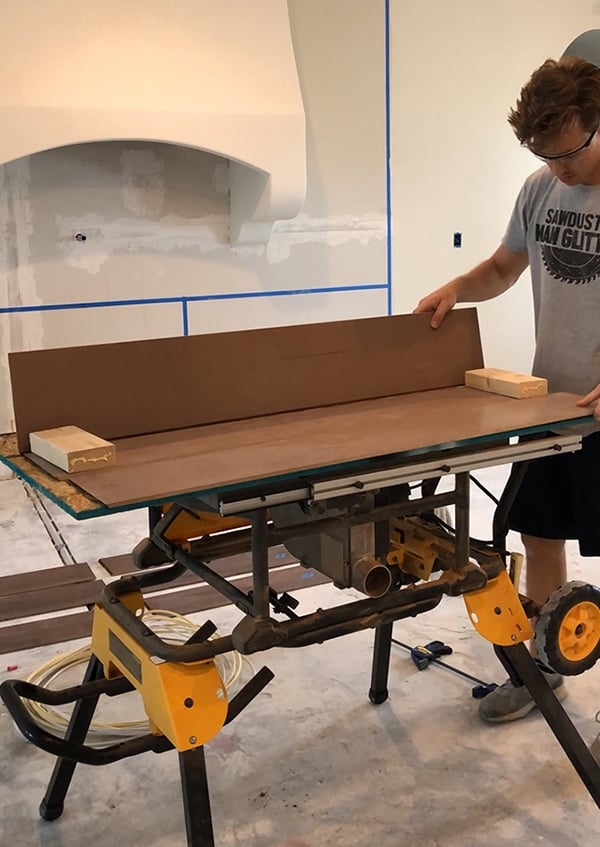

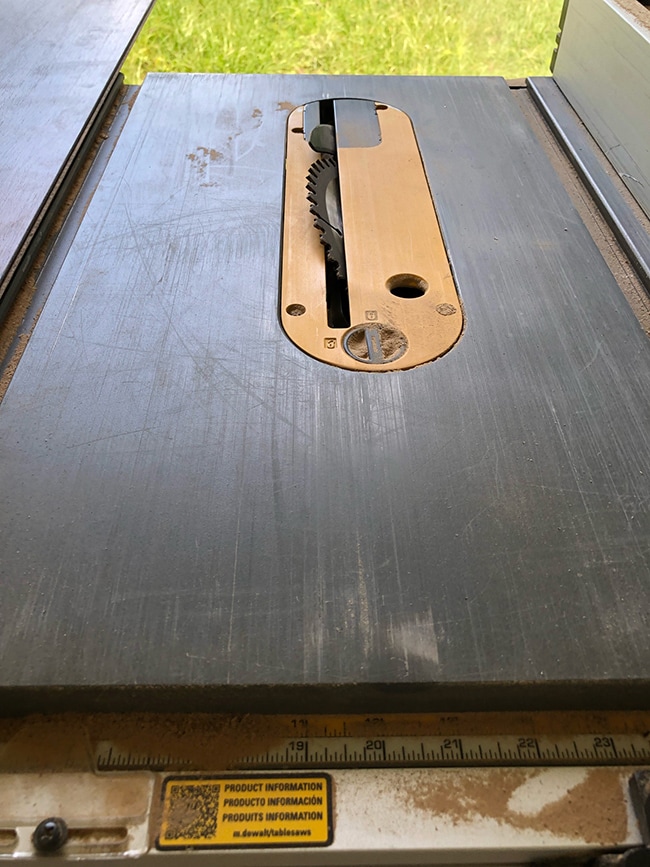

table saw

For the sides of each beam (that would attach to the next beam) we decided to miter those edges as well, assuming that would give us a cleaner and more seamless joint. Spoiler alert: it didn’t work.

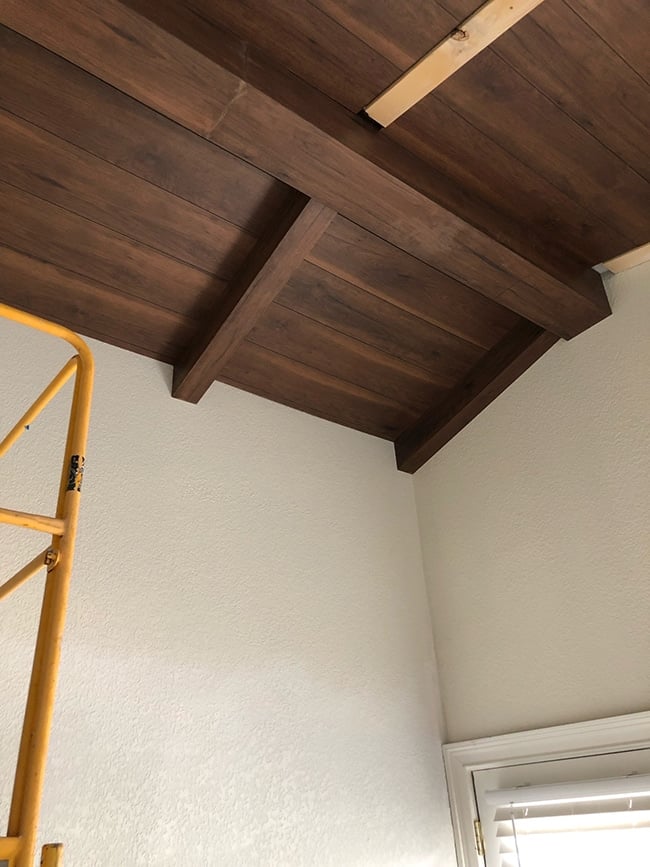

diy dark wood beams closeup

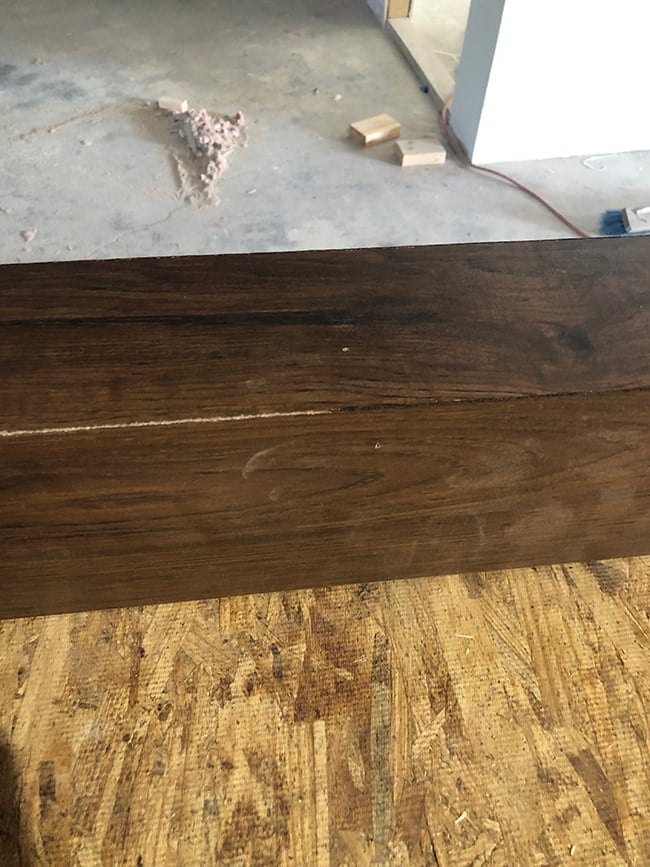

This was a combination of user error (my bad) and the very very difficult task of connecting three pieces together on both ends while trusting the table saw to make straight cuts on the short end of the board. To fix my mistakes, I used an orbital sander to shape the boards until they fit together without a gap.

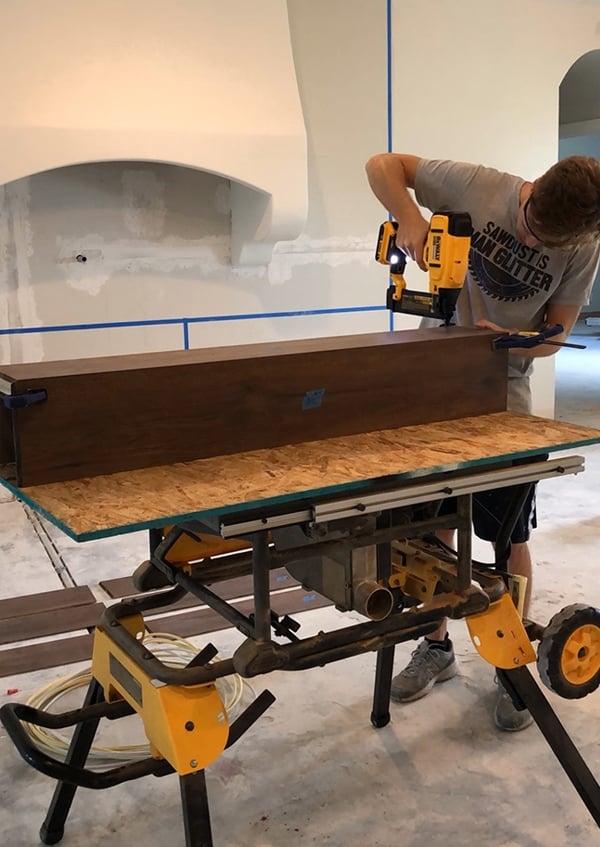

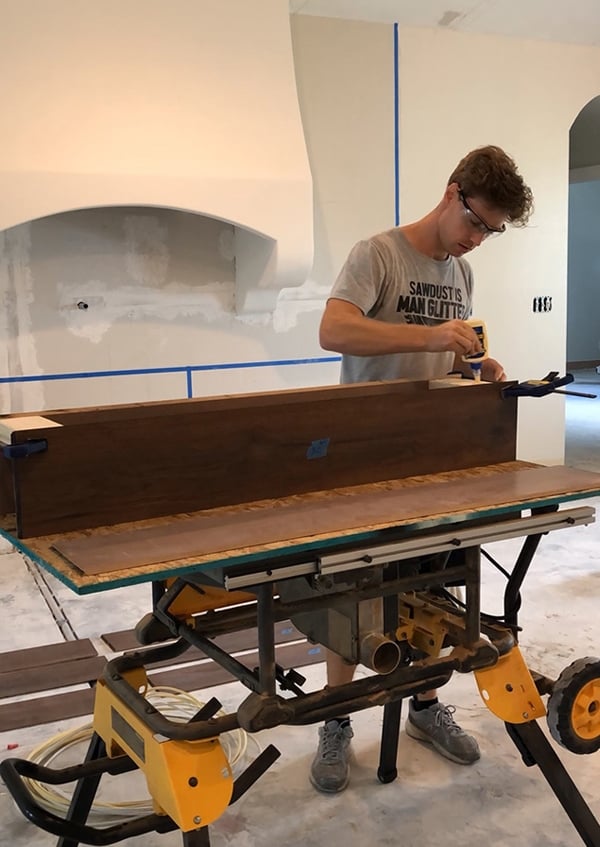

To assemble each section of beam, I cut a 2×4 into three identical blocks and attached one on each end, plus one in the middle (using wood glue, clamps and a finish nailer).

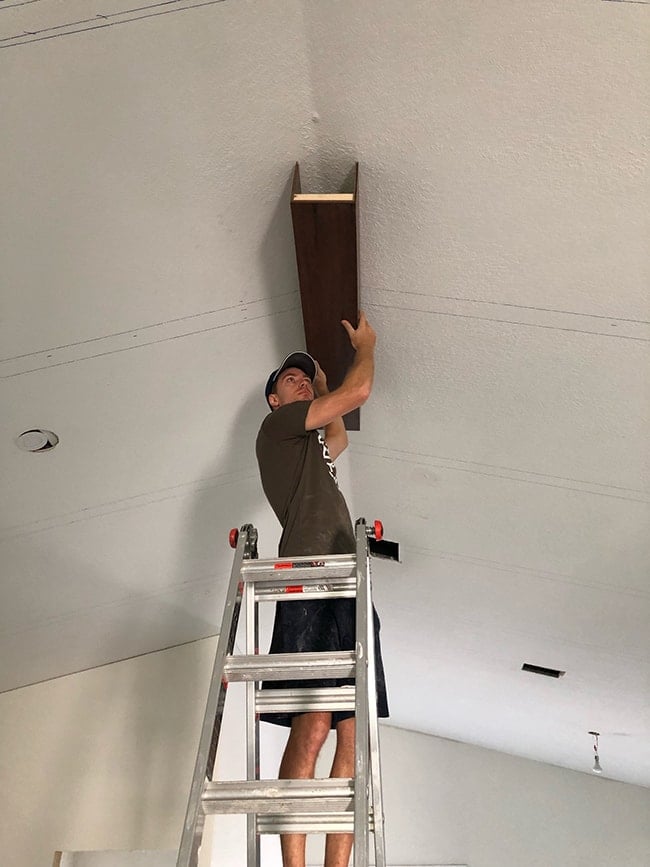

Quick test fit:

test fitting a diy ceiling beam on a vaulted ceiling

For the ceiling portion, I cut additional 2×4 blocks (to the exact same size as the previous blocks) which the top of the beams would be attached to at every seam.

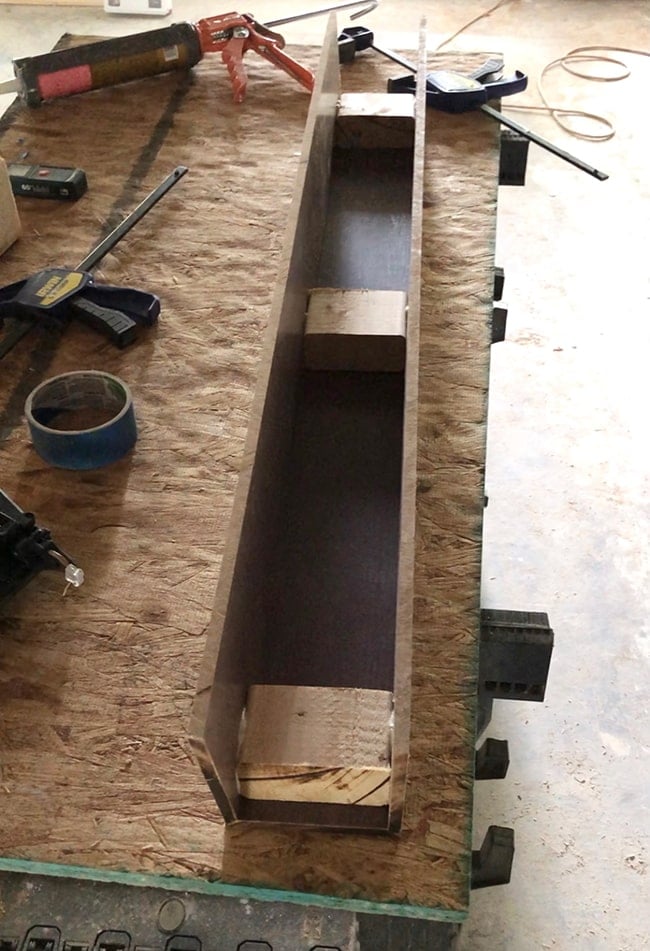

assembling a diy wood beam using laminate planks

Using the line I drew parallel to the peak of the ceiling with our laser level, I made sure the 2×4 block was lined up exactly and screwed it in.

attaching blocking to a vaulted ceiling

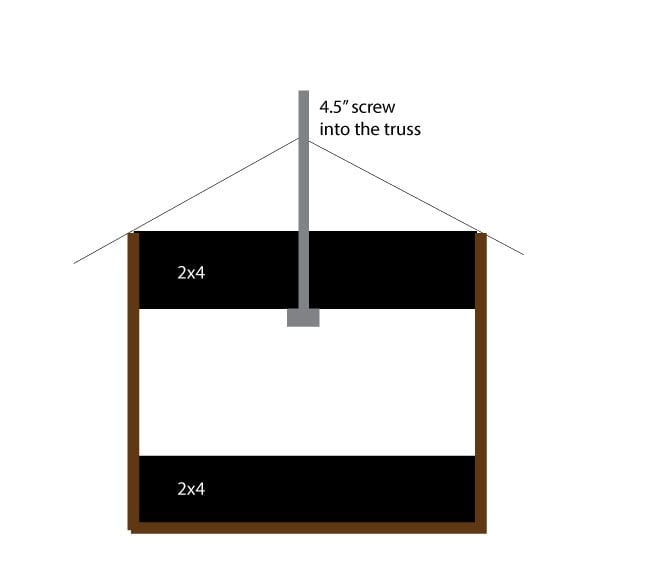

I used these long 4 ½” structural screws to reach the truss along the peak. Here’s a cross section of the assembly:

diy wood beam diagram

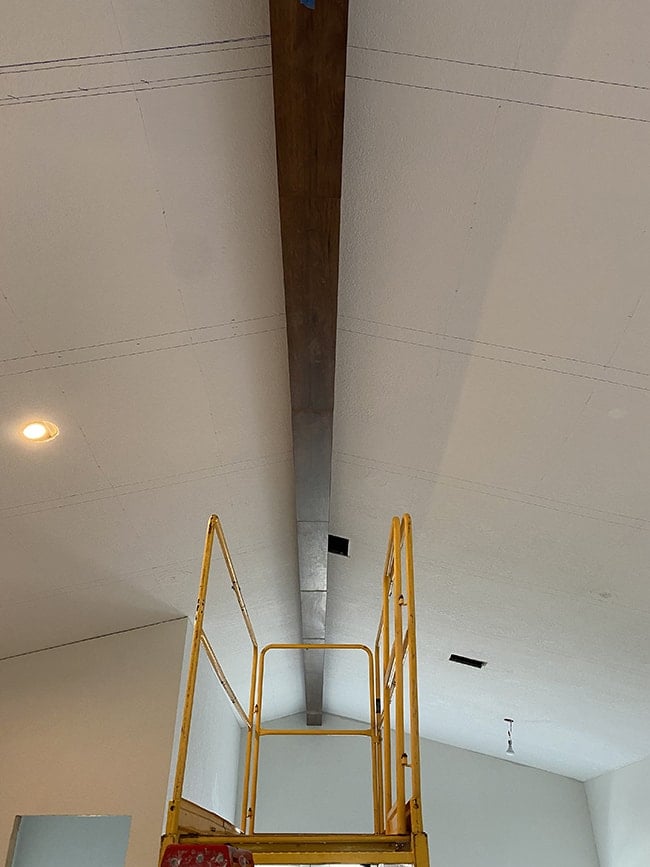

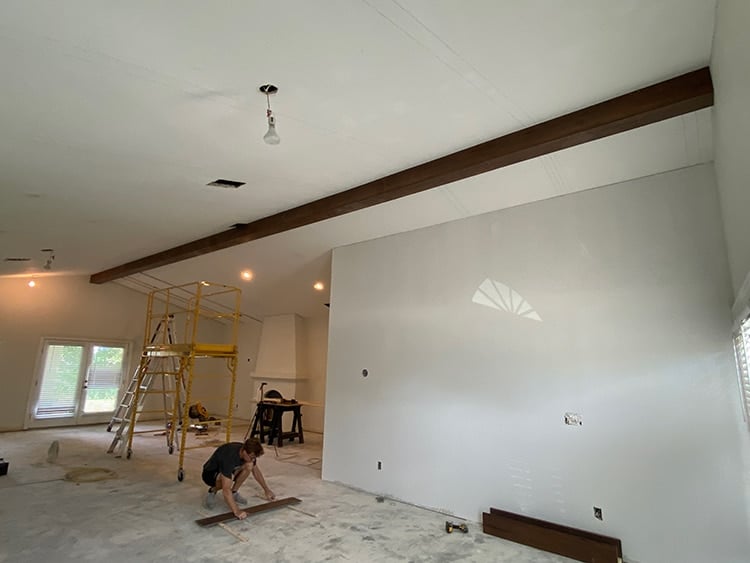

First beam up!

diy wood beam ceiling

We initially thought we would use finishing nails to attach the beams to the blocking, but because of the angle of the ceiling we didn’t have enough room to drive them in properly—so we ended up using screws instead. The ceiling boards would end up covering about an inch of the top of the beam so we didn’t have to worry about patching all the holes.

diy wood beam on a vaulted ceiling

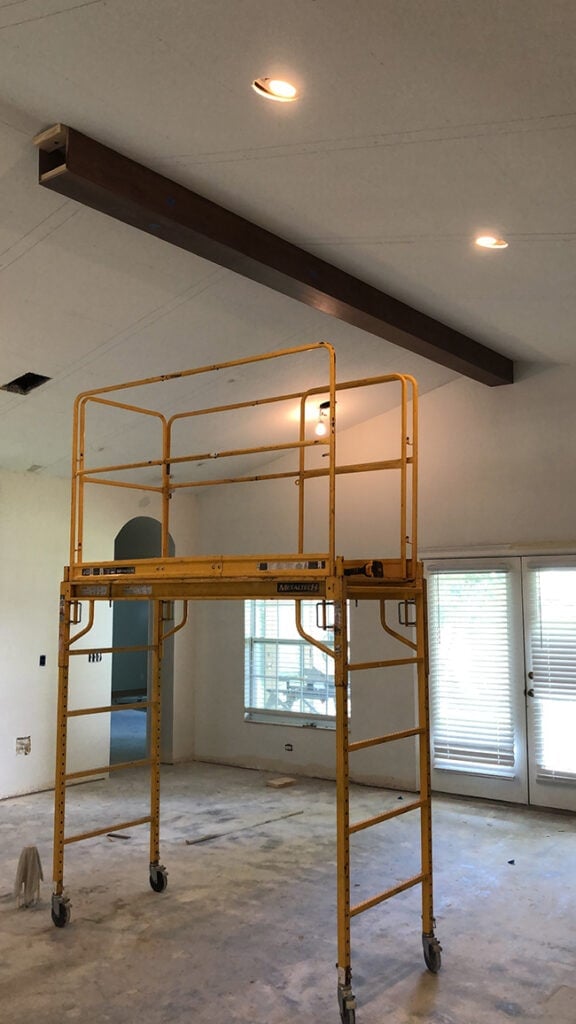

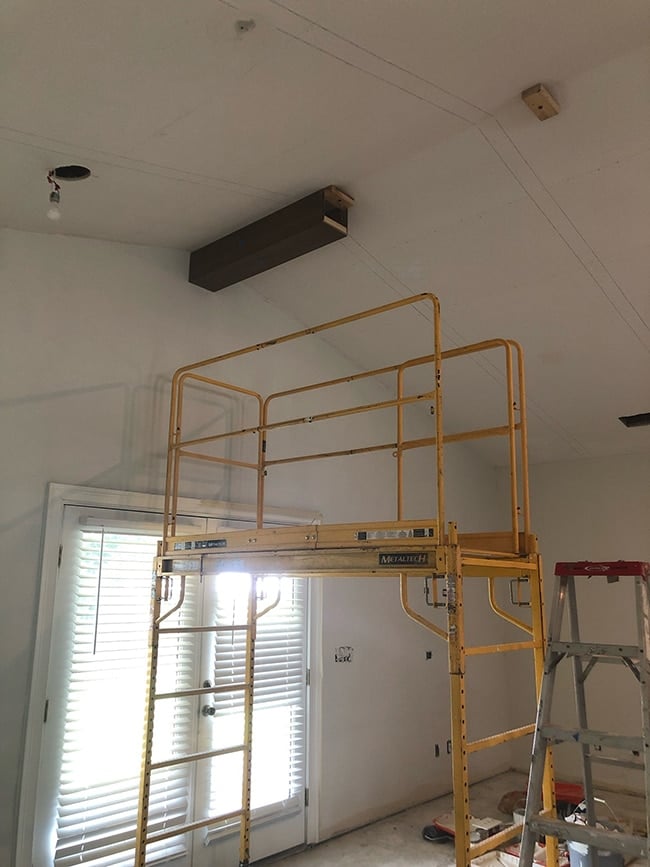

We rented scaffolding from Home Depot, and after 3 weeks and $532, realized we had already paid more than new scaffolding would have cost. So we returned it and bought our own for $462 to finish the install—lesson learned!

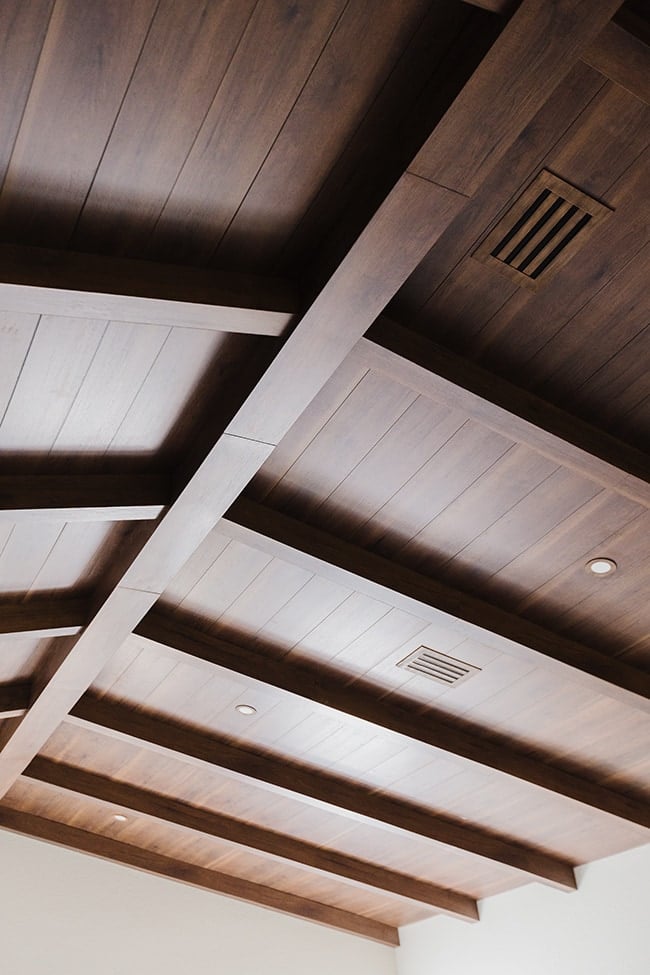

diy wood beam ceiling closeup

This big beam was a bit tricky and a two-person job. We had to make sure it lined up with the previous beam and stayed level, while gluing and pre-drilling each screw.

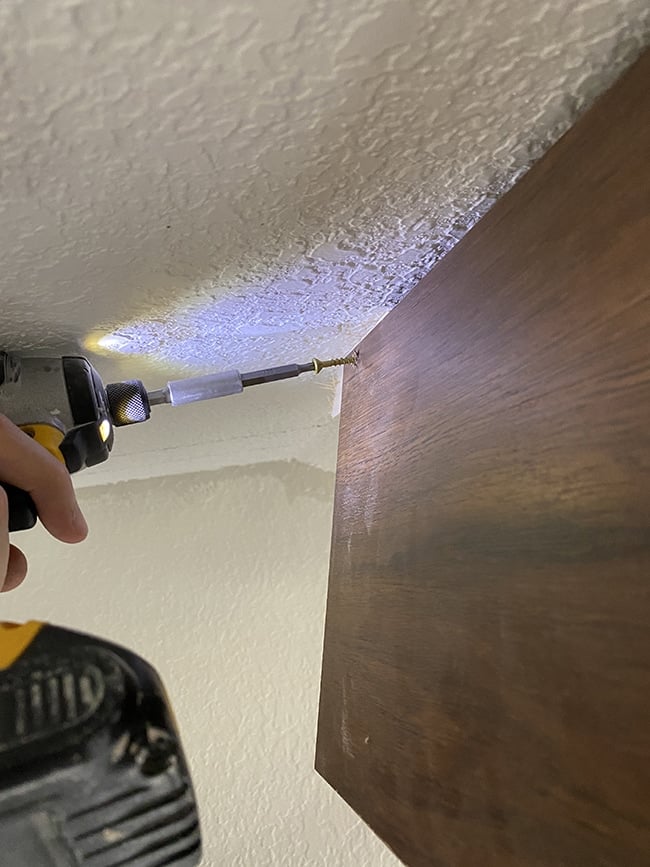

screwing a beam into a vaulted ceiling

As it turns out, using miter cuts on the short ends was not the best idea—see below.

how to build wood beams for your ceiling

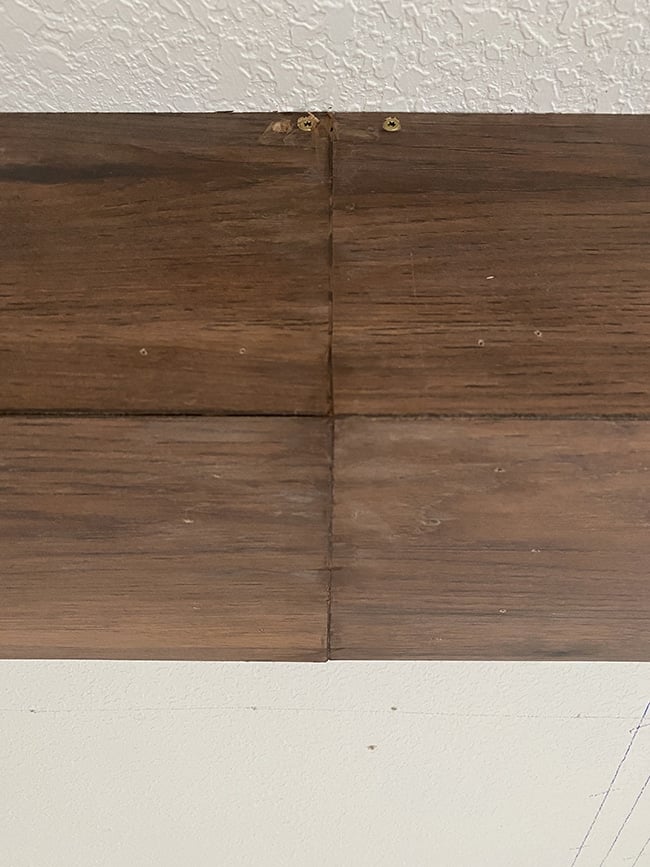

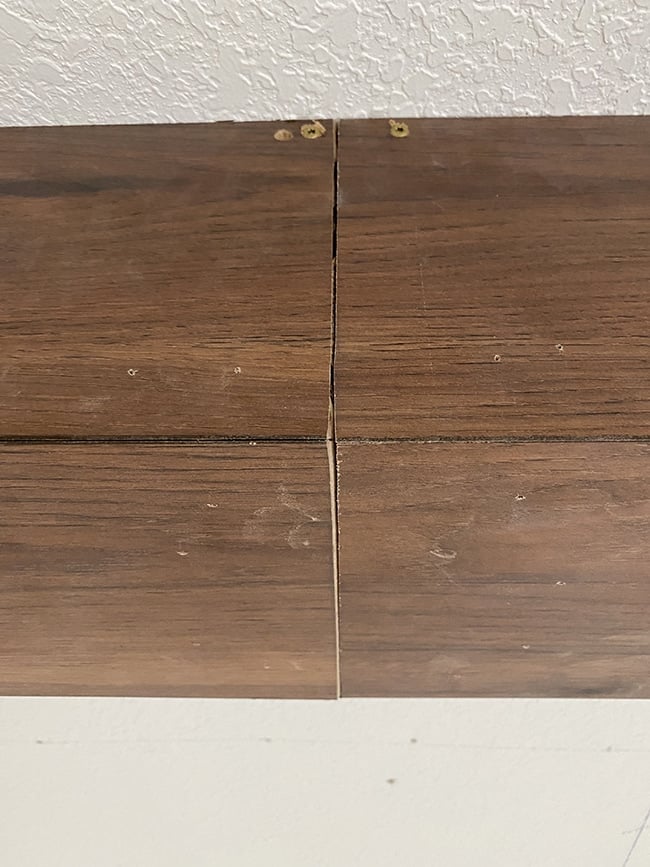

Wood putty and wood stain pens helped to conceal the gaps, but they’re still visible in the right lighting.

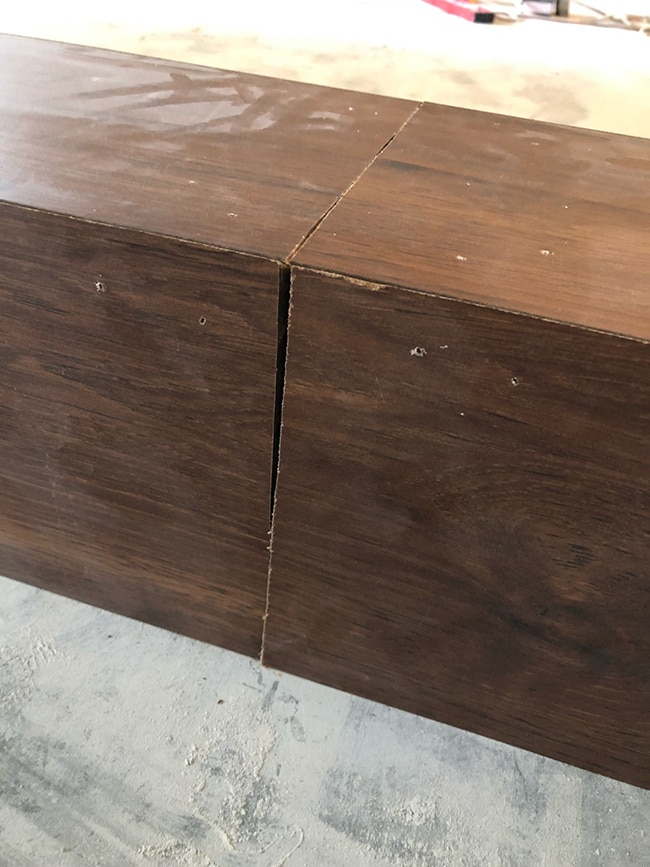

wood beam seam closeup
diy custom wood beams

We had assumed the seams would be visible and considered hiding them with beam straps, but decided in the end to leave them off for a cleaner look overall.

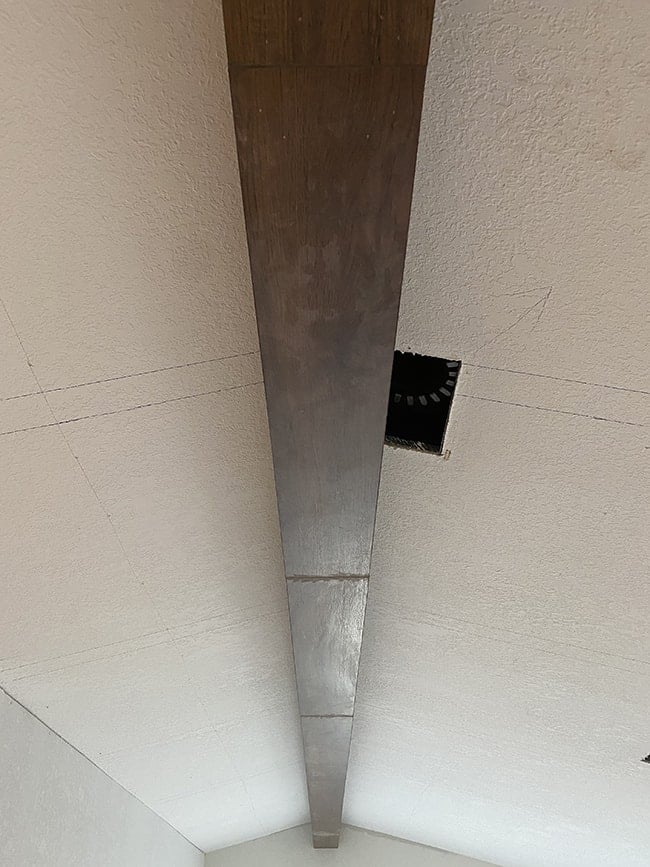

wood beam vaulted ceiling tutorial

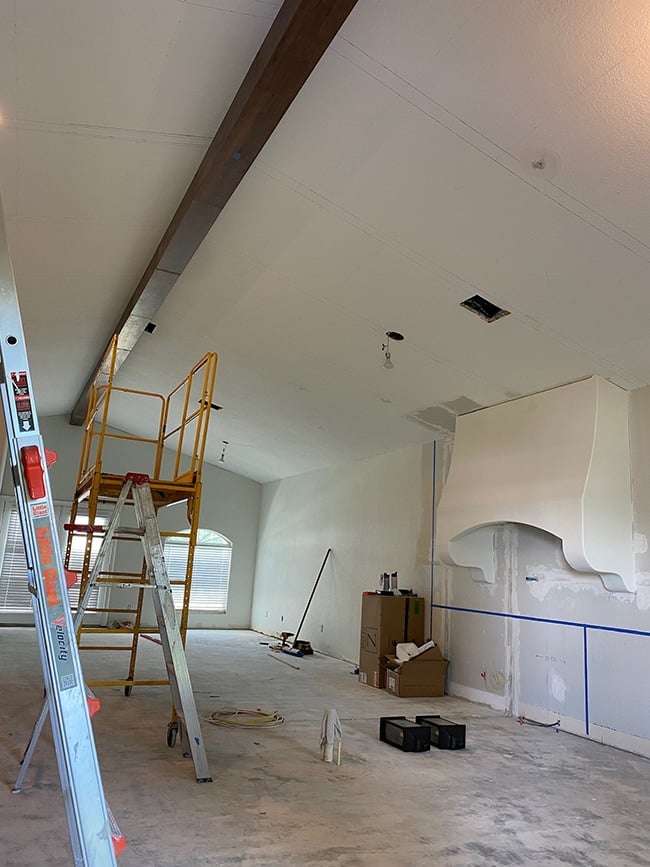

center beam on a vaulted ceiling

Now that they’ve been touched up again and the entire ceiling is finished, they really don’t stand out at all. How about that 40 foot beam?!

center beam on a vaulted ceiling

Step 3: Add furring strips and 2×4 blocking

This next step was required because our trusses run parallel to the large beam—aka, parallel to the plank boards. Each plank has to be attached to a stud (not just drywall) so I had to first attach furring strips on each end:

build your own wood beam ceiling

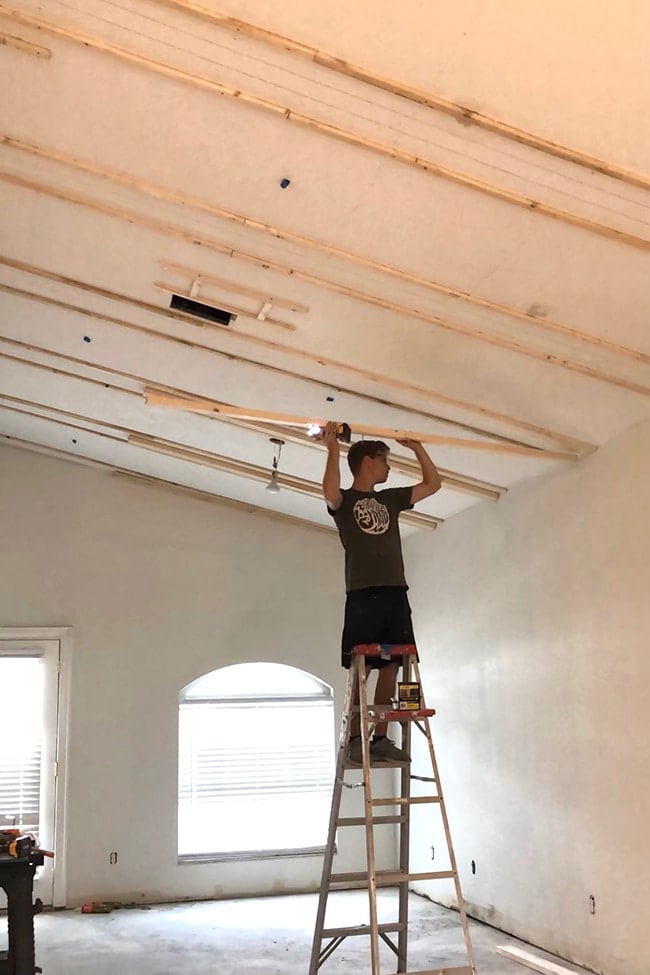

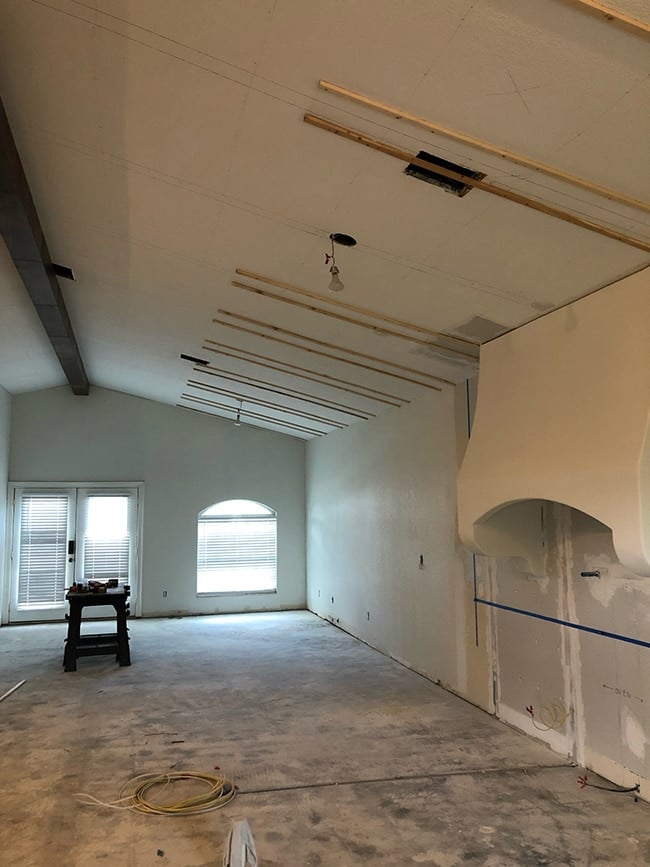

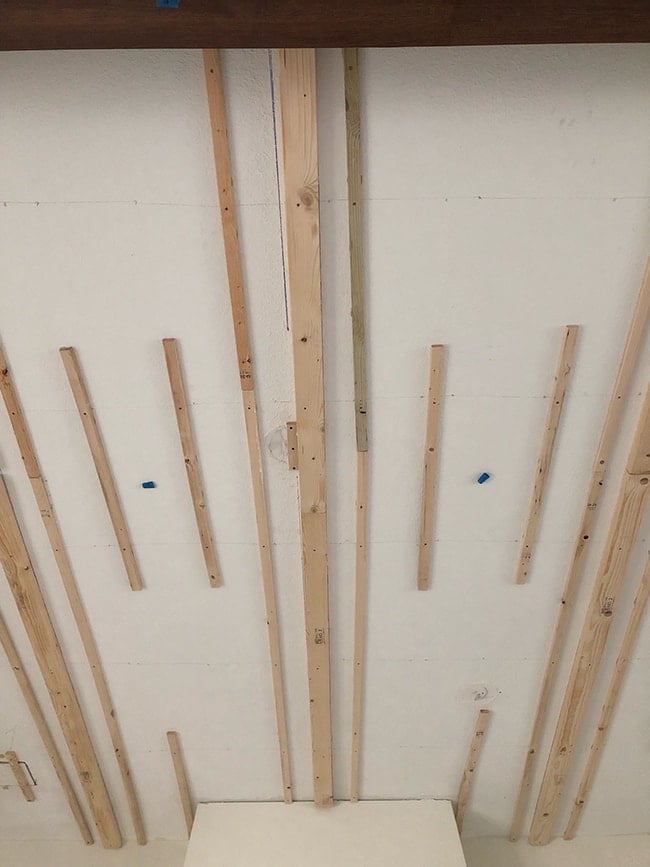

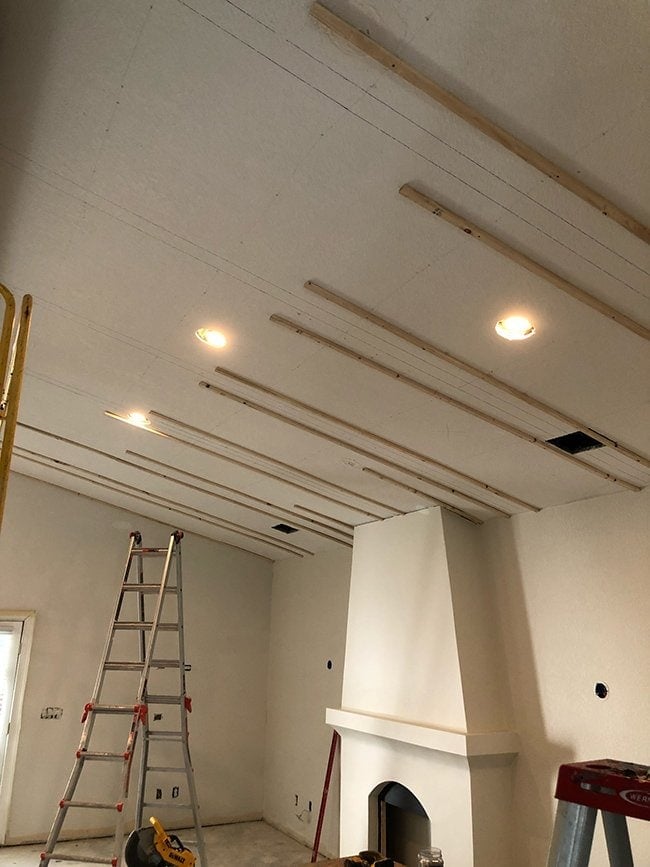

Furring strips are inexpensive 1×2″ boards, and I installed them in rows, a few inches in from where the edge of each plank would go. Below you can see the thinner lines along the ceiling that intersect the beams—these are the locations of each truss, and where each furring strip was attached.

wood beam ceiling installation

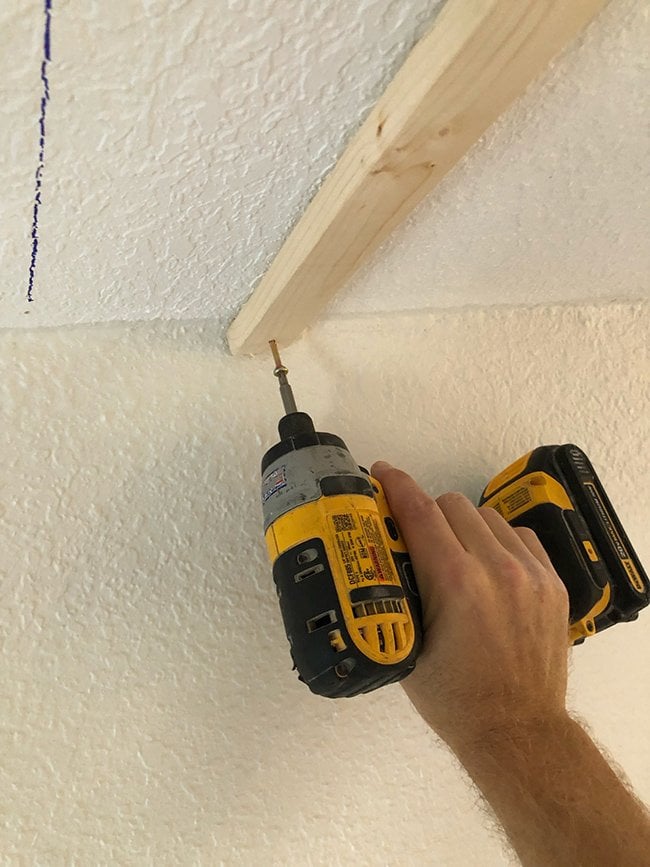

Make sure to pre-drill before screwing into the ends—this wood splits easily!

drilling furring strips into ceiling

I used liquid nails on these as well for extra reinforcement.

how to install wood beams on a vaulted ceiling

At the end of the small furring strips next to the beam, I used these heavy duty drywall anchors to secure them to the ceiling since there wasn’t a truss to attach to.

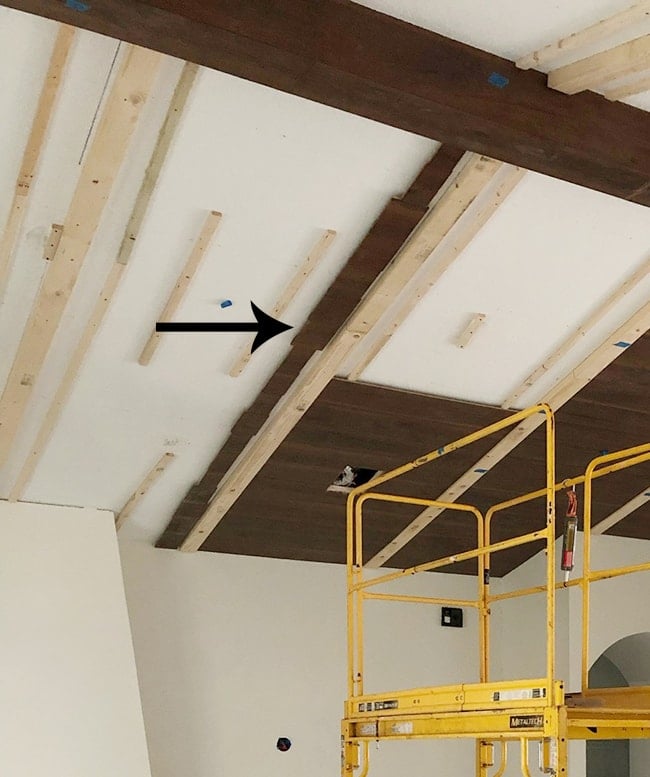

diy wood beam ceiling furring strips

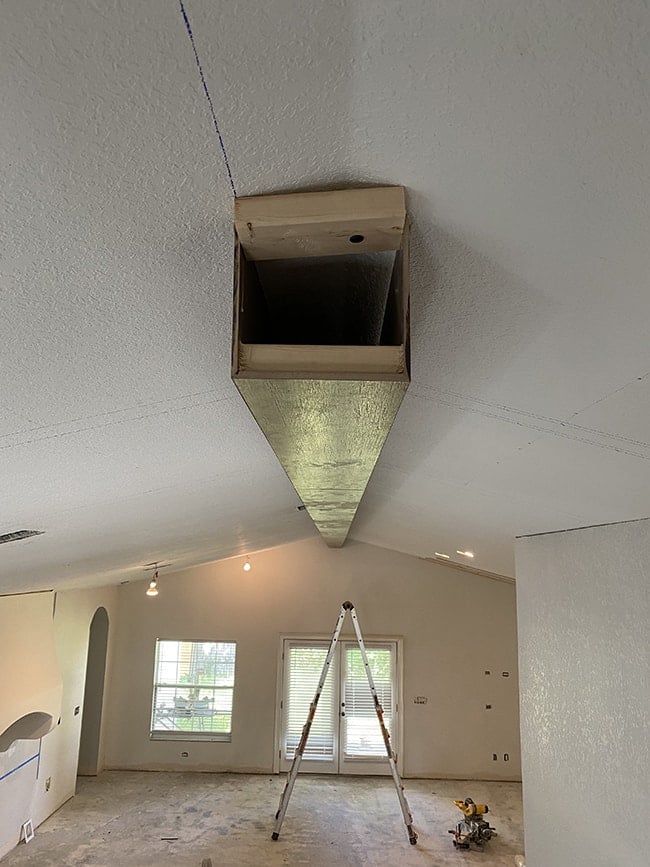

This is the stage where you’ll want to move any AC vents and lights if needed. Ours were all over the place and intersecting beams, so we mapped out new locations for the lights and relocated the AC vents.

how to install wood beams on a vaulted ceiling

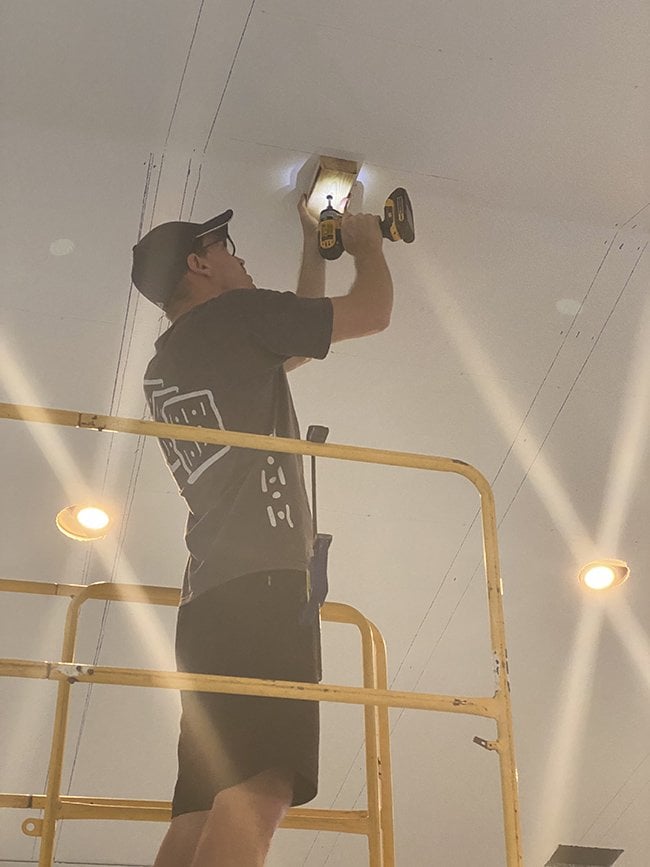

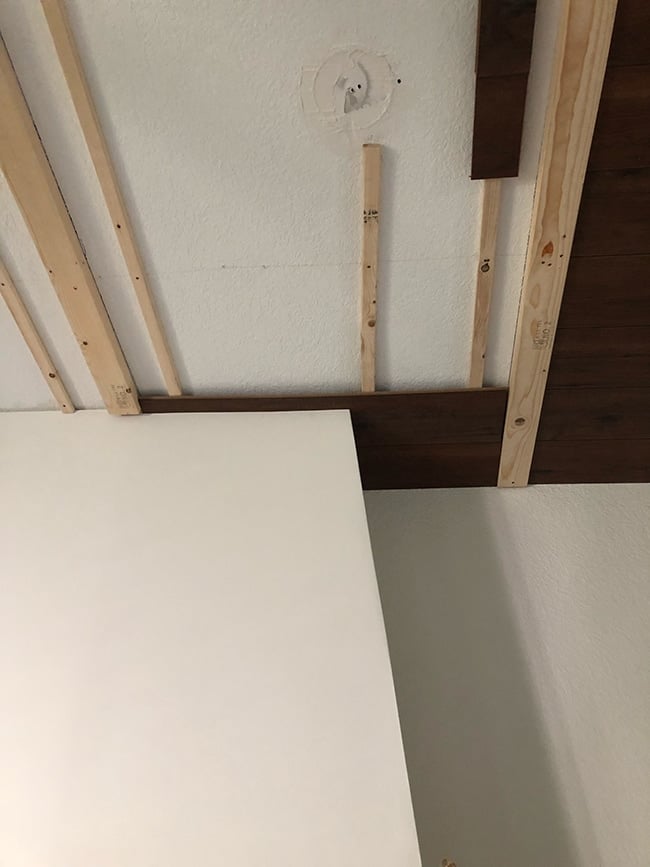

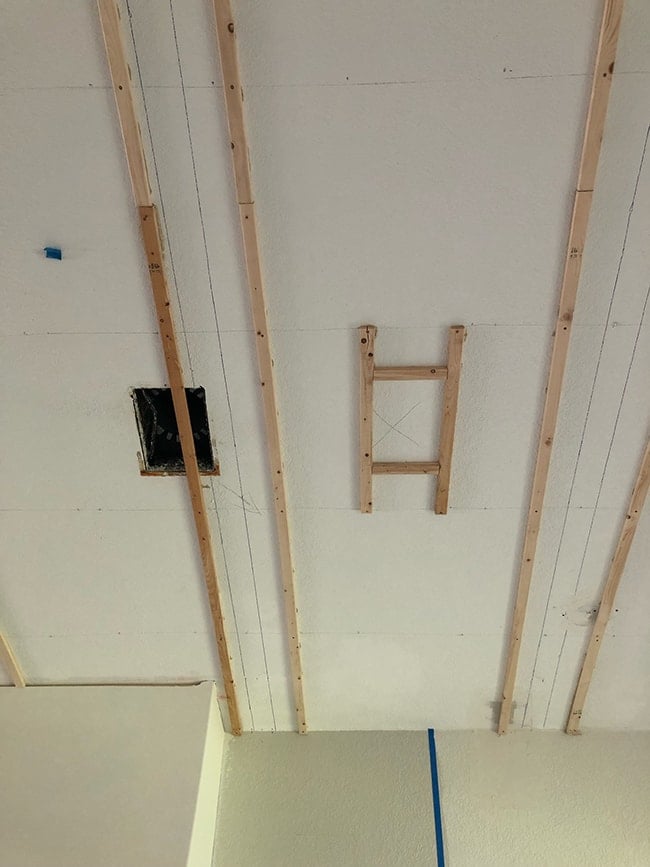

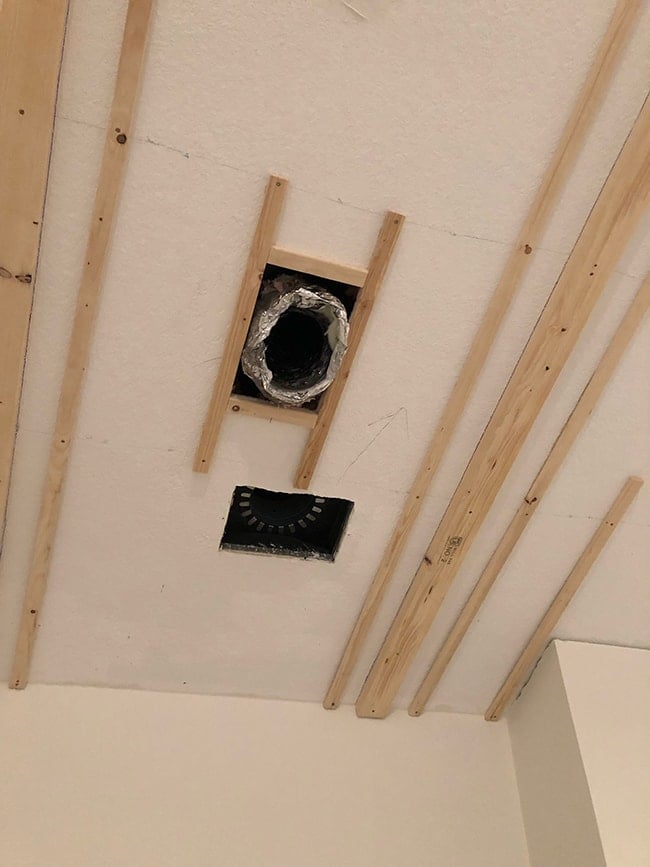

I built a simple frame for the new vents using furring strips, to the opening size of the existing vent. Each new vent location was centered between two beams. I moved the ducting to the new location from the attic, and we had our HVAC guy install new vent boxes. The old drywall holes were patched with the piece of drywall I cut out for the new vent.

how to install wood beams on a vaulted ceiling

I also added a couple furring strips to the joists on either side of the new light locations, just to provide a little extra ceiling reinforcement for when the new light hole would be drilled.

how to install wood beams on a vaulted ceiling

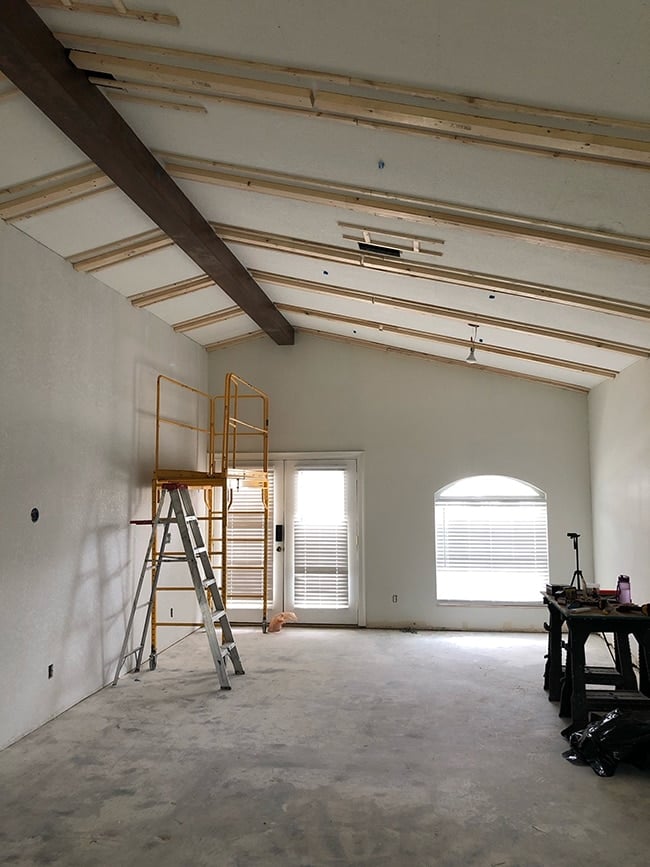

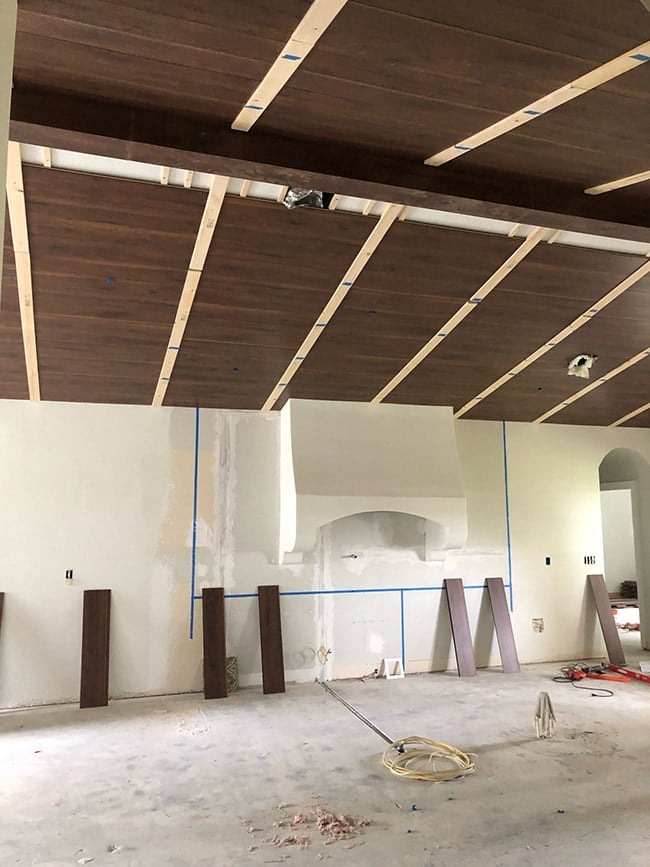

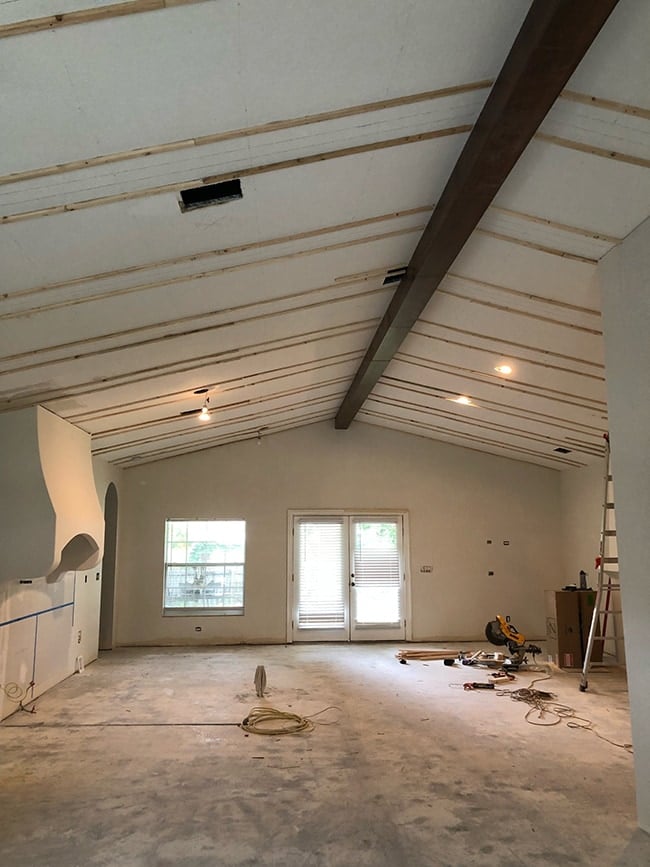

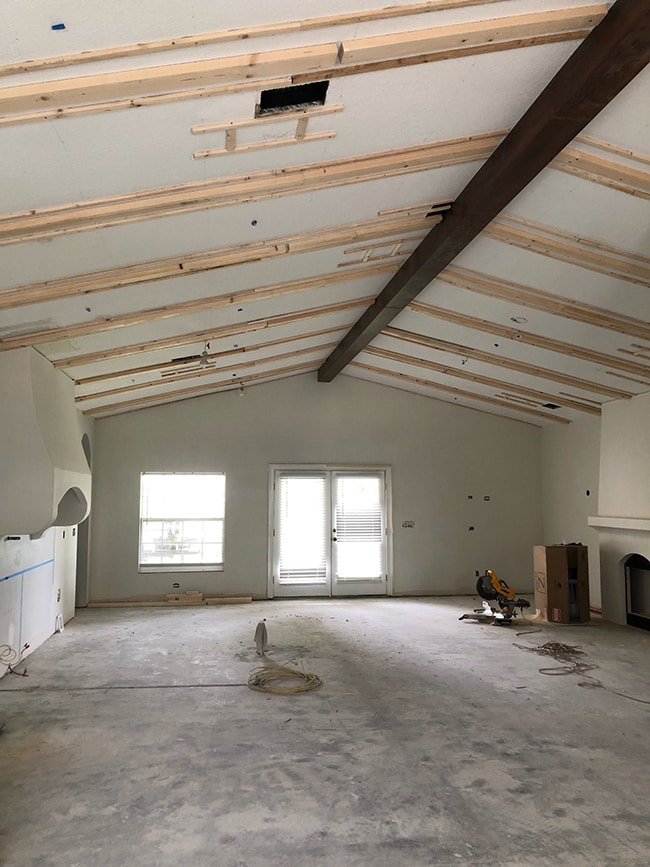

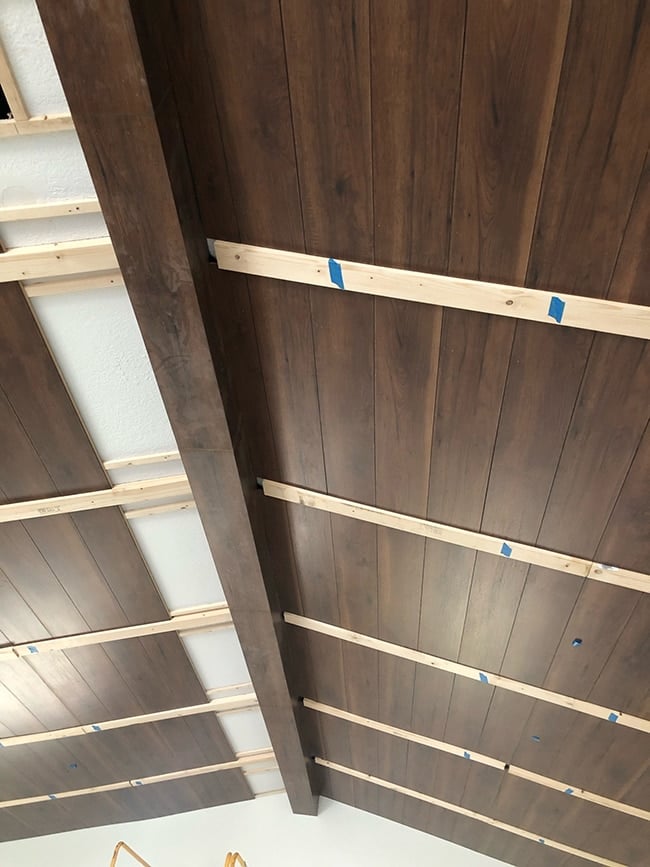

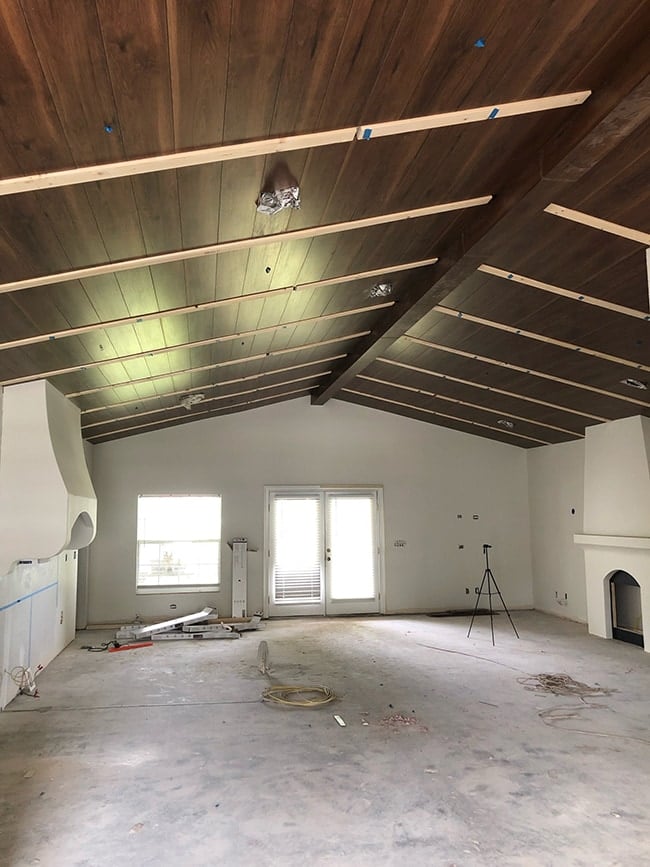

Once all of the furring strips were in, it was time to add 2×4’s along the beam lines. I neglected to take photos of this step, but here’s a screen capture from a timelapse:

how to install wood beams on a vaulted ceiling

This step was pretty straightforward—just line up the 2×4 with the beam lines on the ceiling, and attach (I screwed them into every truss).

diy wood beam vaulted ceiling installation

The furring strips, AC vent framing and 2×4’s took me around four days in total.

laminate wood beam ceiling installation

Step 4: Attach ceiling planks

Here’s where it starts to get fun! Before putting up the first plank, I needed to map out where they would line up in order to avoid any narrow slivers at the end. Starting with the longest run, I used scrap pieces as a test to see how they would fall (sorry this is out of order, forgot to take a photo before starting!)

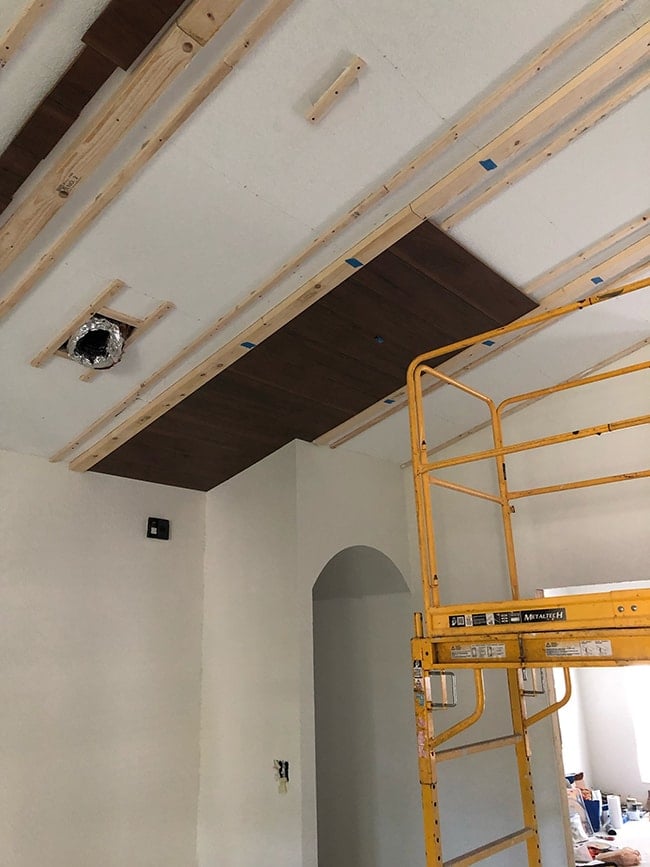

laminate wood plank ceiling installation

With my spacing good to go, the planking began.

laminate wood plank ceiling installation

This step is also pretty straightforward. The planks interlock and they were all cut to the same size—the length didn’t have to be super precise because the beams would hide any small gaps around the 2x4s.

laminate wood plank ceiling installation

The trickiest cuts were around the fireplace and range hood. I used a jigsaw to cut these pieces, and my orbital sander to miter the edge and contour the precise shape.

closeup laminate wood plank ceiling installation

Those efforts paid off because they fit like a glove.

laminate wood plank ceiling installation
laminate wood plank on a vaulted ceiling installation

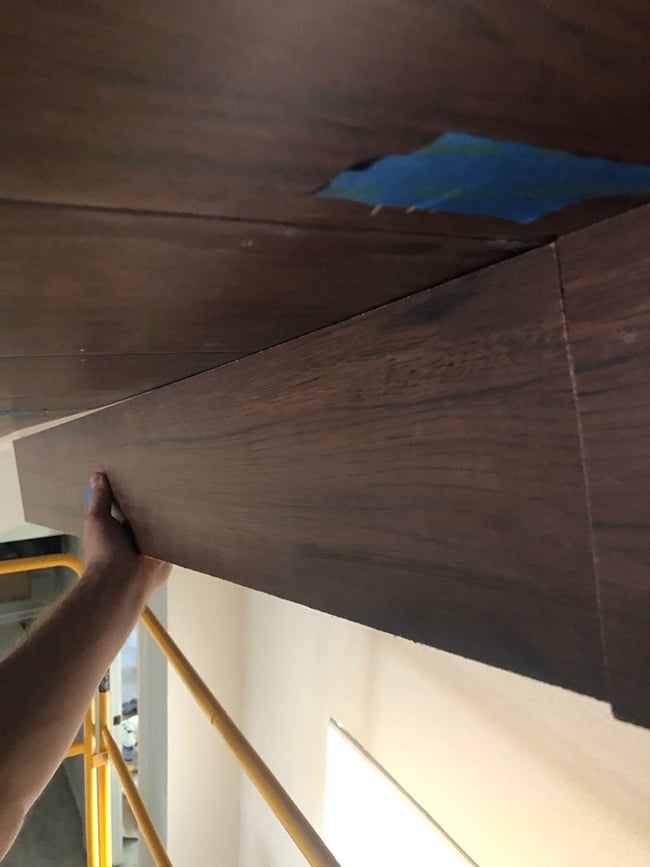

The last two pieces next to the big beam were a bit awkward to install due to limited space caused by the angle of the ceiling.

wood beam and plank vaulted ceiling installation

To get a tight fit, these are the steps I took:

  1. Ripped off the tongue edge of the top piece that would go next to the beam
  2. Ripped that piece down to the correct width to fit
  3. Held the pieces in a V shape up against the ceiling
  4. Pushed it flat with one end nesting in the previous board and the other end up against the beam

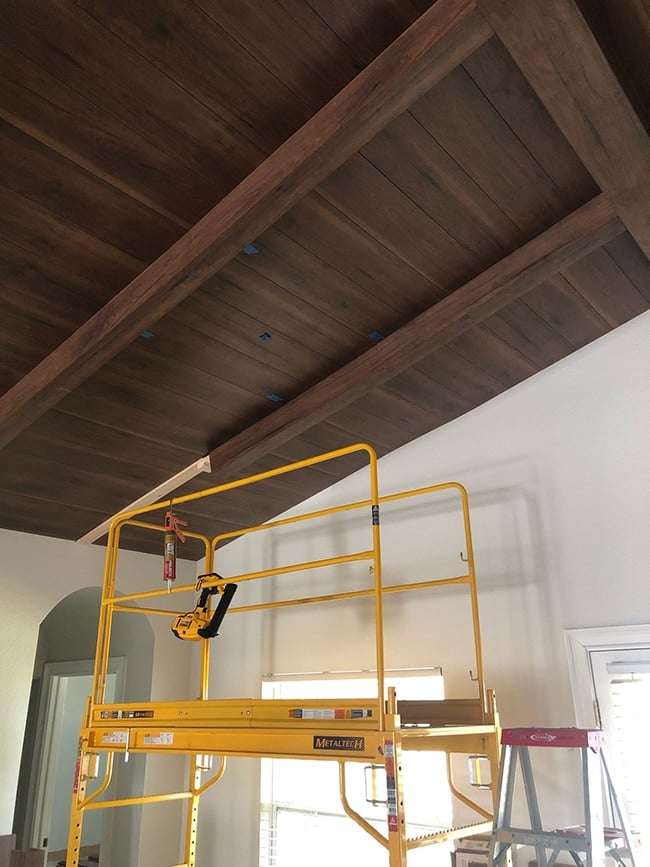

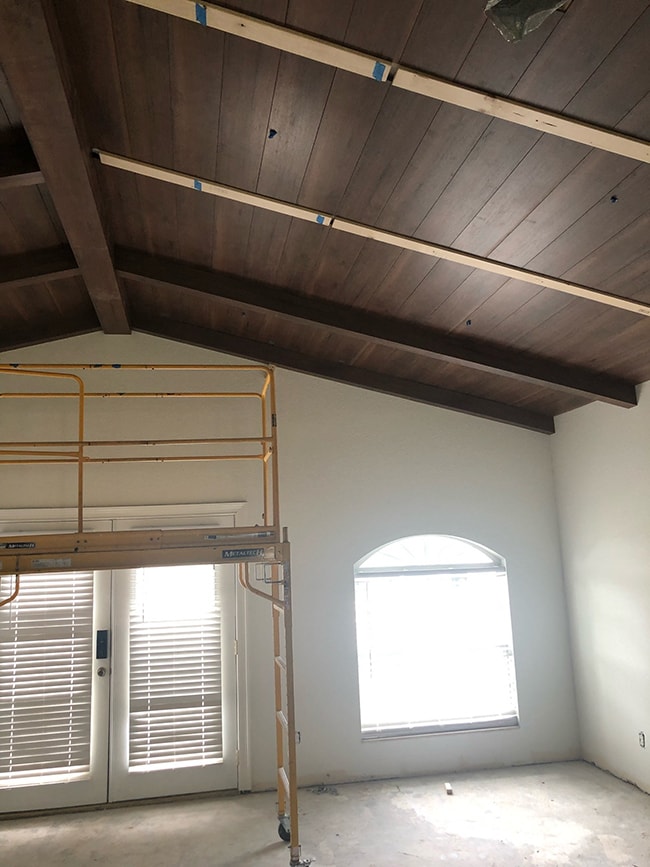

wood beam and plank vaulted ceiling tutorial

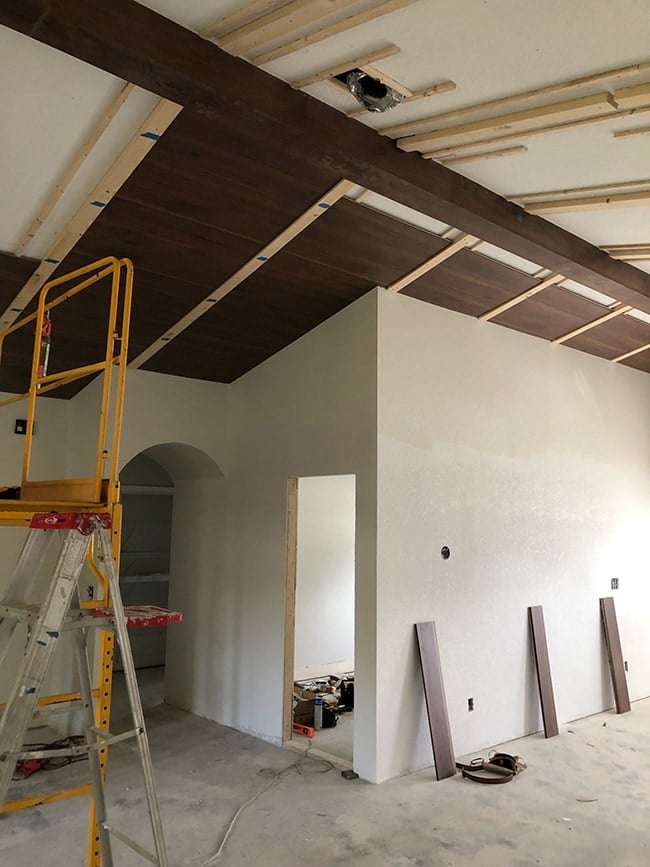

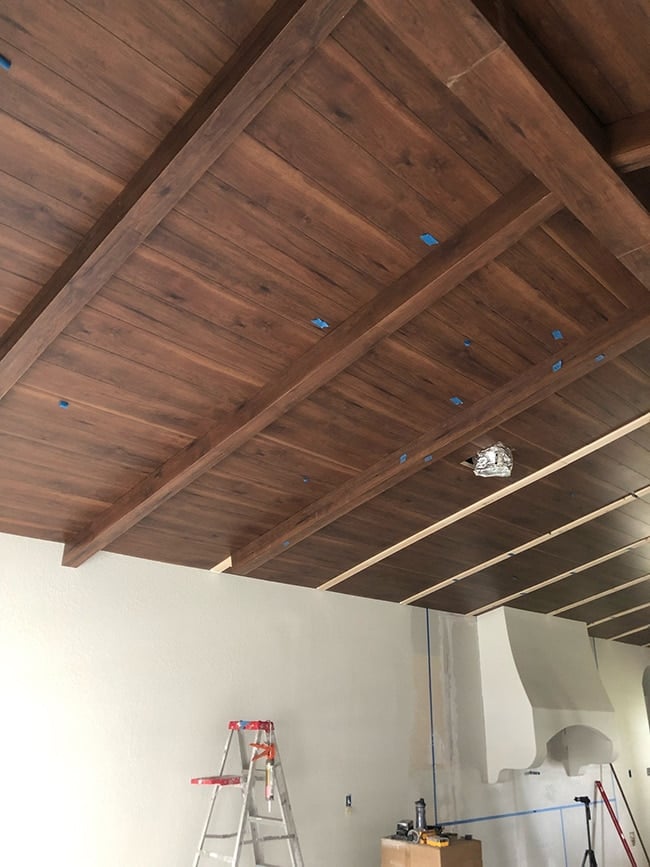

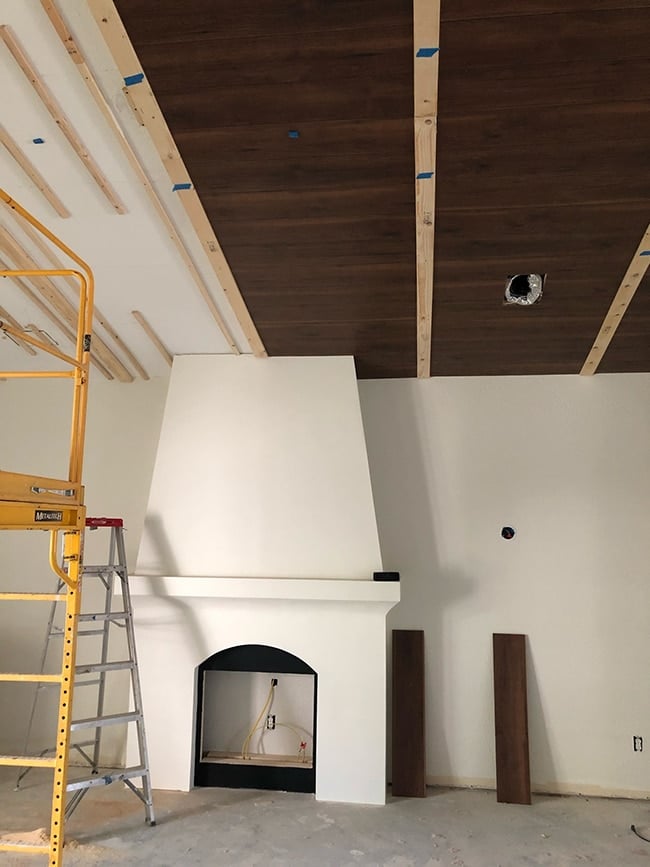

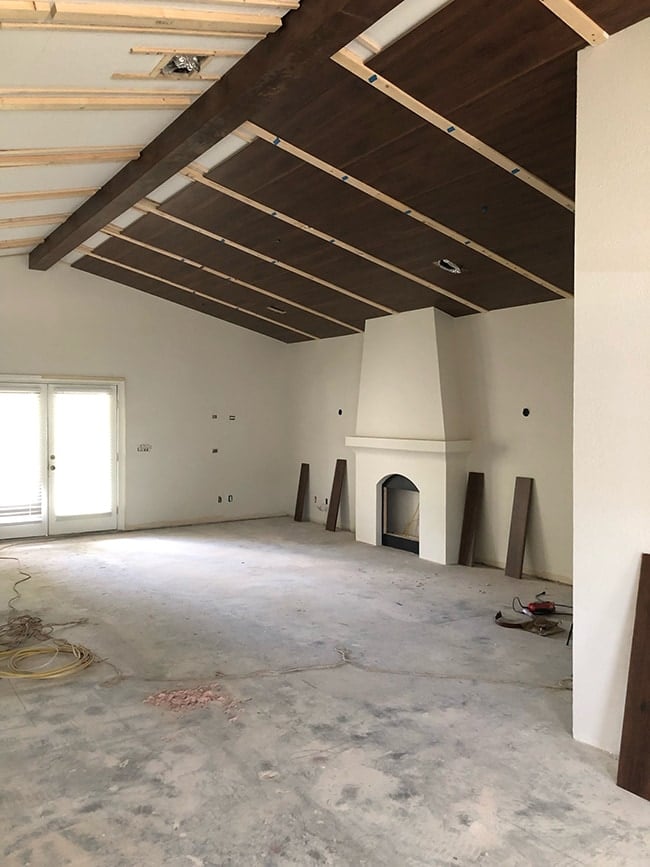

Installing the planks took me a week, but what a difference already!

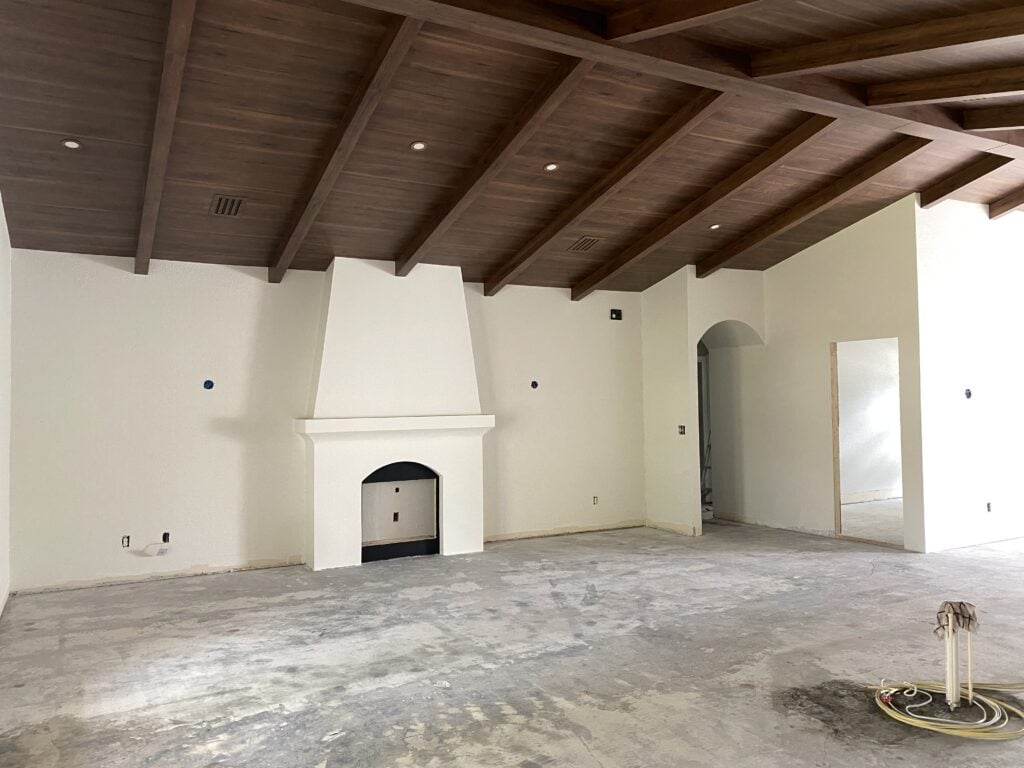

dark laminate wood beam and vaulted plank ceiling tutorial

Step 5: Build and attach the smaller beams

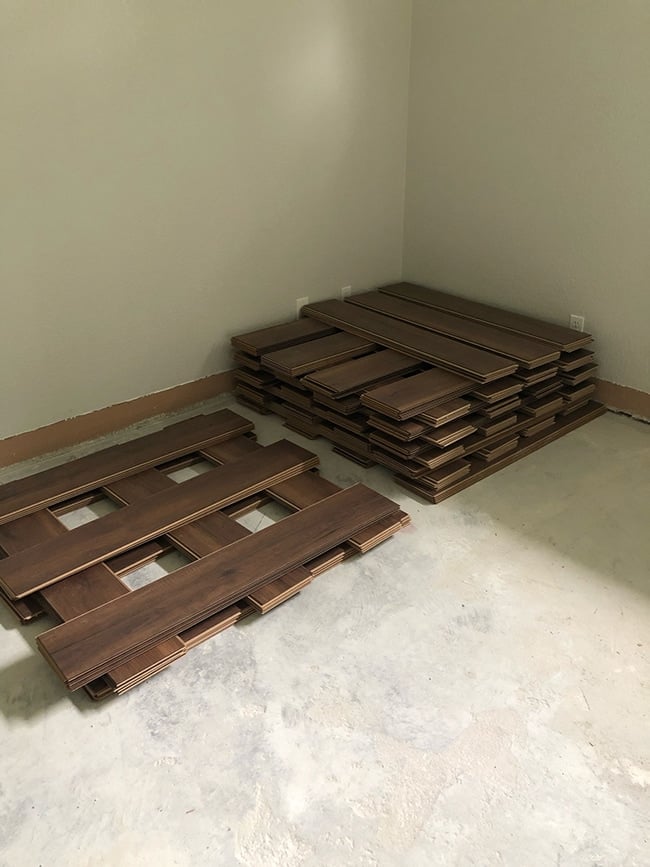

The first step for the small beams was to sort through dozens of boxes of planks, lay them out and match the grain patterns. It took me an entire day, but it’s a critical step so they appear to be one big beam instead of multiple small sections.

laminate wood planks

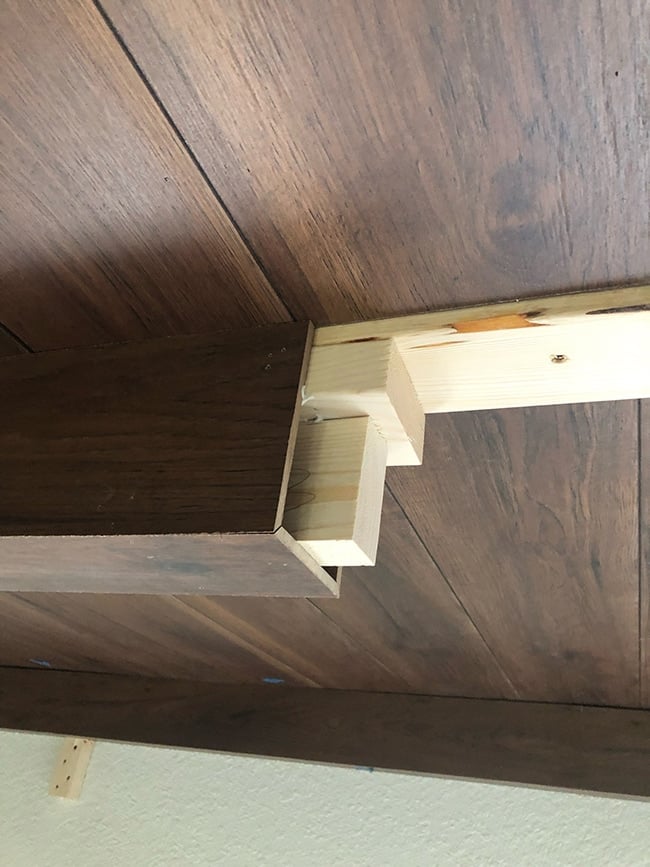

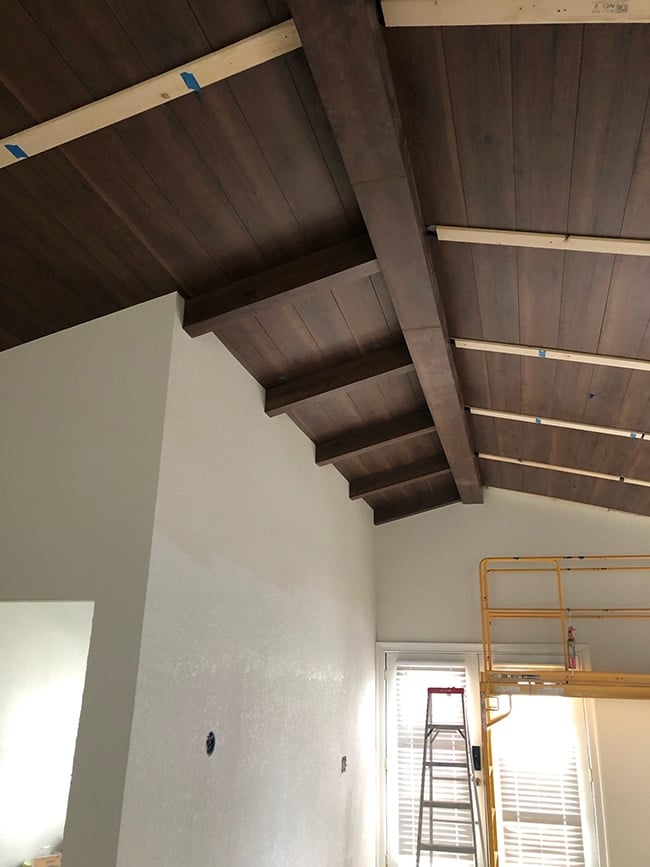

The small beams were constructed the same way as the big beam, with mitered long edges and 2×4 blocking in the middle (no miters on the short ends this time!) I used an angle finder to determine the cut angle against the wall (they all ended up at 15º).

how to build ceiling beams using laminate planks

I made the opening width of these beams 3 ½”, so they would fit snug around the 2x4s I installed on the ceiling. Once each section was built, I sanded the corners to get rid of some of the splinters from the table saw and used a furniture marker to go over the edge and hide the cut marks.

how to build ceiling beams using laminate planks

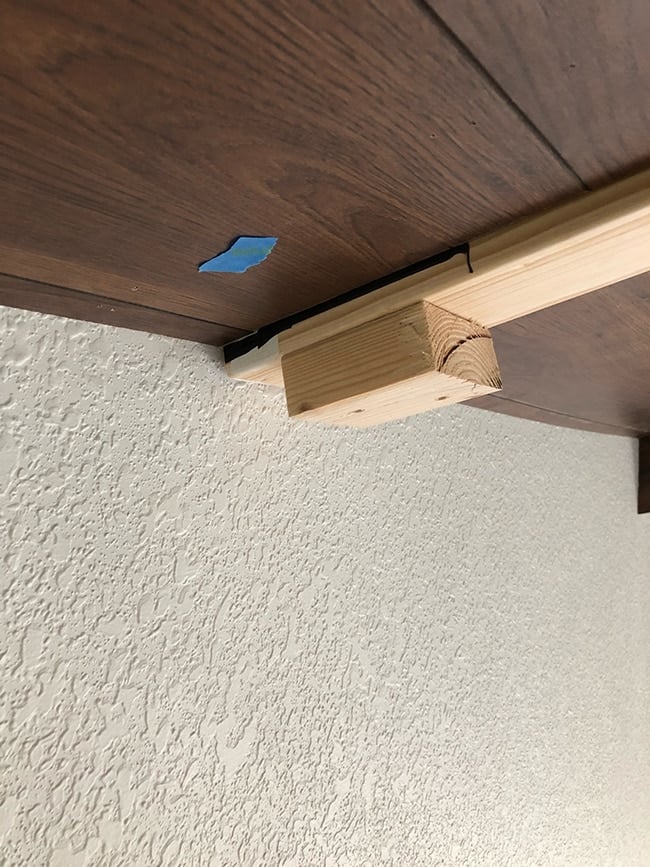

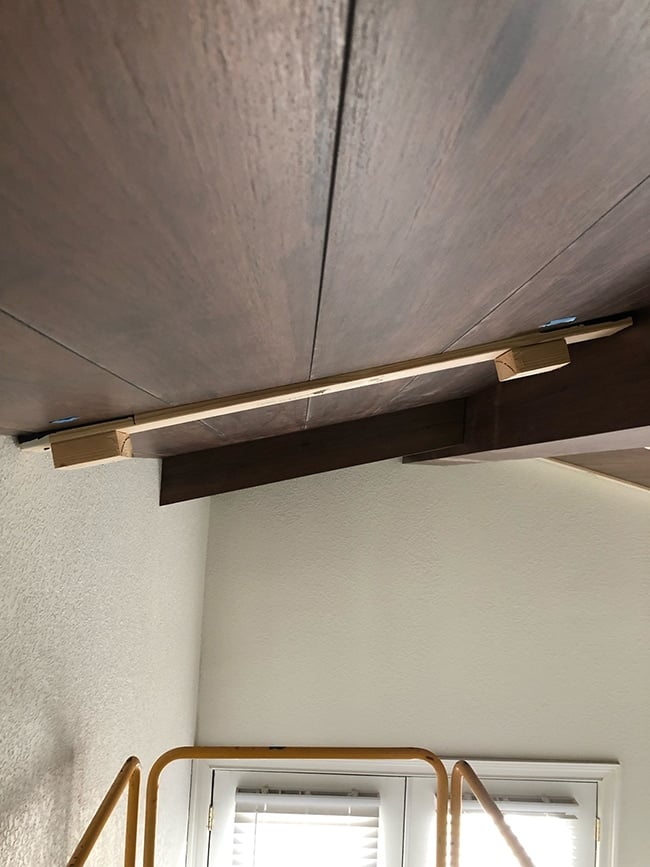

The 2x4s on the ceiling came down only ~ ½” below the planks , so I added additional blocking to attach the beams to at each connection point.

how to build ceiling beams using laminate planks
how to build ceiling beams using laminate planks

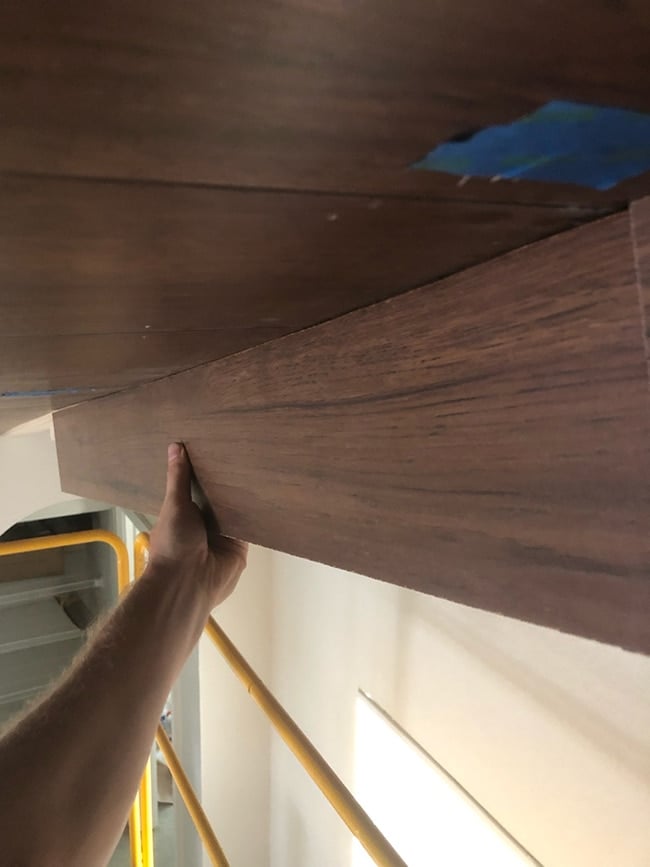

Starting with the smallest beams, I used liquid nails and 1” finish nails to attach them to the blocking.

wood beam and plank ceiling tutorial using laminate

I ended up making several small adjustments with a hand file and orbital sander to get the fit just right.

wood beam and plank ceiling tutorial using laminate floors

Similar process for the longer beams with multiple sections, but I added an extra piece of blocking at each joint. This was needed for reinforcement and to keep each section aligned.

wood beam and plank ceiling tutorial using laminate floors

The longest beams were made with four sections, and around 12.5′ long in total.

wood beam and plank vaulted ceiling tutorial

These seams with a butt joint turned out much better than the mitered big beam! Live and learn.

wood beam and plank vaulted ceiling tutorial using laminate floors

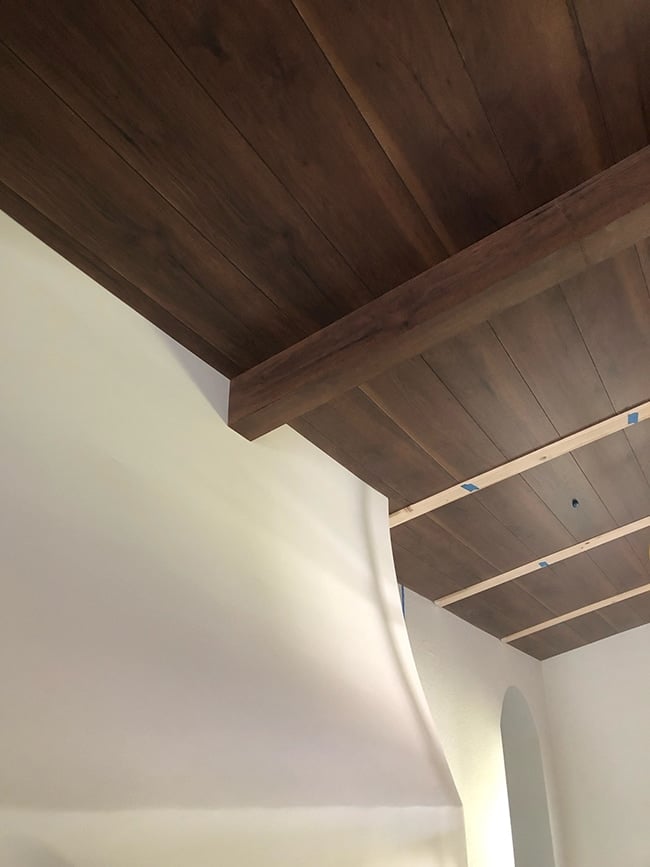

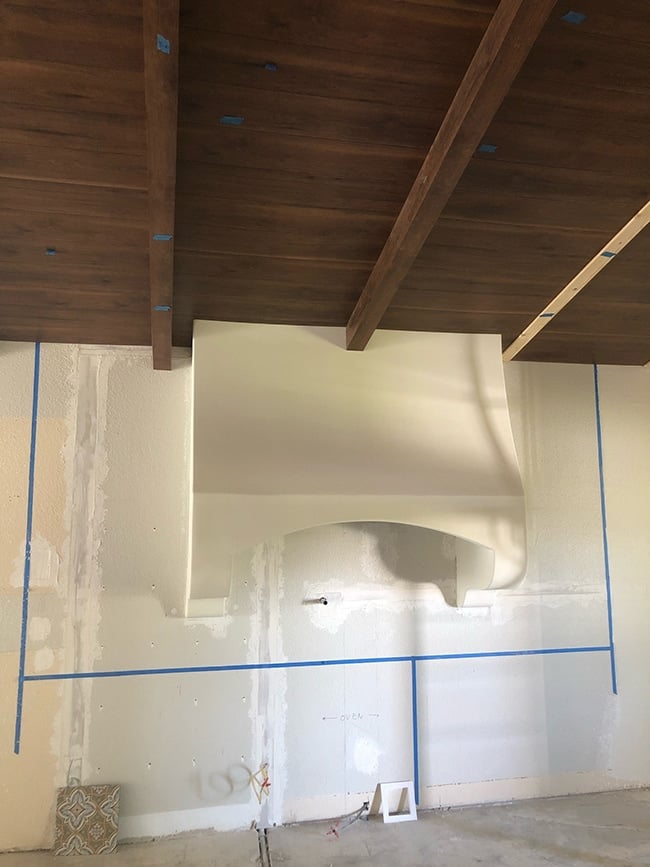

To get a perfect contour around the range hood, I used my orbital sander to curve the edge.

custom wood beam and plank ceiling tutorial using laminate floors

So satisfying to watch these pieces go in!

diy wood beam and plank ceiling tutorial using laminate floors

I ran into a big challenge along a section of drywall that had come away from the trusses and bowed the ceiling. I was able to re-secure the drywall, but was left with a wonky crooked ceiling.

how to build ceiling beams using laminate planks

After a failed attempt to cut a curved shape with my jigsaw, I spent a couple hours with a hand filer and orbital sander—and about 100 test fits—to get the shape just right:

how to build ceiling beams using laminate planks

Can’t even spot the problem piece!

diy wood beam and plank ceiling tutorial using laminate floors

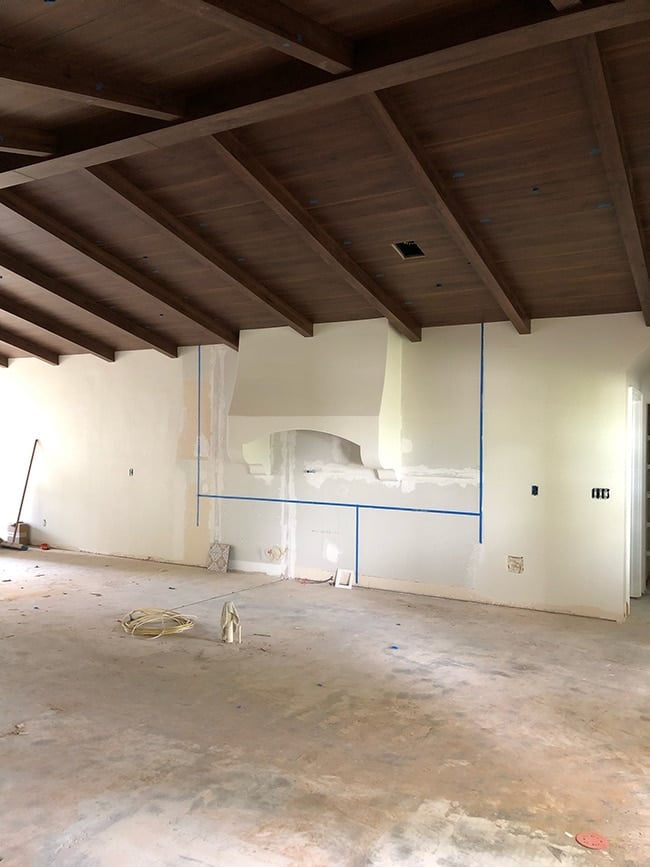

For the rest of the beams it was very much rinse and repeat for this whole process. I built and installed them at about a pace of three full beams every two days.

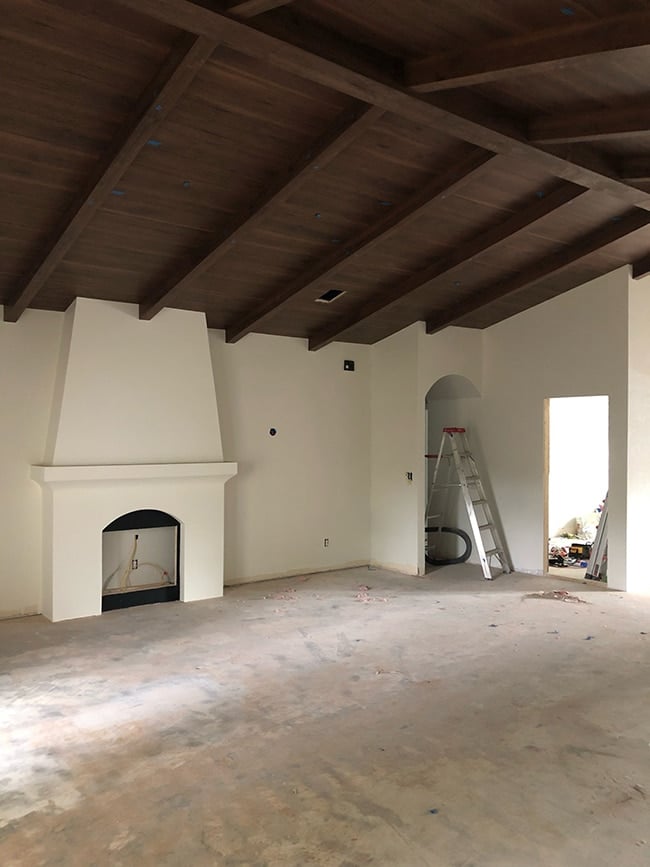

diy wood beam and plank vaulted ceiling using laminate floors
tutorial of a faux wood beam and plank ceiling using laminate floors

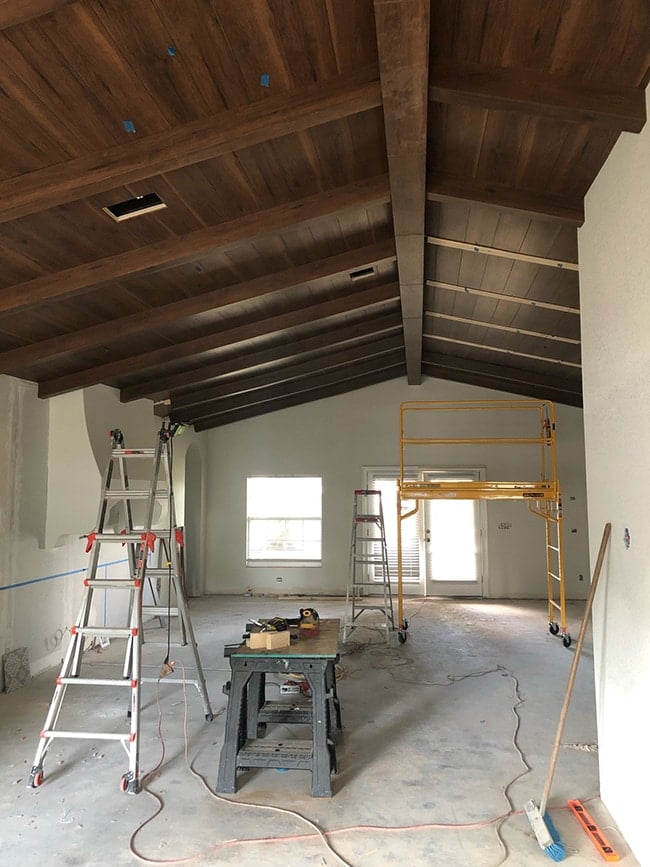

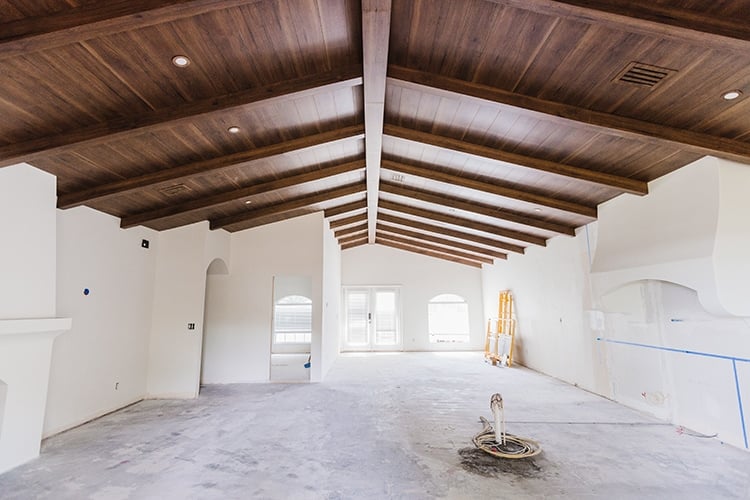

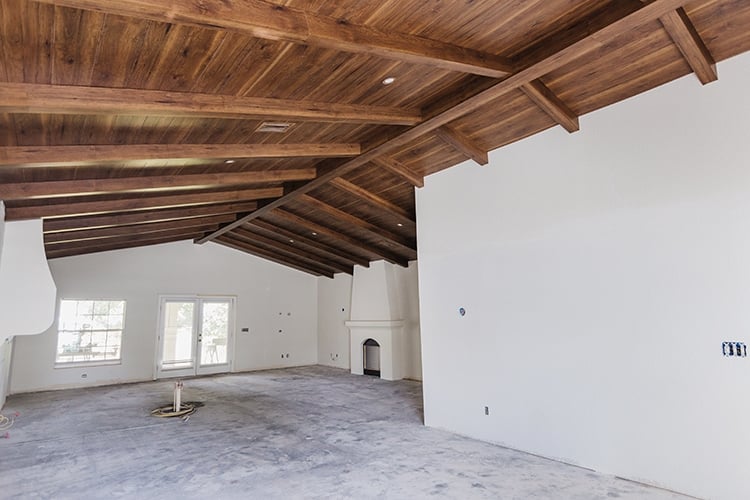

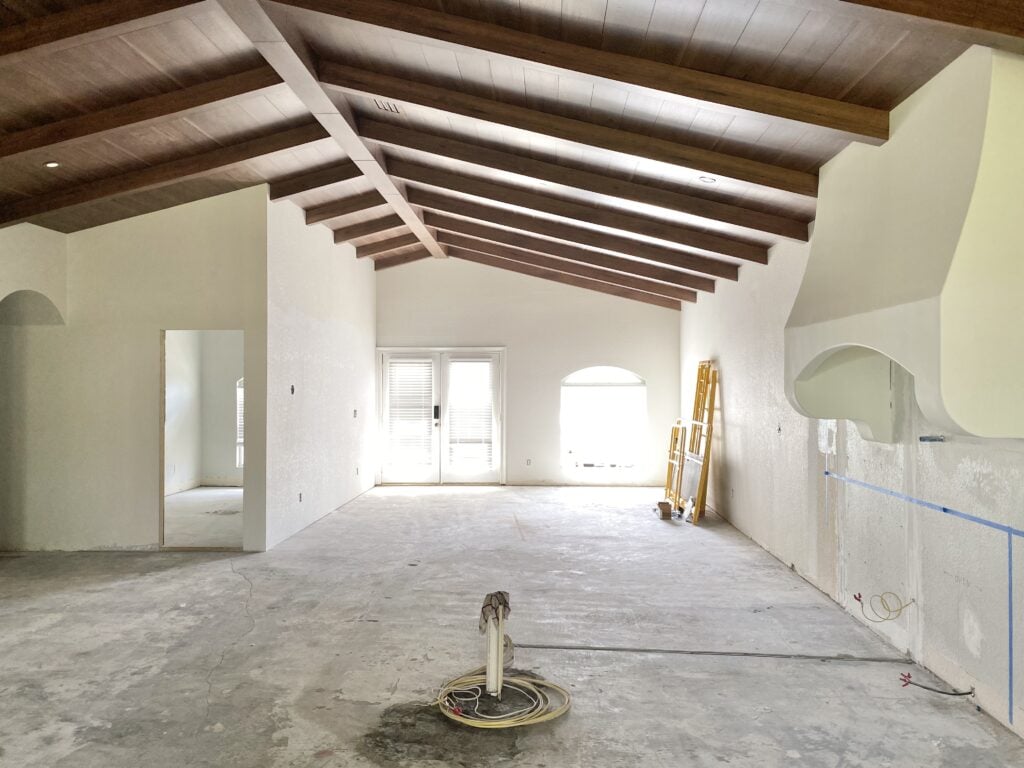

Nothing like watching that last beam go up after weeks of work!

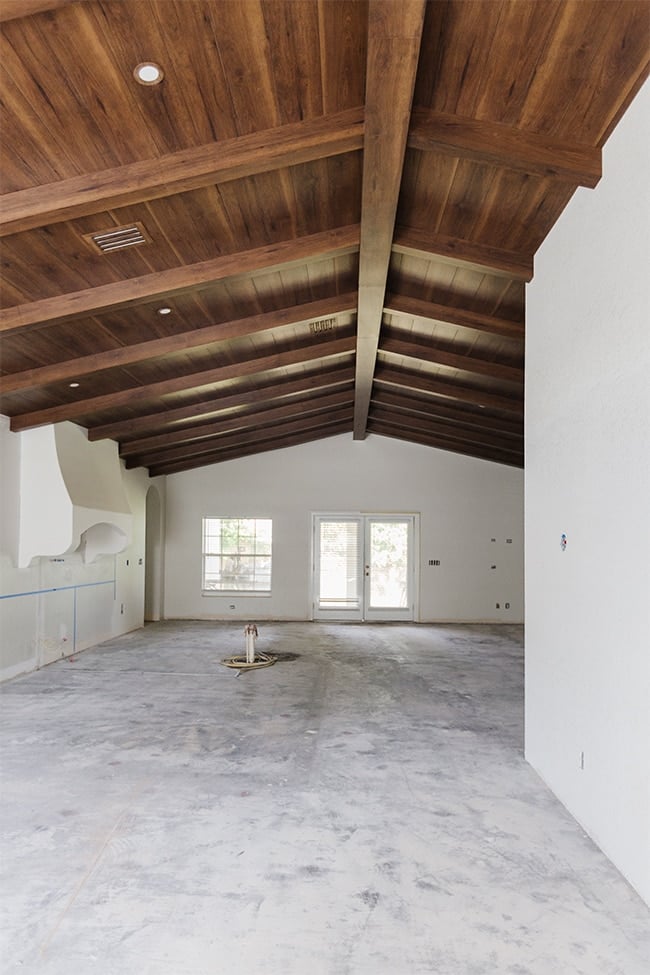

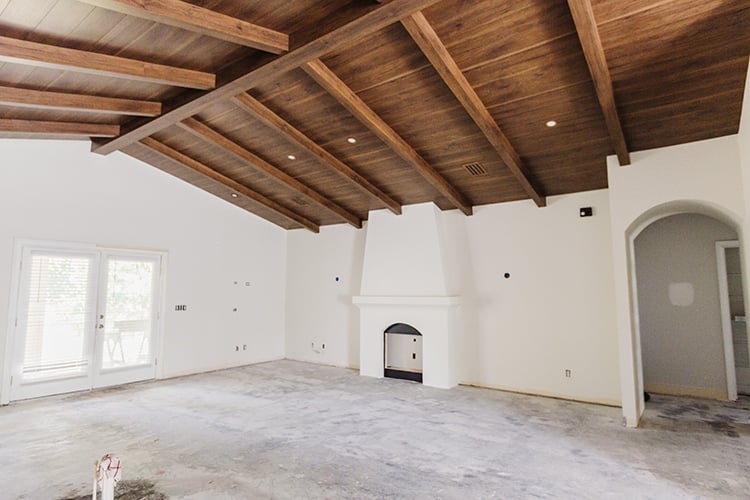

how to diy a spanish style wood ceiling

I spent 4-5 hours wiping everything down and touching up as needed with the stain pens.

how to diy a spanish style wood ceiling

Step 6: Reinstall HVAC vents and lights

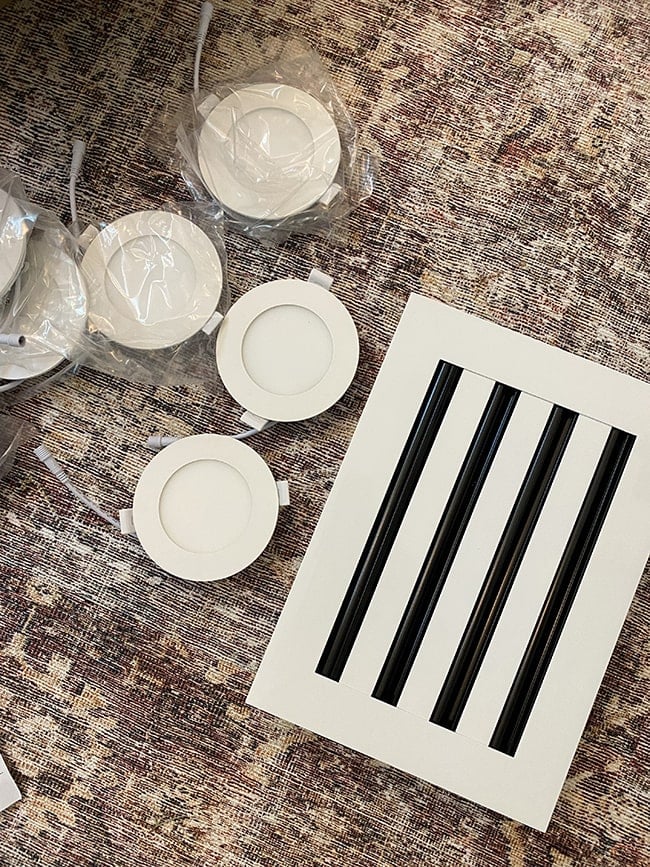

The quickest way to ruin all of our hard work is to install a bunch of eyesore AC vents and lights. I found these low profile linear vent covers (same one we used in our closet makeover) and slim LED lights, and decided to give them a ‘faux bois’ paint treatment to match the wood grain.

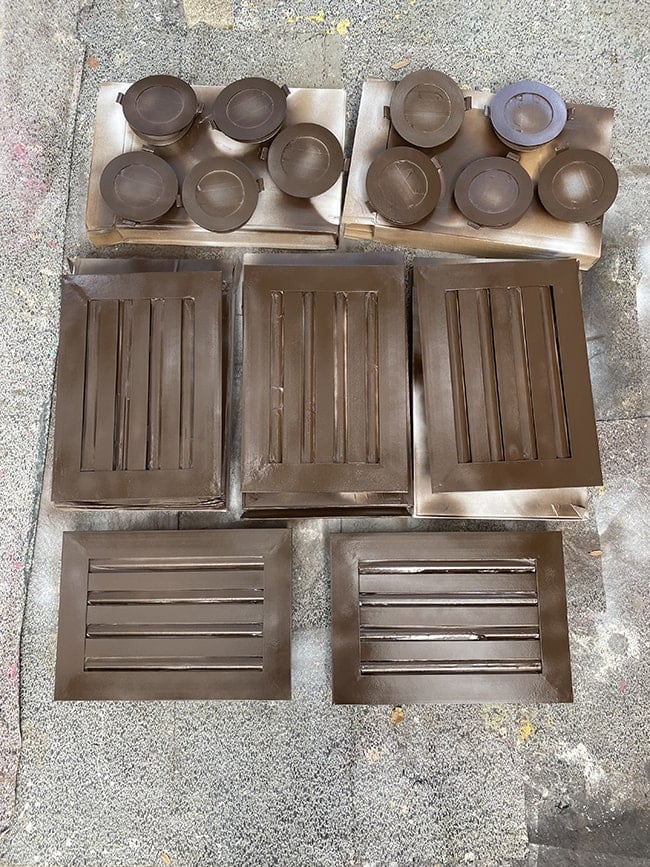

After using my go-to spray primer, I applied a coat of dark brown spray paint.

spray painting vent covers and lights

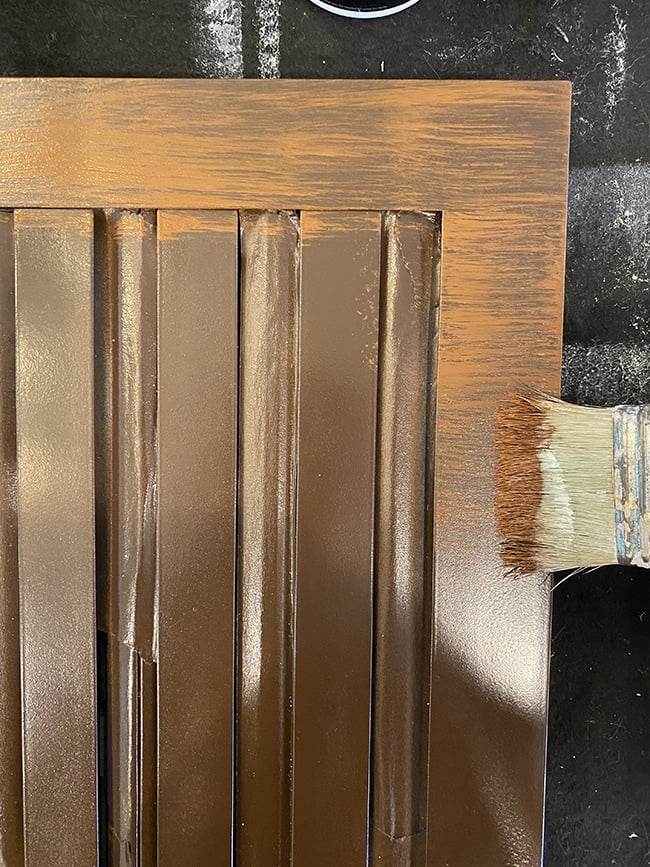

Then I bought three paint samples that matched the different shades of the laminate, and lightly brushed each color on.

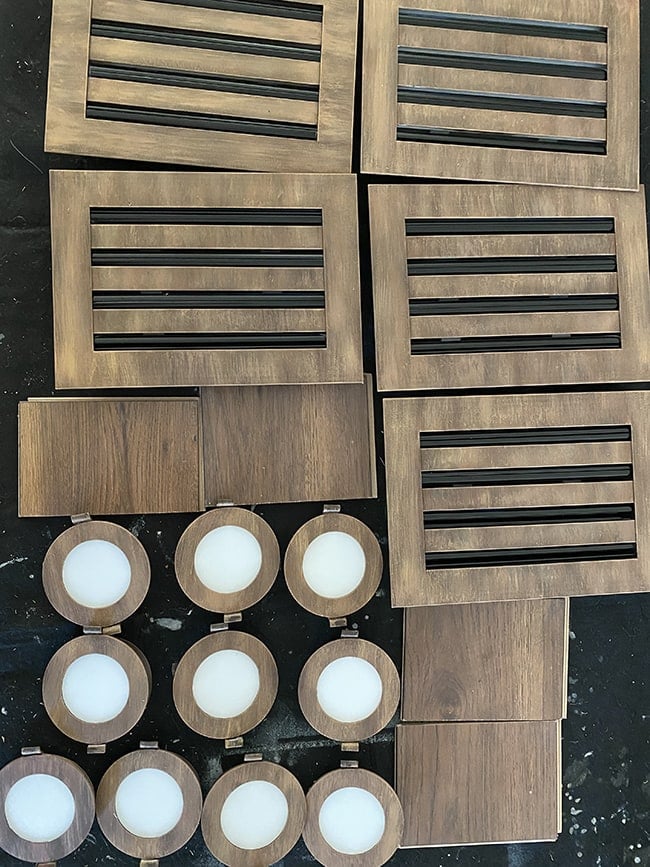

faux bois on vent covers

This technique resulted in a surprisingly realistic wood grain—they turned out better than expected!

faux bois wood grain ac vent covers

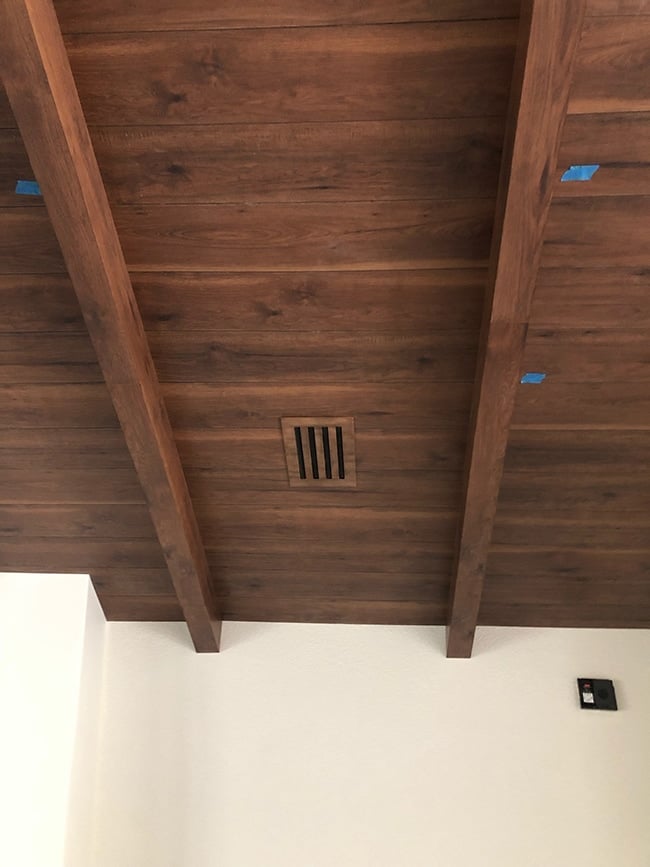

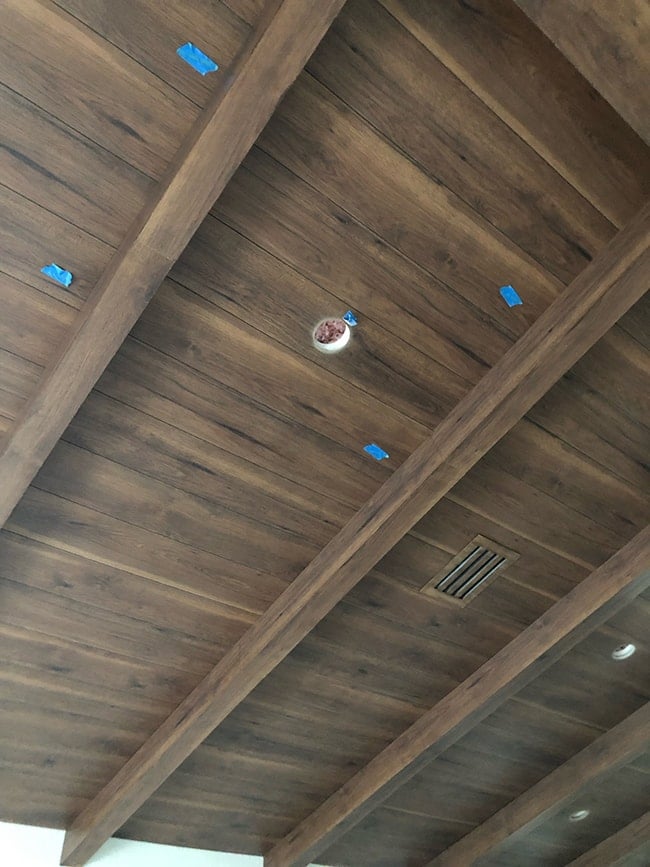

As mentioned earlier, you can’t see much detail when standing on the ground, but it was a fun experiment and good trick to know for the future.

faux bois wood grain ac vent covers

As the last and final step, our electrician cut holes for the new lights (I marked the locations with painters tape) and wired them up!

diy wood beam plank ceiling

DIY Wood Beam Vaulted Ceiling Reveal

And that, my friends, brings us to the end…

diy custom wood beam ceiling in a spanish style home
diy custom wood beam ceiling in a spanish style home
diy custom wood beam ceiling in a spanish style home

You’ll notice that the color and tone of the boards changes quite a bit depending on the angle and lighting. I think the color variation and grain is perfect for our Hacienda—I’m not convinced we could have achieved this trying to stain the boards by hand.

diy custom wood beam ceiling in a spanish style home

The seams in the big beam are really the only imperfection. It’s not ideal, but at least you can only see them when looking into the light…

closeup of a custom wood beam and plank ceiling in a spanish style home

Honestly, I’m so in awe just standing in this room and taking in this incredible transformation… I don’t even care about the seams.

diy tutorial custom wood beam ceiling in a spanish style home
dark wood beam ceiling in a spanish style home

The ceiling also feels so much taller in person. Here’s a side by side before/after comparison:

dark wood beam ceiling in a spanish style home
dark wood beam ceiling in a spanish style home

Of course, adding a bedroom and knocking down the kitchen made a big difference too!

dark wood beam ceiling in a spanish style home

Now for the moment of truth: how much did our DIY wood beam ceiling cost?

Materials: $3,796

Scaffolding: $994

Hired work: $450

Total: $5240

When you subtract the $532 we wasted on the scaffolding rental, the real cost is $4,708. Several thousands less than buying pre-fab beams, and a fraction of the cost if we hired the whole job out. I can guarantee you we added a whole lot more than that to the value of the property 🙂

Of course, cost isn’t the only factor—35 days of physically demanding work is a huge commitment, and certainly not something I’d recommend for most people. But I’m happy to report that our experiment was a success, and you can in fact build a pretty incredible ceiling using laminate. And for us? 100% worth it.

diy wood beam and plank wood ceiling tutorial

If you decide to tackle this DIY, make sure to watch my 3-Part Instagram story highlight which covers even more details including videos of the DIY wood beam ceiling install.

dark wood beam ceiling in a spanish style home

Whew, I’m going to need a nap just after writing this tutorial—I can only imagine how tired Lucas must be! No time to rest though, next up is our flooring install. I’ll start sharing the progress in my IG stories next week, so make sure you’re following me there.

Now that this project is out of the way, I can relax a bit and focus on Christmas! I’ll be sharing my décor finds and holiday gift guide on the blog next, so stay tuned for some holiday cheer…

Related posts:

10 Simple Ideas to Update your Kitchen Cabinets
All the tiles we're using in the Hacienda Hideaway
Hacienda Primary Bath Floor Tile Reveal
Previous Post: « Our 2021 Holiday Tablescape
Next Post: Best of 2021: Holiday Décor + Gift Wrap »

Reader Interactions

Comments

  1. Lana says

    December 17, 2021 at 10:47 am

    looks amazing!! I can’t find how you attached the planks to the furring strips tho?? liquid nails and a nail gun?? thanks!!

  2. Kimberly says

    November 11, 2021 at 1:40 am

    WOW, absolutely stunning. What an incredible result from all of your hard work. Incredible.

    • Jenna Sue says

      November 11, 2021 at 8:07 am

      Thanks so much Kimberly!

  3. Kelly says

    November 10, 2021 at 11:08 pm

    Oh my goodness Thank You!! This is exactly what makes your blog the BEST! The creative solutions to accomplish the goal with the live and learn along the way included. I feel like most blogs anymore are mood boards with links followed by a room reveal accomplished by a hired professional contractor. As it is beautiful it really isn’t much different than looking a magazine. I’m sure that format is great for all the non DIY’ers but for the people who enjoy a good home project…not so much. Your blog is so inspiring and helpful. I want to support content like that. Please let me know the best way to do that. What an amazing accomplishment!!

    • Jenna Sue says

      November 11, 2021 at 8:07 am

      Aw, that means a lot Kelly! So glad you’re enjoying the tutorials and the hours put into them aren’t going to waste! We both enjoy sharing the process and will continue to do so as long as this blog is running 😀

  4. Monica says

    November 10, 2021 at 11:39 am

    This looks so so so GOOD – great job!

    • Jenna Sue says

      November 11, 2021 at 8:05 am

      Thank you Monica!

  5. MaggieO says

    November 10, 2021 at 10:20 am

    Amazing achievement – and all your own work! Beautiful addition to that room.

    • Jenna Sue says

      November 11, 2021 at 8:05 am

      Thank you Maggie!

« Older Comments

Welcome!

Hi, I’m Jenna and I’ve been designing and DIY’ing my way through homes since 2008. Join me as I learn, share my experience, and hopefully encourage/inspire you along the way!

As Seen In

Primary Sidebar

Welcome!

Hi, I’m Jenna and I’ve been designing and DIY’ing my way through homes since 2008. Join me as I learn, share my experience, and hopefully encourage/inspire you along the way!

JOIN THE FUN

  • Email
  • Facebook
  • Instagram
  • Pinterest
  • YouTube

Shop MY HOMES

  • Heights House
  • Riverside Retreat
  • Cottage House Flip
  • Modern Farmhouse

Shop MY AMAZON

As an Amazon Associate I earn
from qualifying purchases

Recent Posts

  • 10 Simple Ideas to Update your Kitchen Cabinets
  • Mother’s Day Gift Guide
  • All the tiles we’re using in the Hacienda Hideaway
  • Hacienda Primary Bath Floor Tile Reveal
  • How to layer bedding like a pro
  • Budget Vanity Lighting Roundup
  • Black wood fence and DIY arbor reveal

Subscribe via email

Footer

Shop My Homes

  • Heights House
  • Riverside Retreat
  • Cottage House Flip
  • Modern Farmhouse

Connect

  • Instagram
  • Facebook
  • Pinterest
  • Youtube

Information

  • Contact
  • About Jenna Sue
  • About the Blog
  • Privacy Policy

Copyright © 2022 · Jenna Sue Design Co. · All Rights Reserved ·

SUBSCRIBE VIA EMAIL:
