DIY Square Paneled Wall Molding

July 17, 2014 | By Jenna Sue Modern Farmhouse, DIY Projects

Today we’ve got a fun tutorial for a DIY paneled wall!

diy paneled wall tutorial

Table of Contents

  • Materials
  • Tools
  • Step 1: Plan carefully
  • Step 2: Cut and attach the hardboard panels
  • Step 3: Attach the vertical boards
  • Step 4: Attach the horizontal pieces
  • Step 5: Spackle, caulk and sand
  • Step 6: Paint
  • If you like this project, check out these other DIY Wall Molding tutorials from my Project Library:

Materials

  • 1/2″ or 3/4″ MDF (you can use finish trim boards, or cut 4×8′ sheets into strips to save $)
  • Smooth hardboard (if your walls are textured)
  • Finish nails (16ga or 18ga is fine)
  • Caulk
  • Spackle
  • Paint

Tools

  • Miter saw
  • Table saw (or circle saw, or jigsaw)
  • Nail gun
  • Level

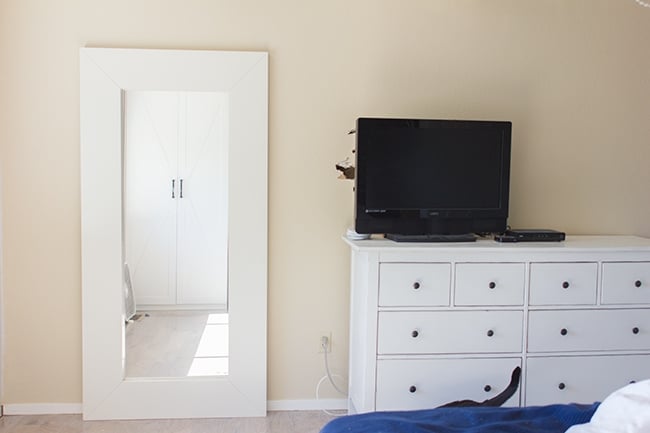

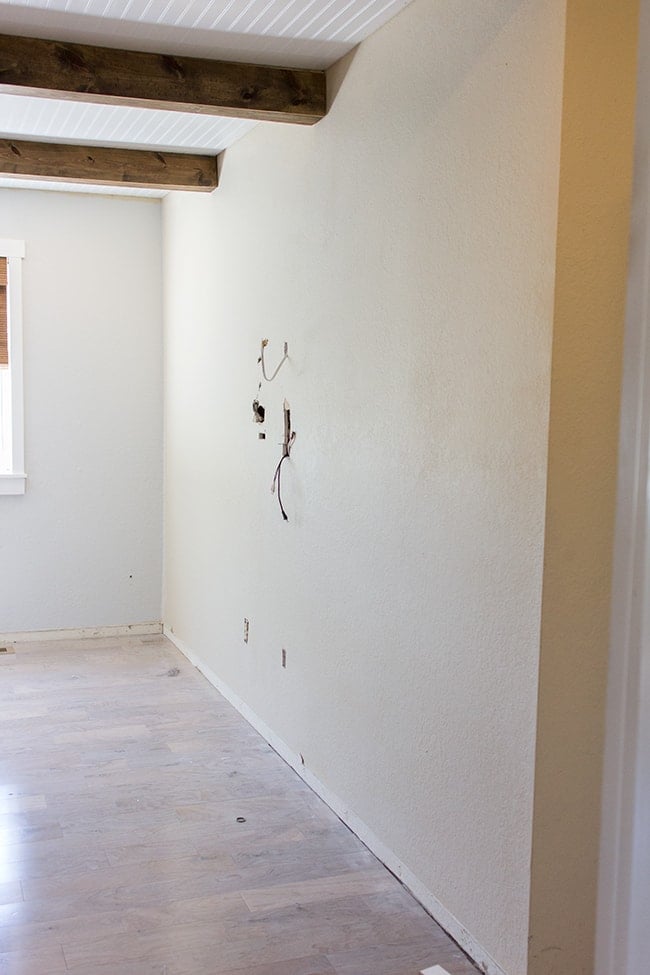

Let’s get to the details. Here was the wall before.

white ikea hemnes dresser

When you walk into the room it’s on your right (across from the bed wall).

white ikea hemnes dresser

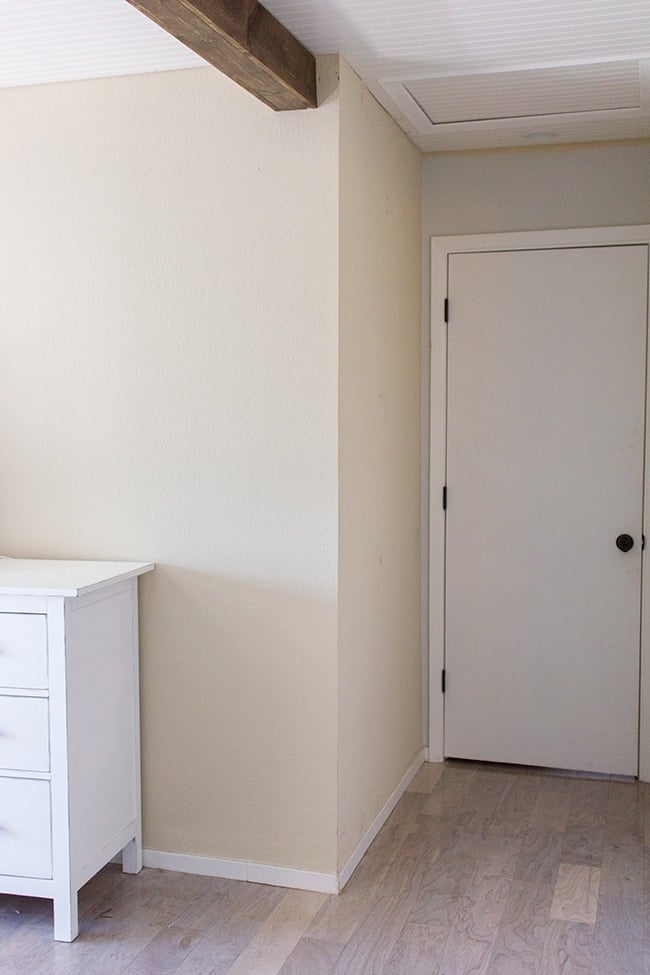

There’s a little entryway that I included in this project…

Here’s the view from our bed.

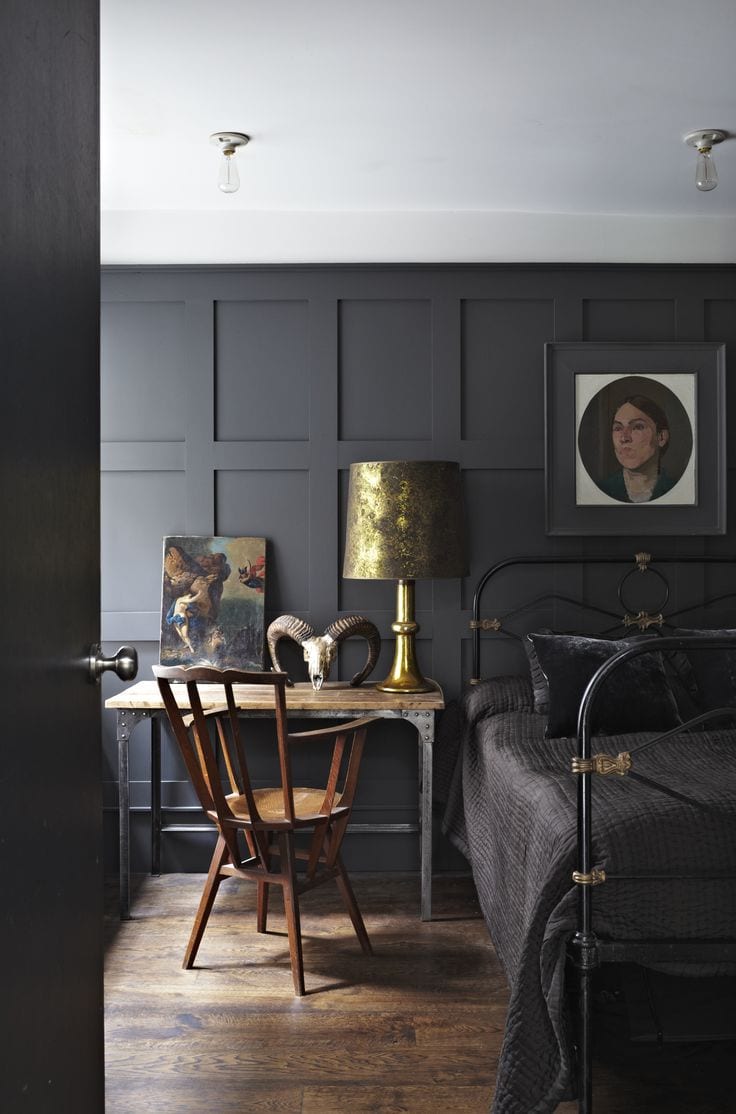

Here was my inspiration:

Source

So rich and interesting and sophisticated. And seemed easy enough to pull off.

In order to achieve this look, I needed a completely smooth base so our very textured walls had to go. The easiest and most inexpensive way I’ve found to do this to cover them with thin sheets (0.11″ thick) of this hardboard. They’re only $9 for a 4×8′ sheet… so cheap!

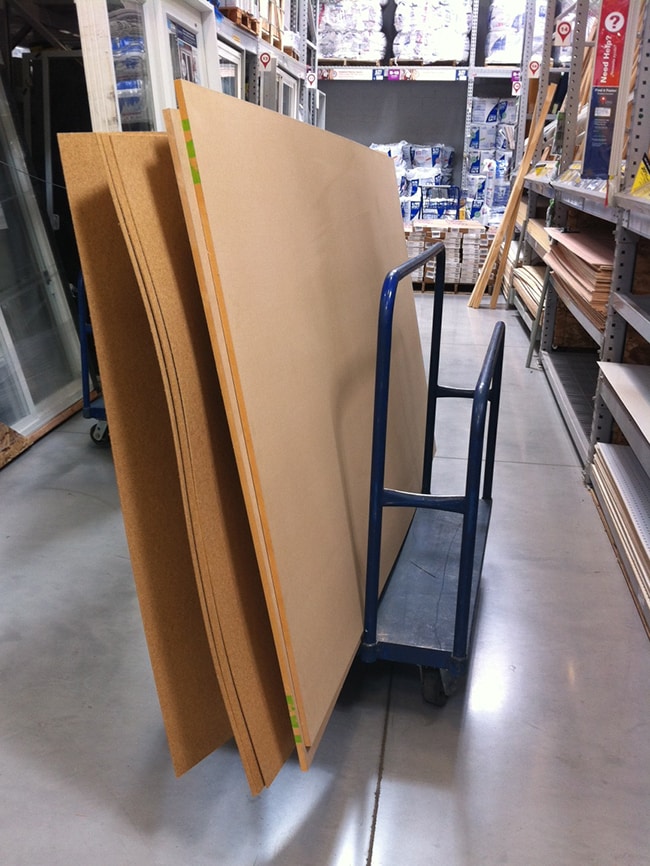

I picked up four of those sheets, plus two 4×8′ 1/2″ thick MDF panels to rip down for the strips. This saves money, but you can save a lot of time and ease by buying pre-primed MDF boards instead (looking back now, I would definitely recommend this!)

MDF sheets from lowes

Step 1: Plan carefully

The most important part of this project is planning. Seriously—you have to be thorough and meticulous. Before I bought anything, I laid it all out on my computer to scale and this is what I came up with.

layout for a diy paneled wall

The second section on the top right is the smaller/entry wall. The two rectangles at the bottom are how I’d cut my MDF sheets, and they are color coded to make sure there was enough to cover both walls. Everything fit nicely onto two sheets and I even had some leftover.

I made the top horizontal piece 1.75″ taller, because that’s the height of the crown molding I’ll be running along the top—that way all the visible strips will be the same thickness.

The vertical gaps were consistent all the way around, but since the entry wall is narrower, the horizontal gap was smaller—not a big deal at all.

I also planned out the particleboard sheets to make sure I had enough:

layout for a diy paneled wall

I already had piece of material leftover from our window trim project, so I just needed four more to fill the rest. Perfect.

The total came to just under $95 (after my 5% Lowe’s credit card discount) which I think is pretty amazing. The only other items needed were caulk, spackle, and paint (and of course nails and a nail gun) which I had so this project is a huge bang for your buck.

Step 2: Cut and attach the hardboard panels

After clearing everything out, we first had to address our TV situation. A few weeks back we had an electrician relocate the cable, hence the holes in the wall (it was coming out of the window wall on the left from outside and ran across the floor… no bueno).

We had debated on keeping the TV on our dresser or wall mounting it, and decided to go ahead and wall mount it to get all the wires and cables out of sight, free up dresser space, and for an all around cleaner look.

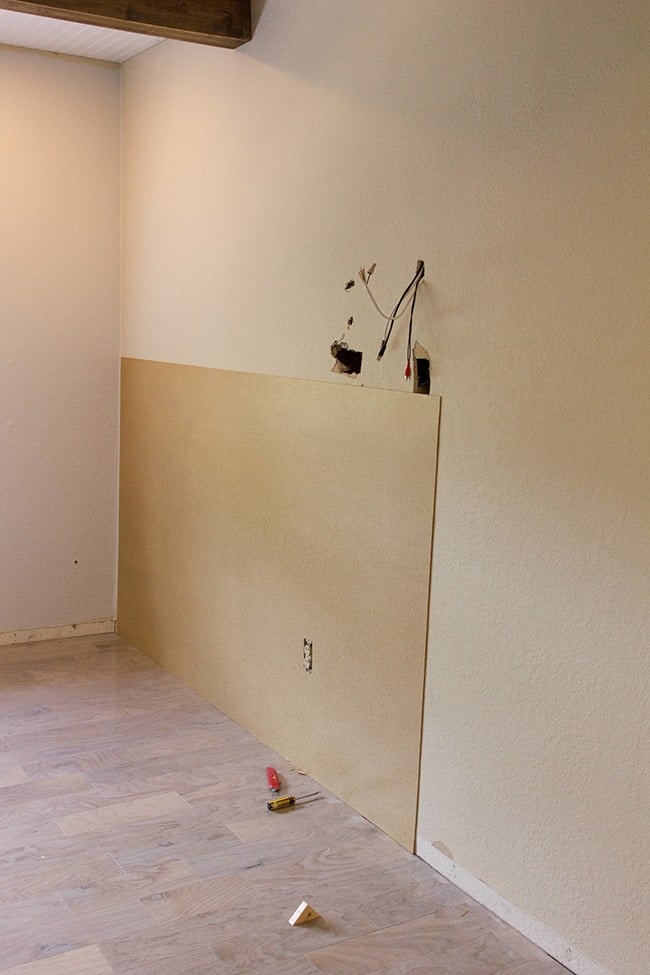

We trimmed the first panel according to my diagram with a table saw (after measuring and cutting a hole for the outlet with my jigsaw) and nailed it into place with our brad nailer and 18ga nails (no liquid nails). Make sure to nail these boards to the studs.

smooth hardboard sheet on a wall

At some point I double checked my measurements and realized I made a critical error which left me with a large gap that wouldn’t be covered by the vertical board (this is the setback I talked about Monday).

So, I had to scrap the board and run to Lowe’s the next day for a replacement piece. But we forged on with the rest of the installation…

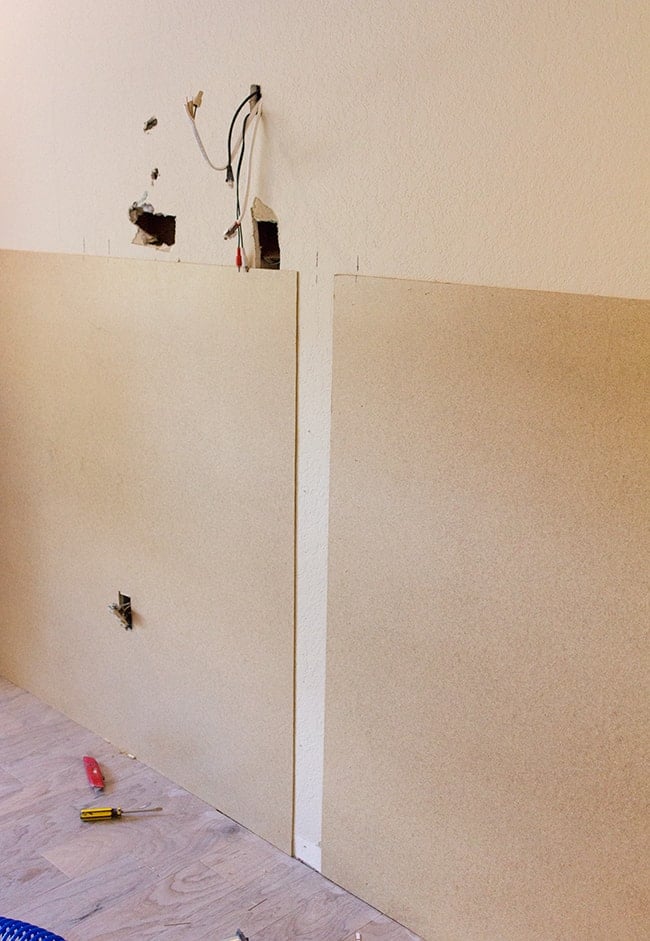

Installing the paenling was actually the biggest challenge in this entire project. Working with
4×8′ sheets of anything is not fun (as learned in our ceiling beadboard attempt… aka the most miserable DIY project in history)

It’s a challenge because you have to make sure it’s completely flat up against the wall, and you secure it to the wall in a specific pattern so no air bubbles can get trapped… all while holding it steady up next to the other piece.

covering textured walls with hardboard panels

And because walls and floors aren’t straight, your panels won’t line up exactly in some places but that didn’t matter at all since the seams would be hidden by the MDF boards.

We also had to cut around the beams which got a little tricky at times, since they aren’t perfectly straight. But I got it close enough to where you can’t really tell.

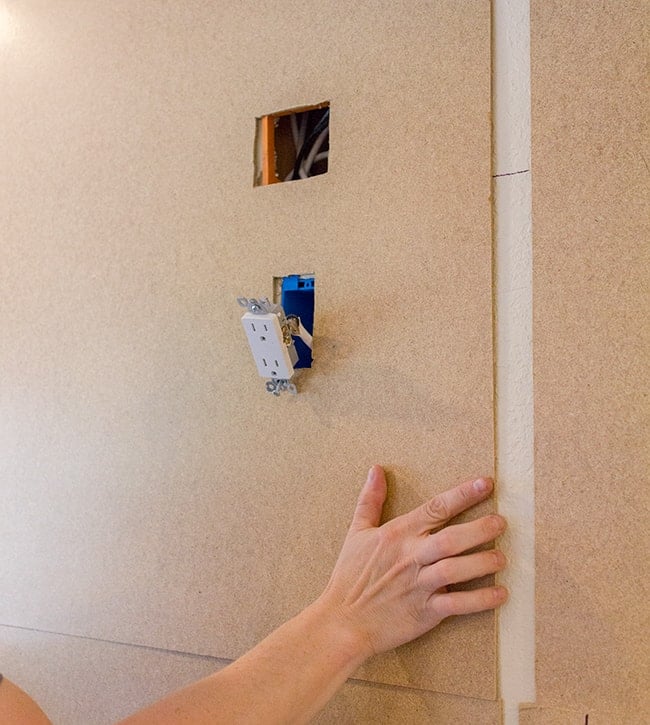

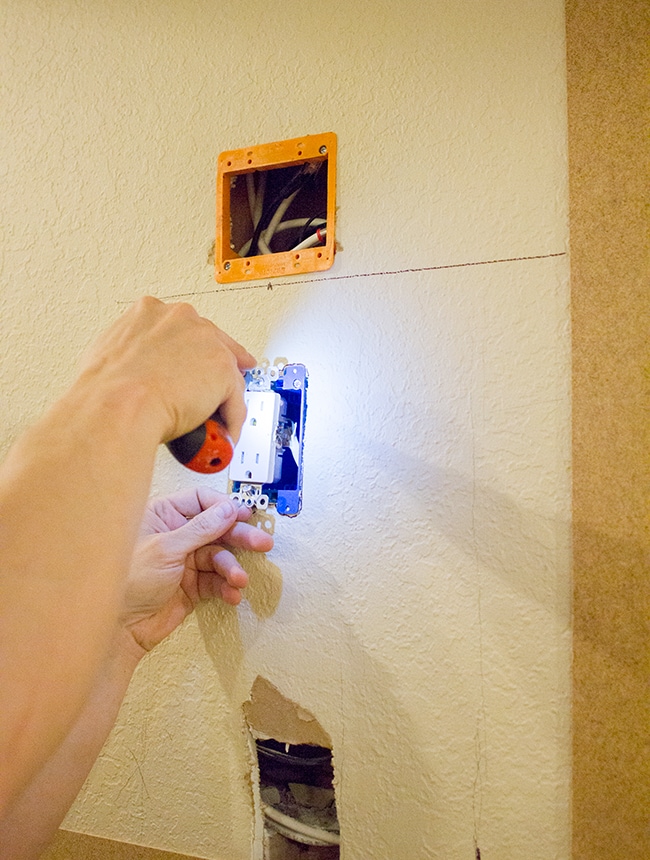

Before putting up the last board, we installed these outlet housings for behind the TV.

Then the fun part, trying to cut the panel so it lines up perfectly with both holes and the beam and other panels.

To make life easier, we cut that panel down into a narrower strip (which would be covered on both ends by MDF boards).

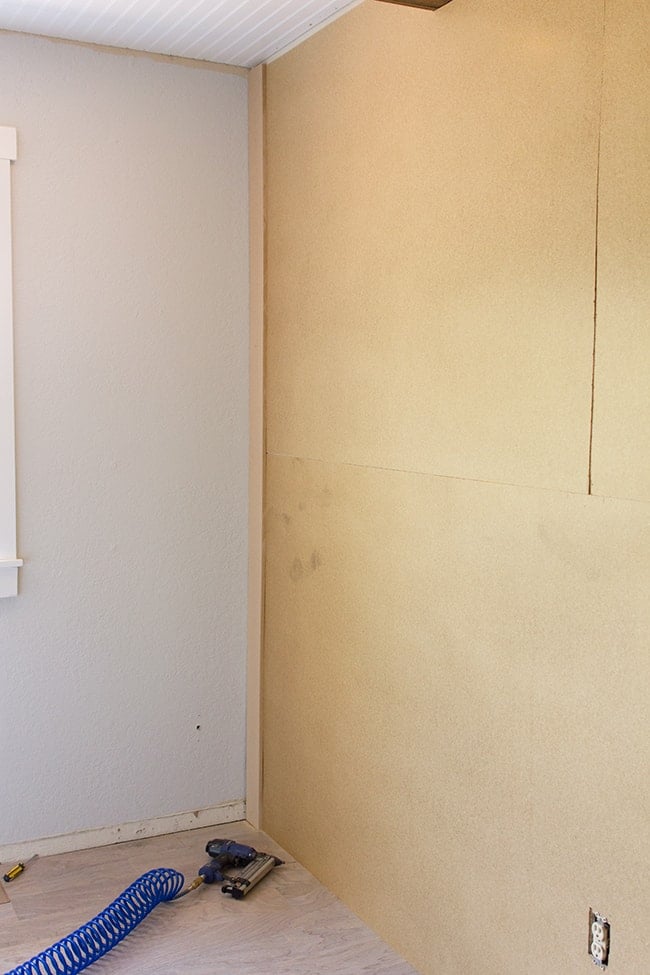

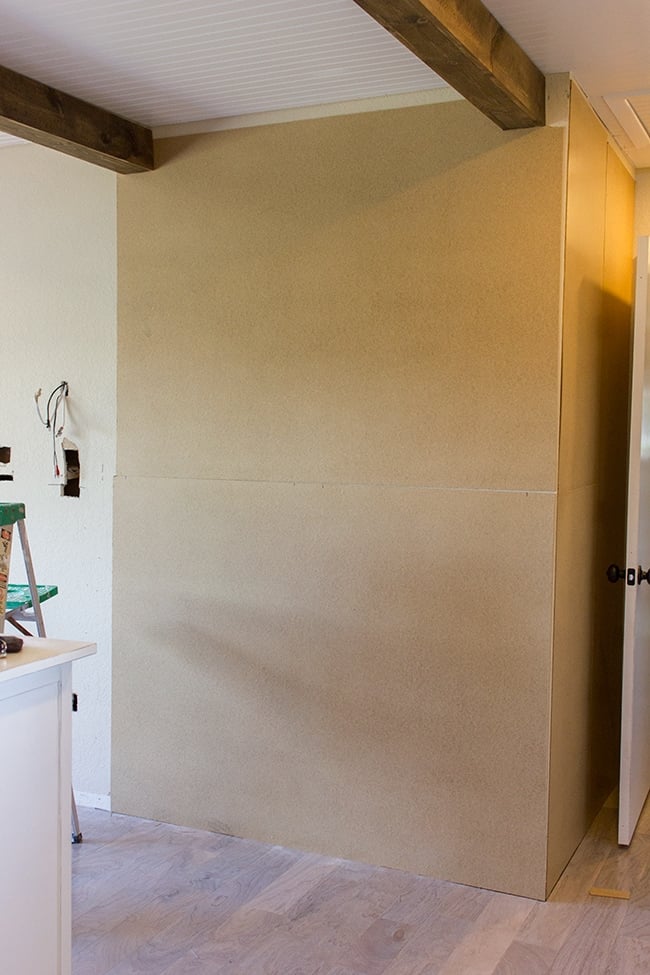

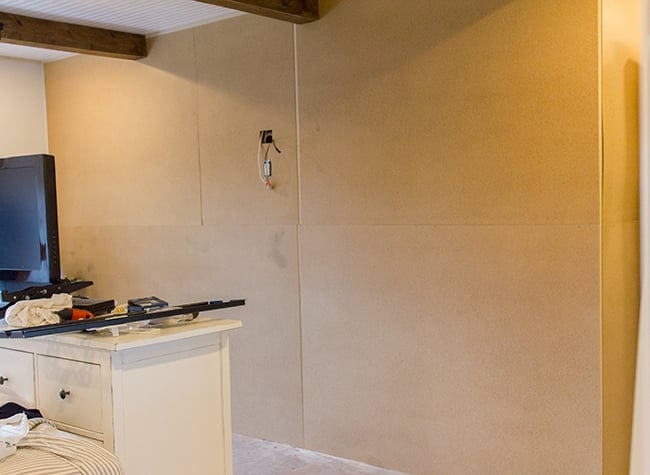

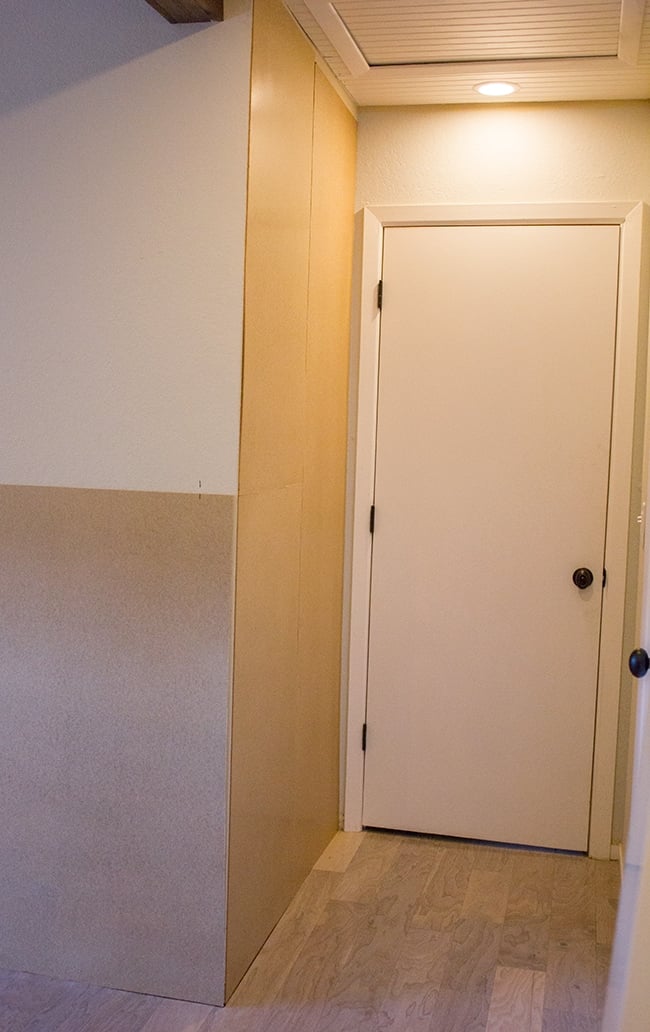

And finally, after 2 days, Phase 1 was complete.

covering textured walls with smooth hardboard

Step 3: Attach the vertical boards

Fortunately it only got easier from there. After ripping down our boards into 4″ strips (and two into 5.75″ for along the ceiling), it was onto the next phase.

Before installation, I lightly sanded the edges to make sure everything was nice and smooth. Then I just nailed it up… super easy! You’ll want to make sure your nails are long enough to go through the MDF, hardboard and drywall underneath (and a stud, if you’re lucky to hit one). I’d recommend 1.75″-2″ nails.

diy paneled wall installation

I measured and marked where my next board would go, and used a level to ensure it was straight.

A couple of them ran into beams, which I notched out using a combination of a miter saw and jigsaw.

Since most of the boards likely won’t hit studs, one trick I learned is to nail them in at alternating angles, which creates more leverage so they’ll ‘grab’ onto the drywall better.

diy paneled wall installation how to

Step 4: Attach the horizontal pieces

After the vertical pieces were in, I started with the horizontals, making sure to measure for each gap as they all varied slightly.

diy paneled wall installation tutorial

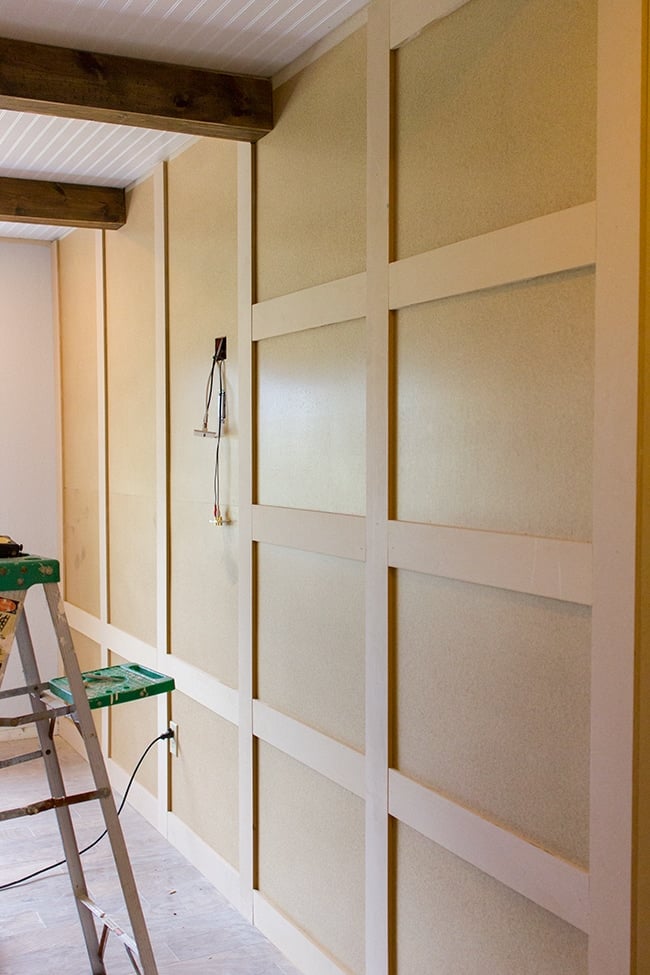

This part was simple too. You just have to take your time and measure carefully. I found they stayed put just fine without hitting studs, but you could always add liquid nails to be extra safe.

diy paneled wall installation tutorial

This is the fun part, when you start to see your vision come to life.

diy paneled wall installation tutorial

There was only one roadblock here… cutting around an outlet. I used my jigsaw—it would be completely hidden behind the TV so it didn’t really matter.

diy paneled wall installation tutorial

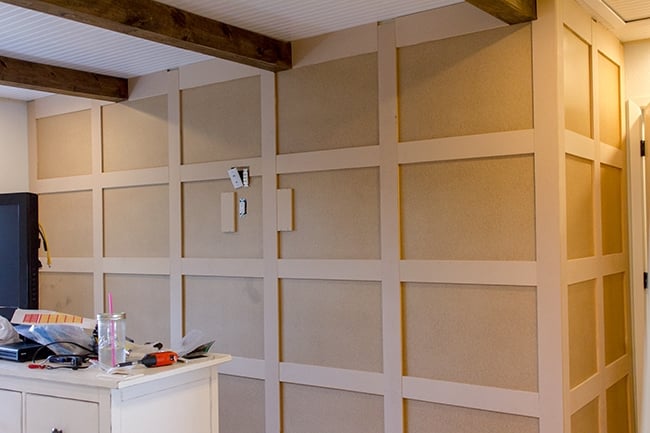

I later added a couple blocks over the studs where the TV mount would secure to (this will all be hidden, don’t worry).

diy paneled wall installation tutorial

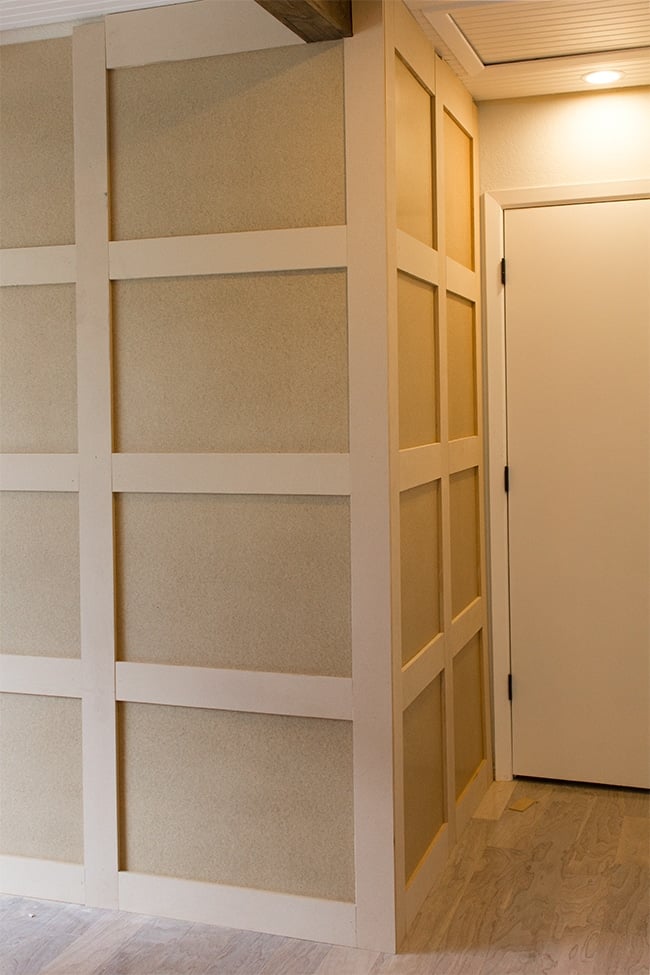

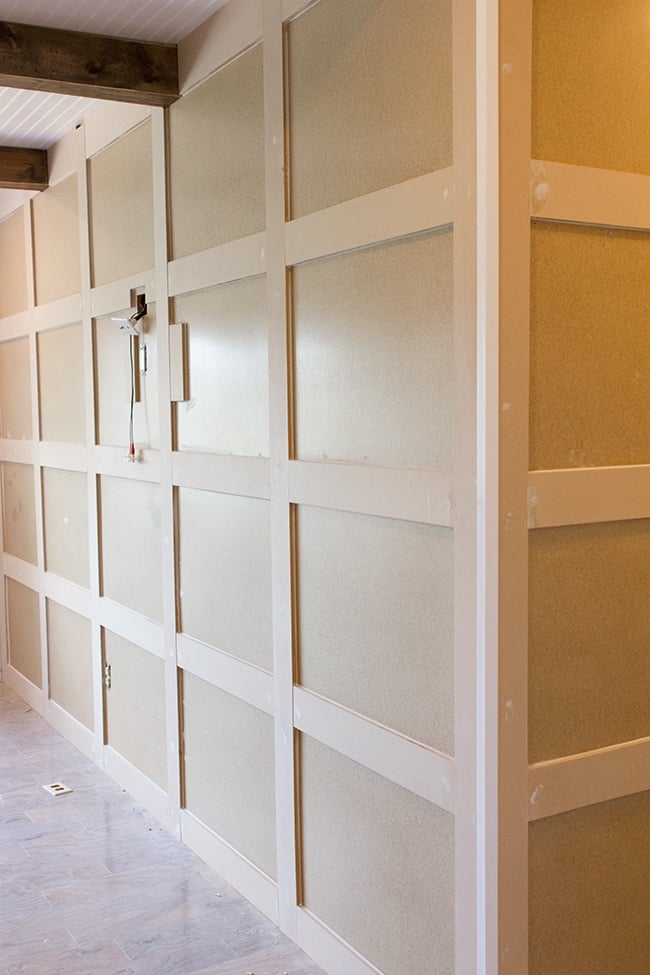

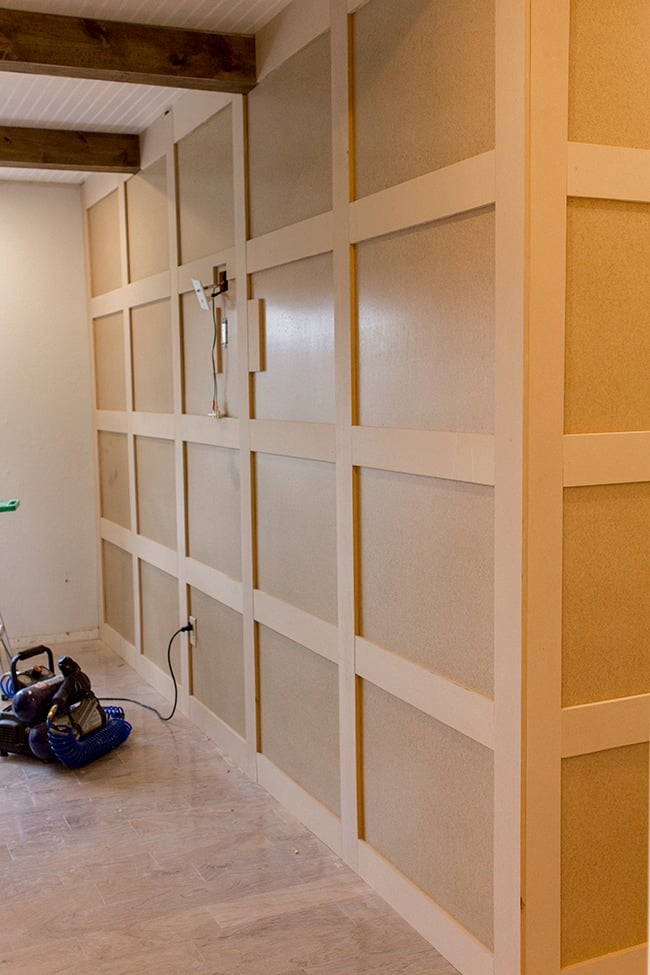

About four hours later, all the boards were up (this was just me, so with two people it could go a lot faster).

diy paneled wall installation tutorial
diy paneled wall installation tutorial

To finish the corners, I added a 90° edge piece to hide the seam (if you’re a more advanced DIYer, you could bevel cut the boards with a table saw and miter the edges together).

diy paneled wall installation tutorial

Step 5: Spackle, caulk and sand

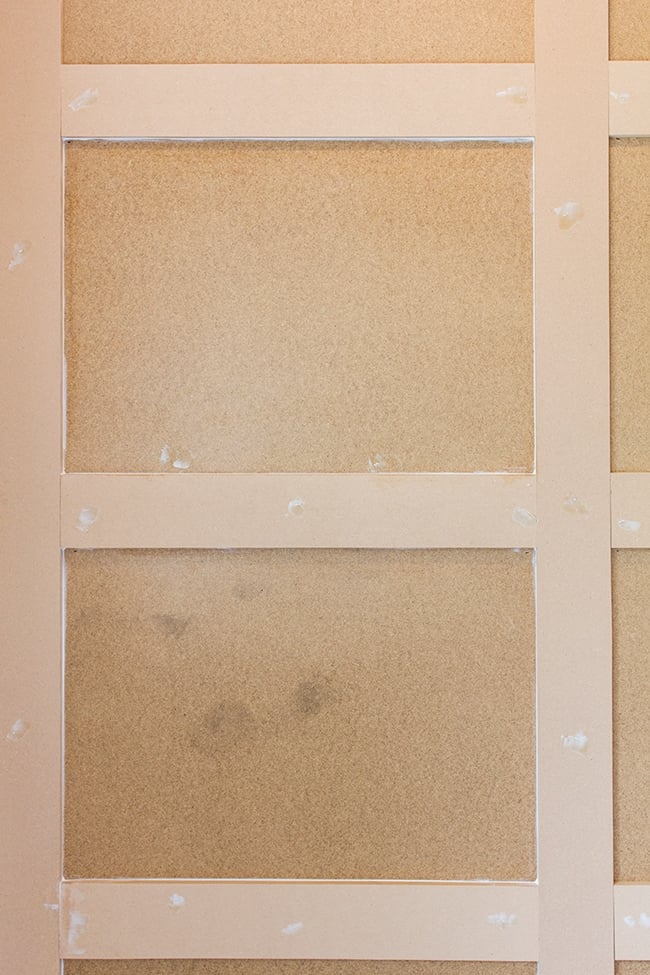

This part was actually not nearly as time consuming as I anticipated.

diy paneled wall installation tutorial

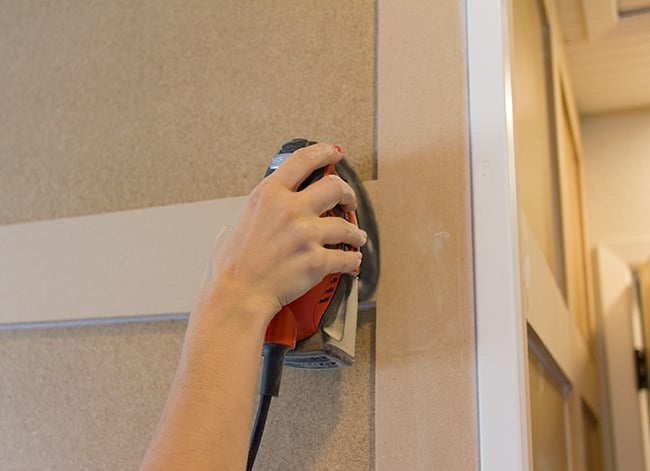

I used fast drying caulk so I could paint the same day, and used my Mouse hand sander with 240 grit sandpaper to smooth out the dried spackle.

Step 6: Paint

Update several years later: In hindsight, I would strongly recommend using an oil-based primer first. The raw/cut edges of the MDF soak up water based paint and give it a noticeably rough texture (another reason why you should just buy MDF trim boards!)

Priming first is certainly more work, but will give you the most even finish and professional looking results.

diy paneled wall installation tutorial

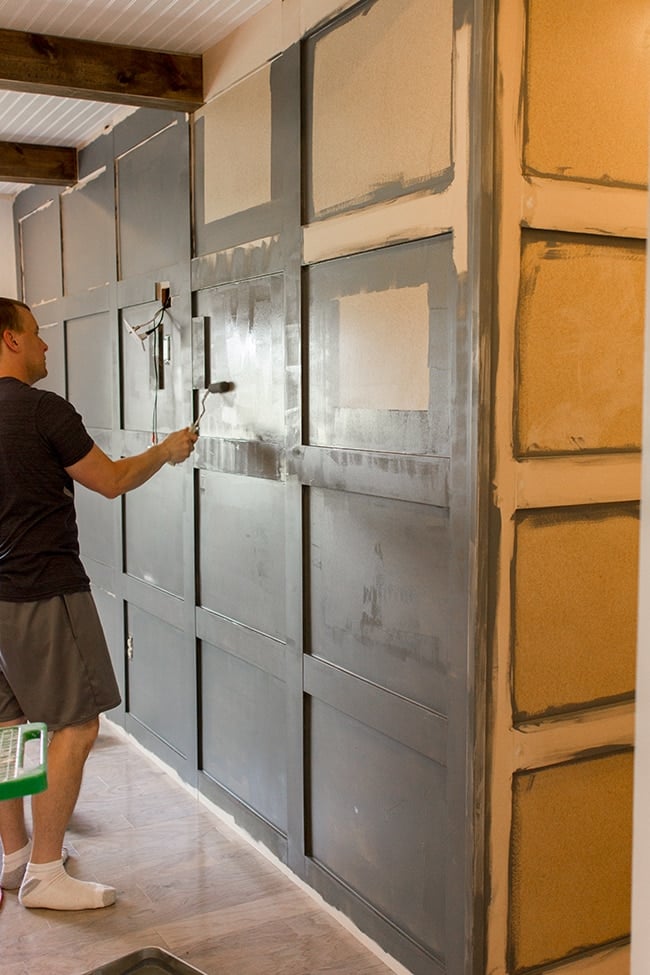

Having an awesome short handled angled brush is my best advice—so much easier and faster than using painters tape along the edges. I would also recommend using a velour roller brush for the smoothest results possible.

diy paneled wall installation tutorial

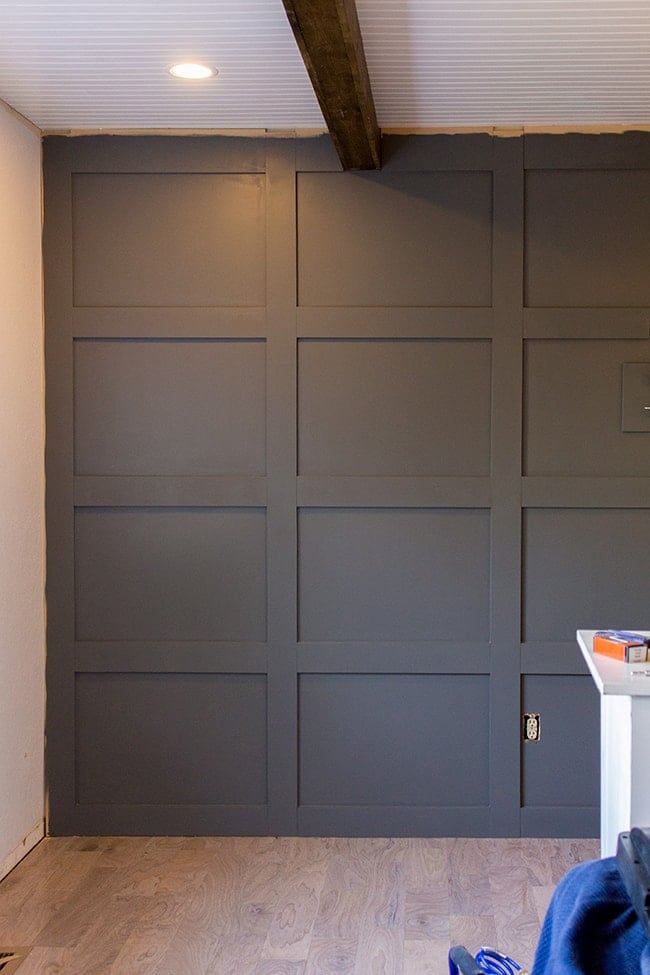

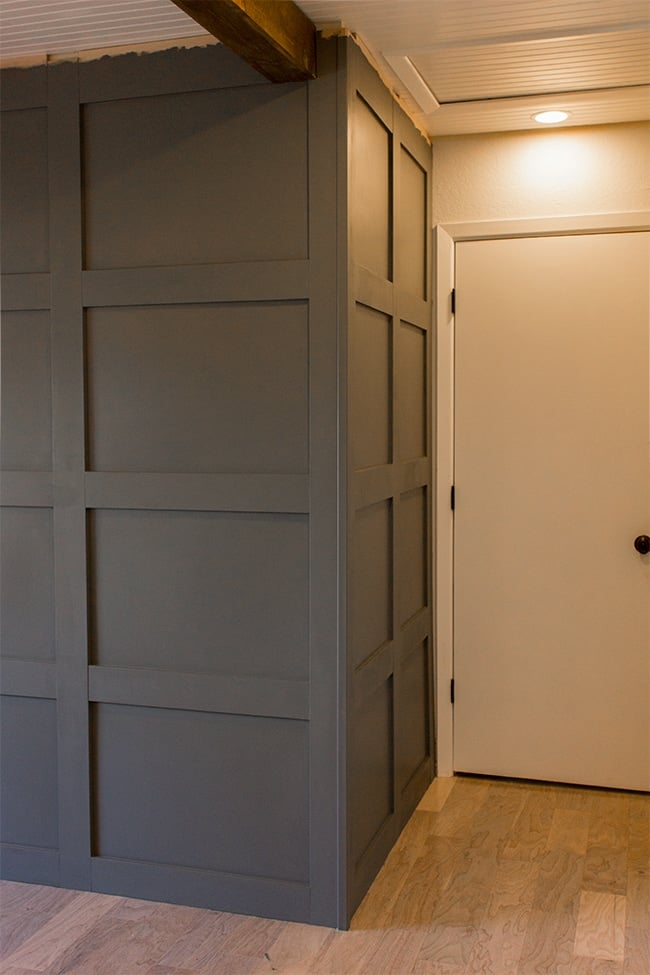

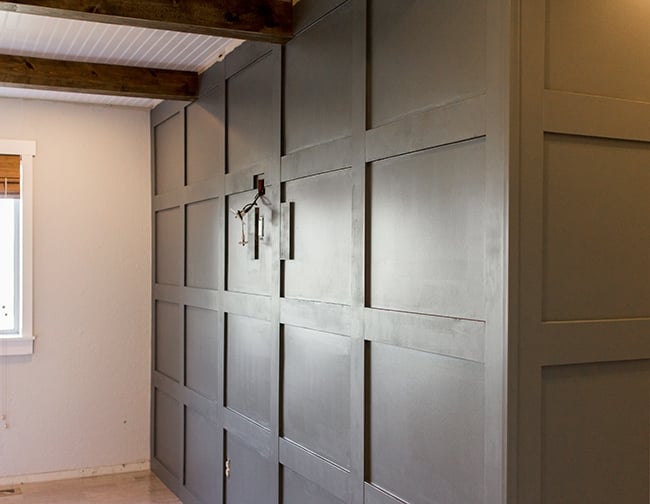

I used the same paint from the plank wall behind the bed (and in the studio)—Valspar’s Ocean Storm in an eggshell finish. A couple hours later, our wall was complete.

diy square panel molding wall painted Valspar Ocean Storm
diy square panel molding wall painted Valspar Ocean Storm

The visible roller marks do fade a bit over time, but if you aren’t spraying the wall, I would also avoid using a foam roller like we did (which shows roller marks) and get this one instead!

diy square panel molding wall painted Valspar Ocean Storm
diy square panel molding wall painted Valspar Ocean Storm

Now, all that’s left to do is swap out that old outlet, add quarter round in the corner, and crown molding. This weekend I actually plan to trim out the entire room (finally), including baseboard, quarter round in a few places and crown molding. It’s going to look so nice and finished… I can’t wait.

diy square panel molding wall painted Valspar Ocean Storm

We’ve already mounted the TV and tonight we’ll bring in our new dresser and start setting up that wall. Our rug is also here so that will be set up this weekend as well. Lots to look forward to on Monday!
